Figure 2-4 shows the directories that are created when Windows Datareplicator is installed, and Table 2-14 shows the file contents. These directories are the same for both the source and target Datareplicators.

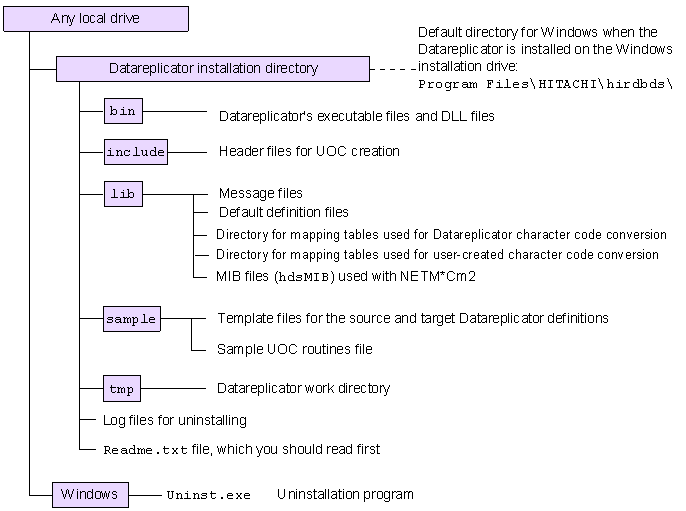

Figure 2-4 Directories and files associated with Datareplicator

Table 2-14 Contents of directories and files created when Datareplicator is installed

Creation time	Directory and filename	Description
Installation	\bin\	Directory containing the Datareplicator's commands
	\include\	Header files for UOC creation
	\lib\	Datareplicator's shared libraries and message files
	\lib\maptable\	Directory for mapping tables used for Datareplicator character code conversion
	\lib\usermap\	Directory for mapping tables used for user-created character code conversion
	\lib\hdsMIB	MIB file used with JP1/Cm2#1
	\sample\	Sample Datareplicator definition and UOC#2
	\tmp\	Datareplicator's work directory

#1: This file is applicable when JP1/Cm2 is used to operate and manage Datareplicator. For details about how to use JP1/Cm2 for operations management, see 3.4 Using JP1/Cm2 for operations management.

#2: For details about the filenames for the Datareplicator definition template, see 5.13.2 Examples of source Datareplicator definitions or 5.13.3 Examples of target Datareplicator definitions; for details about the filenames for the sample UOC routines, see 8.1.7 Sample import information editing UOC routine, 8.2.6 Sample column data editing UOC routine, and 8.3.6 Sample send data UOC routine.
