The following figure shows the software configuration for linking data from a mainframe database (PDMII E2 or RDB1 E2) to a HiRDB using a SAM file.

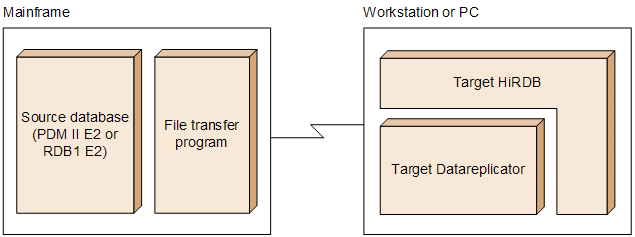

Figure 1-17 Software configuration for linking data from a mainframe database to a HiRDB using a SAM file
![[Figure]](FIGURE/RZ01S170.GIF)
The following correspondences between the source and target systems apply to linking data from a mainframe database to a HiRDB using a SAM file:
The following figure shows the configurations of the source and target systems for linking data from a mainframe database (PDMII E2 or RDB1 E2) to a HiRDB using a SAM file.

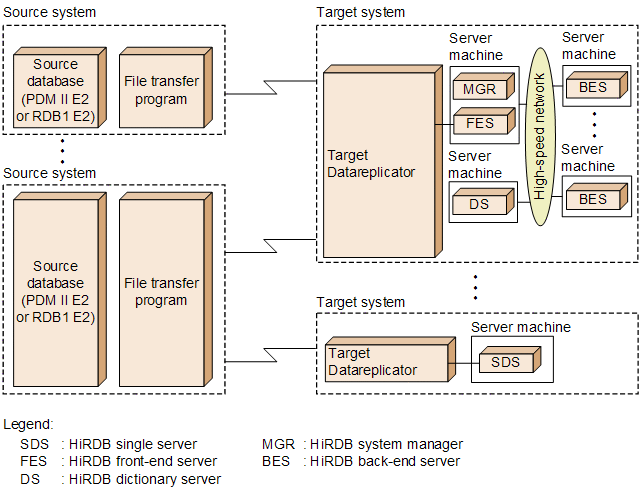

Figure 1-18 Configurations of the source and target systems for linking data from a mainframe database to a HiRDB using a SAM file
![[Figure]](FIGURE/RZ01S180.GIF)
