Examples

Example 1

This example adds an RDAREA (user03) to a table (reb_table) in a HiRDB/Single Server and executes the rebalancing utility in the shared mode.

Table definition:

CREATE TABLE reb_table(hkeys INT NOT NULL,names CHAR(30))
    FIX HASH HASHA BY hkeys IN (user01,user02)

Index definition:

CREATE INDEX idx1 ON reb_table(hkeys) IN ((idx01),(idx02))

Adding an RDAREA with ALTER TABLE

ALTER TABLE reb_table ADD RDAREA user03 FOR INDEX idx1 in idx03

Explanation:: This statement adds RDAREA user03 to table reb_table. It also adds RDAREA idx03 to index idx1.

pdrbal command

pdrbal -k share -t reb_table c:\hirdb\pdrbal\control_file

Explanation:: -k share: Operation mode (shared mode); -t reb_table: Name of the rebalancing table; c:\hirdb\pdrbal\control_file: Control information file

Contents of the control information file (c:\hirdb\pdrbal\control_file)

execstop time,9:00 1
report c:\hirdb\pdrbal\rest_file 2

Explanation:

Terminates pdrbal nine hours later.
Outputs the execution result of pdrbal to the process results file (c:\hirdb\pdrbal\rest_file).

Example 2

This example adds an RDAREA (user03) to a table (sgml_table) in a HiRDB/Single Server and executes the rebalancing utility in the shared mode. The sgml_table table contains the columns of abstract data type provided by a plug-in.

Table definition:

CREATE TABLE sgml_table (
    hkeys INT NOT NULL,
    doctext SGMLTEXT ALLOCATE (sgmltext IN ((LOB1D),
                              (LOB2D)))
    PLUGIN '<DTD>NEWSPAPER</DTD><EXTRACTparm>extract.prm
                     </EXTRACTparm>'
    )
    FIX HASH HASHA BY hkeys IN (user01,user02)

Index definition:

CREATE INDEX idx1 ON sgml_table(hkeys) IN ((idx01),(idx02))
CREATE INDEX ngram_index USING TYPE MASTER.NGRAM on sgml_table(doctext)
    in ((LOB1I),(LOB2I))

Adding an RDAREA with ALTER TABLE


ALTER TABLE sgml_table ADD RDAREA user03
   FOR COLUMN doctext ALLOCATE(sgmltext IN LOB3D)
   FOR INDEX idx1 in idx03,ngram_index in LOB3I

Explanation:: This statement adds RDAREA user03 to table sgml_table. It also adds RDAREA idx03 to index idx1 and RDAREA LOB3I to plug-in index ngram_index.

pdrbal command


pdrbal -k share -t sgml_table c:\hirdb\pdrbal\control_file

Explanation:: -k share: Operation mode (shared mode); -t sgml_table: Name of the rebalancing table; c:\hirdb\pdrbal\control_file: Control information file

Contents of the control information file (c:\hirdb\pdrbal\control_file)

execstop time,12:00 1
unld_func type=sgmltext,func=unsgmltext(sgmltext) 2
reld_func type=sgmltext,func=sgmltext(blob) 3
report c:\hirdb\pdrbal\rest_file 4

Explanation:

Terminates pdrbal 12 hours later.
Specifies a constructor parameter reverse creation function.
sgmltext: Name of the abstract data type
unsgmltext: Name of the constructor parameter reverse creation function
sgmltext: Type of argument
Specifies a constructor function.
sgmltext: Name of the abstract data type
sgmltext: Name of the constructor function
blob: Type of argument
Outputs the execution result of pdrbal to the process results file (c:\hirdb\pdrbal\rest_file).

Example 3

This example adds an RDAREA (user03) to a table (reb_table) in a HiRDB/Single Server and executes the rebalancing utility in the exclusive mode.

Table definition:

CREATE TABLE reb_table(hkeys INT NOT NULL,names CHAR(30))
    FIX HASH HASHA BY hkeys IN (user01,user02)

Index definition:

CREATE INDEX idx1 ON reb_table(hkeys) IN ((idx01),(idx02))

Adding an RDAREA with ALTER TABLE


ALTER TABLE reb_table ADD RDAREA user03 FOR INDEX idx1 in idx03

Explanation:: This statement adds RDAREA user03 to table reb_table. It also adds RDAREA idx03 to index idx1.

pdrbal command


pdrbal -k exclusive -t reb_table -l n c:\hirdb\pdrbal\control_file

Explanation:: -k exclusive: Operation mode (exclusive mode); -t reb_table: Name of the rebalancing table; -l n: no-log mode; c:\hirdb\pdrbal\control_file: Control information file

Contents of the control information file (c:\hirdb\pdrbal\control_file)


idxwork c:\hirdb\pdrbal\idxwork1   1
sort c:\hirdb\pdrbal\sortwork   2
report c:\hirdb\pdrbal\rest_file   3

Explanation:

Specifies a directory for index information files (c:\hirdb\pdrbal\idxwork1).
Specifies a work directory for sorting (c:\hirdb\pdrbal\sortwork).
Outputs the execution result of pdrbal to the process results file (c:\hirdb\pdrbal\rest_file).

Example 4

This example adds an RDAREA (user03) to a table (reb_table) in a HiRDB/Parallel Server and executes the rebalancing utility in the exclusive mode.

Table definition:

CREATE TABLE reb_table(hkeys INT NOT NULL,names CHAR(30))
    FIX HASH HASHA BY hkeys IN (user01,user02)

Index definition:

CREATE INDEX idx1 ON reb_table(hkeys) IN ((idx01),(idx02))

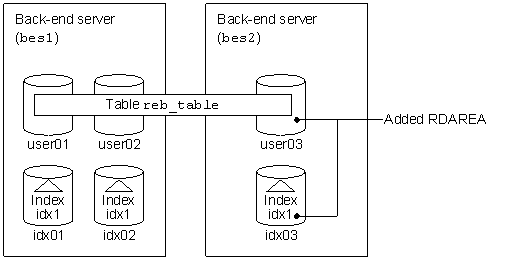

Relationship among servers, RDAREAs, table, and index

Adding an RDAREA with ALTER TABLE


ALTER TABLE reb_table ADD RDAREA user03 FOR INDEX idx1 in idx03

Explanation:: This statement adds RDAREA user03 to table reb_table. It also adds RDAREA idx03 to index idx1.

pdrbal command


pdrbal -k exclusive -t reb_table -l n c:\hirdb\pdrbal\control_file

Explanation:

-k exclusive: Operation mode (exclusive mode)

-t reb_table: Name of the rebalancing table

-l n: no-log mode

c:\hirdb\pdrbal\control_file: Control information file

Contents of the control information file (c:\hirdb\pdrbal\control_file)


idxwork bes2 c:\hirdb\pdrbal\idxwork_bes2    1
sort bes2 c:\hirdb\pdrbal\sortwork_bes2    2
report c:\hirdb\pdrbal\rest_file    3

Explanation:

Specifies a directory for index information files (c:\hirdb\pdrbal\idxwork_bes2) at the bes2 back-end server.
Specifies a work directory for sorting (c:\hirdb\pdrbal\sortwork_bes2) at the bes2 back-end server.
Outputs the execution result of pdrbal to the process results file (c:\hirdb\pdrbal\rest_file).
