Examples 1-4 show examples of the use of the dictionary import/export utility.

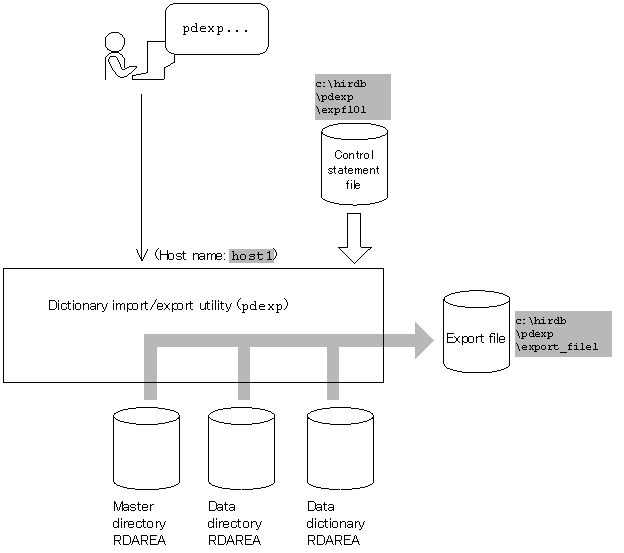

Example 1

Export the definition information for the following tables (schema name: USER01):

• TABLE1
• TABLE2

Overview

Command execution


 pdexp -e host1:c:\hirdb\pdexp\export_file1
       -f c:\hirdb\pdexp\expfl01


Explanation:

Name of export file: host1:c:\hirdb\pdexp\export_file1

Name of control statement file: c:\hirdb\pdexp\expfl01

Contents of control statement file (c:\hirdb\pdexp\expfl01)

-t USER01.TABLE1 -t USER01.TABLE2

Explanation:

Name of table to which table definition information will be exported: USER01.TABLE1

Name of table to which table definition information will be exported: USER01.TABLE2

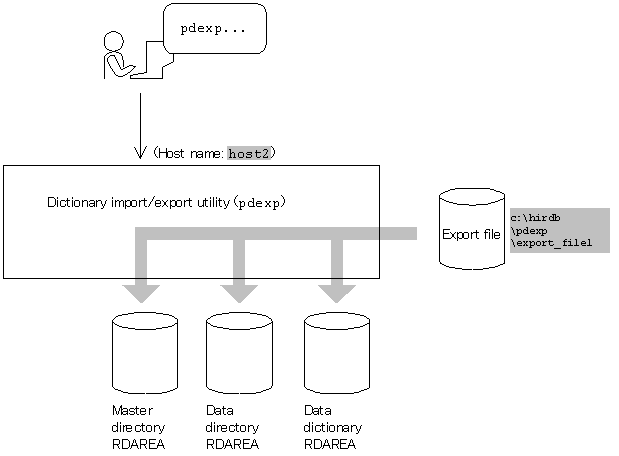

Example 2

Import all table definition information in an export file.

Overview

Command execution

pdexp -i host2:c:\hirdb\pdexp\export_file1

Explanation:

Name of export file: c:\hirdb\pdexp\export_file1

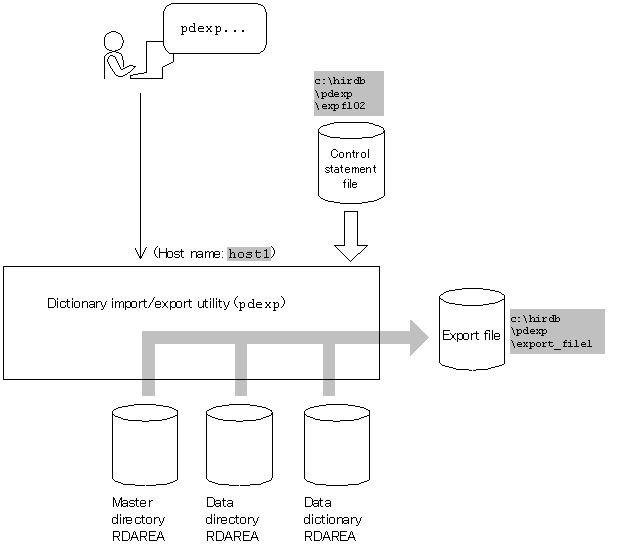

Example 3

This example exports definition information about the following stored procedures (schema name: USER01):

• proc1
• proc2

Overview

Command execution

pdexp -e host1:c:\hirdb\pdexp\export_file1 -f c:\hirdb\pdexp\expfl02

Explanation:

Export file: host1:c:\hirdb\pdexp\export_file1

Control statement file: c:\hirdb\pdexp\expfl01

Contents of the control statement file (c:\hirdb\pdexp\expfl01)

-p USER01.PROC1 -p USER01.PROC2

Explanation:

Name of the routine that exports definition information about the stored procedure: USER01.PROC1

Name of the routine that exports definition information about the stored procedure: USER01.PROC2

Example 4

This example imports all table definition information from an export file. At the same time, it generates definition SQL statements based on the definition information obtained from the export file.

Overview

Command execution

pdexp -i host2:c:\hirdb\pdexp\export_file1 .......1 -o c:\hirdb\pdexp\defsql_file ..............2 -a .........................................3

Explanation:

1. Export file: host2:c:\hirdb\pdexp\export_file1
2. Definition SQL output file: c:\hirdb\pdexp\defsql_file
3. Simultaneous generation of import and definition SQL statements
