This section presents an example of using the database reorganization utility (reorganizing indexes).

Example 1

This example reorganizes the indexes (INDEX1 and INDEX2) defined for a table (TABLE1).

The example assumes that the following table and indexes have been defined:

• Table definition:

CREATE TABLE TABLE1(C1 INT NOT NULL,C2 CHAR(8),C3 INT)
               IN ((PDBUSER01) C1 > 10,(PDBUSER02))

• Index definition (partitioning key index):

CREATE INDEX INDEX1 ON TABLE1(C1)
               IN ((PDBUSER03),(PDBUSER05))

• Index definition (non-partitioning key index):

CREATE INDEX INDEX2 ON TABLE1(C2,C1)
               IN ((PDBUSER04),(PDBUSER06))

Overview

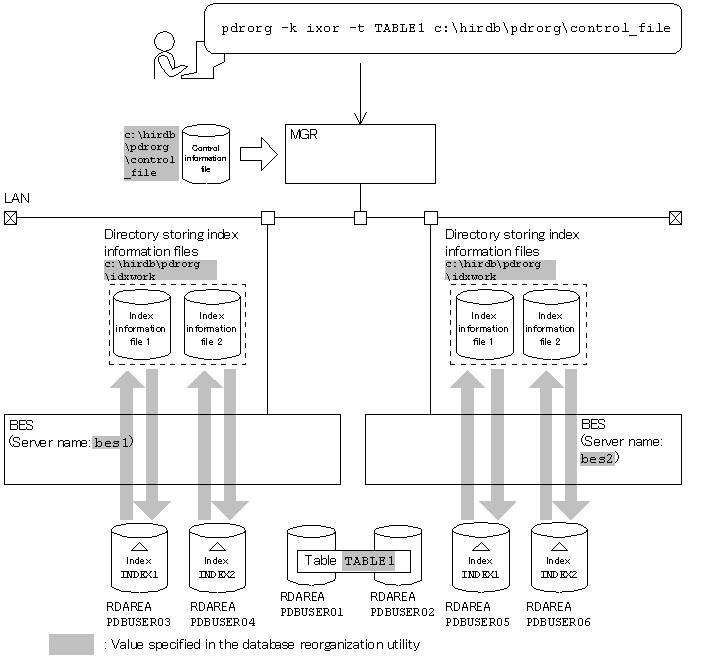

Relationship between input/output files and RDAREAs

Explanation of the command

This example reorganizes the indexes (INDEX1 and INDEX2) defined for a table (TABLE1).

-k ixor: Specification for index reorganization

-t TABLE1: Name of the table subject to index reorganization

c:\hirdb\pdrorg\control_file: Name of the control information file

Contents of the control information file (c:\hirdb\pdrorg\control_file)

idxname name=* 1 idxwork bes1 c:\hirdb\pdrorg\idx_file 2 idxwork bes2 c:\hirdb\pdrorg\idx_file 2

Explanation:

1. Specifies index reorganization in units of indexes:
   *: Specification for reorganizing all indexes defined for the table (TABLE1)

2. Specifies the directory for index information files:
   bes1, bes2: Names of the servers used to create index information
   c:\hirdb\pdrorg\idx_file: Name of the directory in which index information files are created
