Example

This section presents an example of using the database structure modification utility (changing an RDAREA from a HiRDB/Single Server structure to a HiRDB/Parallel Server structure).

Organization of this subsection: (1) Changing RDAREAs from a HiRDB/Single Server structure to a HiRDB/Parallel Server structure

This example changes the following RDAREAs from a HiRDB/Single Server structure to a HiRDB/Parallel Server structure:

PDBMAST
PDBDDIR
PDBDDIC
PDBDICL1
PDBDICL2
PDBUSER01
PDBUSER02
PDBULOB01
PDBLIST01

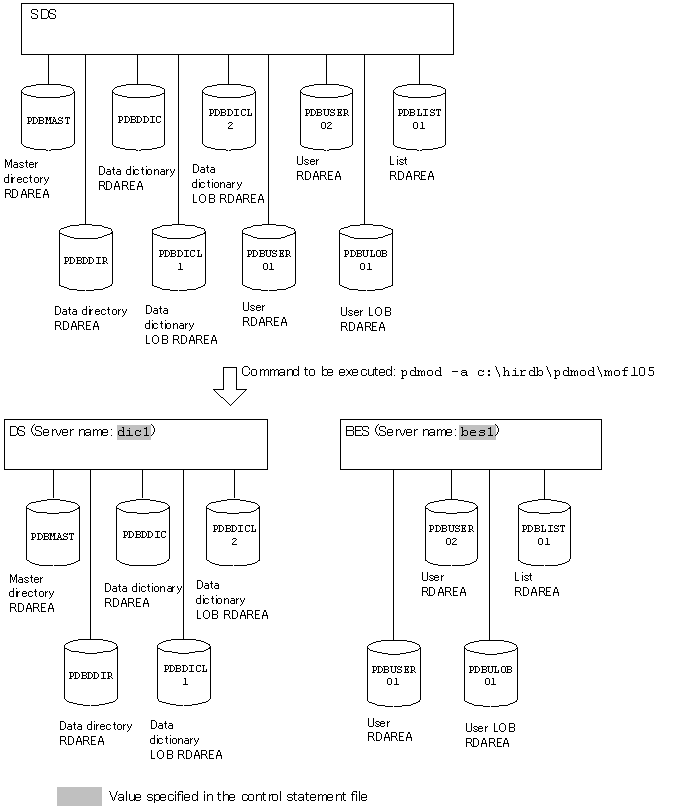

Overview

Contents of the control statement file (c:\hirdb\pdmod\mofl05)


 /* Changing RDAREAs from a HiRDB/Single Server structure to a HiRDB/Parallel Server structure */
 alter HiRDB mode to parallel
         dictionary server name dic1   ...............1
         server name bes1 others ;   .................2

Explanation

Name of the dictionary server after reconfiguration
Name of the back-end server after reconfiguration

7.10.2 Example

(1) Changing RDAREAs from a HiRDB/Single Server structure to a HiRDB/Parallel Server structure
