Example 1 shows an example of the use of the database definition utility.

Example 1

Define the following table and index:

• Table: STOCK
• Index: I1

The following RDAREAs have already been created:

• PDBUSER01
• PDBUSER02
• PDBUSER03
• PDBUSER04

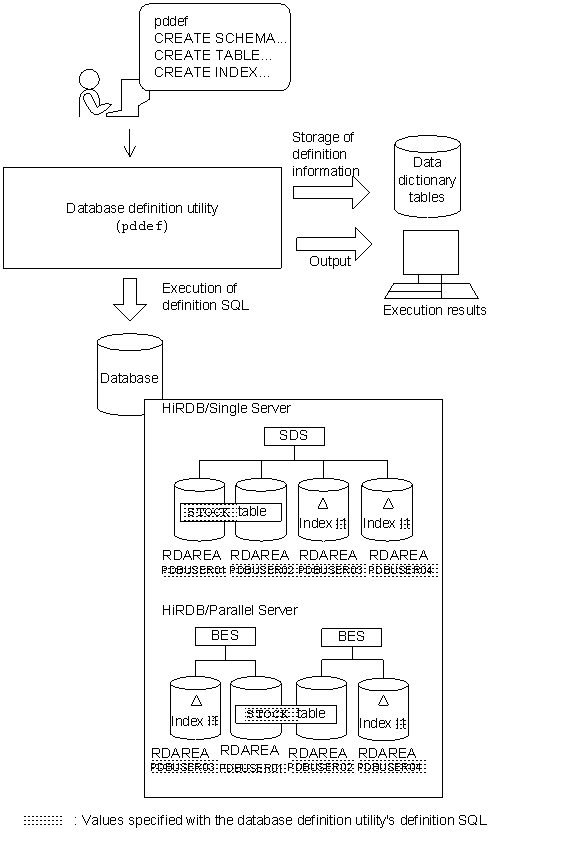

Overview

Command execution

• Entry of definition SQL from standard input


  pddef CREATE SCHEMA; 1 CREATE TABLE STOCK(PCODE CHAR(4),PNAME NCHAR(8), 2 COLOR NCHAR(1),PRICE INTEGER SQUANTITY INTEGER) IN((PDBUSER01) PCODE<'302S', (PDBUSER02) PCODE>='302S'); CREATE INDEX I1 ON STOCK(PCODE) IN ((PDBUSER03),(PDBUSER04)); 3 <End by pressing CTRL + Z, then ENTER>

Explanation

1. Definition of schema.
2. Definition of table (STOCK).
3. Definition of index (I1).

• Entry of definition SQL from input file


  pddef < c:\hirdb\pddef\crfile

Explanation

Specification of input file c:\hirdb\pddef\crfile.

Contents of input file c:\hirdb\pddef\crfile

CREATE SCHEMA; 1 CREATE TABLE STOCK(PCODE CHAR(4),PNAME NCHAR(8), 2 COLOR NCHAR(1),PRICE INTEGER SQUANTITY INTEGER) IN((PDBUSER01) PCODE<'302S', (PDBUSER02) PCODE>='302S'); CREATE INDEX I1 ON STOCK(PCODE) IN ((PDBUSER03),(PDBUSER04)); 3

Explanation

1. Definition of schema.
2. Definition of table (STOCK).
3. Definition of index (I1).
