pdfmkfs (Initialize HiRDB file system area)

Function

The pdfmkfs command initializes a specified file as a HiRDB file system area.

Executor

HiRDB administrator

Format

pdfmkfs [-r] -n HiRDB-file-system-area-size -l max-files-count
        [-k usage-purpose] [-e max-secondary-allocations-count]
        [-s sector-length] [-i] [-r]
         filename

Options

Specifies, in megabytes, the space to be allocated as the HiRDB file system area.

pd_large_file_use operand in system definition File type Value range
N File (NTFS) 1-2,047
Direct disk access (raw I/O) 1-2,047
Y File (NTFS) 1-1,048,575
Direct disk access (raw I/O) 1-1,048,575

If you are using a file (NTFS) with a size greater than 100 gigabytes, specify Y in the pd_ntfs_cache_disable operand in the system definition to avoid a shortage of OS resources. Also make sure that HiRDB files for LOB RDAREAs are not intermixed with HiRDB files for RDAREAs.

The management area used for management of a HiRDB file system area is also included in the value of the -n option. Therefore, the actual size allocated to the HiRDB file is (value of the -n option) - (size of management area). For details about determining the size of the management area, see Notes. You can use the pdfstatfs command to check the actual size that is allocated to the HiRDB file.

Specifies the maximum number of HiRDB files that can be created in the allocated HiRDB file system area.

Once you execute the pdfmkfs command, you can no longer change this value. Therefore, carefully determine this value taking into account the number of HiRDB files to be used and future expansion plans.

Specifies the purpose for which the HiRDB file system area will be used:

DB
HiRDB file system area for RDAREAs

SDB
HiRDB file system area for shared RDAREAs. SDB can be specified for a HiRDB/Parallel Server when direct disk access is used as the HiRDB file system area. For regular RDAREAs, use a HiRDB file system area whose purpose is DB.
When the purpose of initialization is SDB, execute the command at the server machine where the updatable back-end server is located. Do not execute the command from a referencing-possible back-end server.
Once created, a DB-purpose HiRDB file system area cannot be distinguished from a SDB-purpose HiRDB file system area. For this reason, you should assign area names that distinguish between the two purpose types.

SYS
HiRDB file system area for system log files, synchronization point dump files, status files, or audit trail files.
If you specify SYS, do not specify the -e option.

WORK
HiRDB file system area for list RDAREA or work table files.

UTL
HiRDB file system area for utilities.
You can create the following files in a HiRDB file system area for utilities:
  • Unload data files
  • LOB data unload files
  • Index information files (applicable to delayed batch creation of plug-in index)
  • Backup files
  • Differential backup files
  • Differential backup management files
  • Unload log files

NUTL
HiRDB file system area for utilities (without using Windows cache). The system accesses this area without using cache regardless of the pd_ntfs_cache_disable operand value specified in the system definition.
Specify NUTL when a shortage of OS resources is expected because the total file size exceeds 100 gigabytes or when direct disk access is used. Normally, however, specify UTL.

SVR
HiRDB file system area that can be used for any purpose other than utilities
SVR can be specified if there is no problem with mixing HiRDB files for different usage purposes in a single HiRDB file system area, such as in a test system. Normally, however, each HiRDB file system area is dedicated to a particular type of usage.
Do not specify SVR when you are creating a HiRDB file system area that will be used for the system switchover facility. For a HiRDB file system area created with SVR specified, HiRDB resumes processing when data is written in the Windows file cache. Therefore, if an error occurs before the data is written on the disk, file conformity will be lost.

Limitations (when using direct disk access (raw I/O))
When using direct disk access, the following limitations apply:
Usage purpose Availability Remarks
DB Y
SDB Y
SYS Y
WORK N You cannot specify direct disk access in the pdwork operand in the system definition.
UTL N
NUTL Y
SVR N
Legend:
Y: Available.
N: Not available.

Specifies the maximum number of extensions for each HiRDB file in the HiRDB file system area. HiRDB increases the size of HiRDB files according to the specified number of extension. The maximum number of extensions permitted per HiRDB file is 23. If the specified value is maximum number of files [Figure] 23 or greater, the command ignores the specified value and assumes the maximum number of files [Figure] 23.

Criteria
  1. In the case of a HiRDB file system area for work table files, if the estimated size of a work table file exceeds the value listed below, make sure that the number of extensions is specified. For details about estimating the size of work table files, see the HiRDB Version 8 Installation and Design Guide.
    - For HiRDB/Single Server
    128 kilobytes
    - HiRDB/Parallel Server
    512 kilobytes
  2. Even when the estimated size does not exceed the above value, or for an HiRDB file system area for other than work table files, we recommend that you specify the number of extensions.
  3. If you are using RDAREA automatic extension, make sure that the number of extensions is specified.
  4. Operations such as deletion, re-initialization (for reduction of allocation size or with with reconstruction specified), and integration of RDAREAs result in deletion of allocated HiRDB files and reduction in size. As a result, the HiRDB file system area becomes fragmented. If you use these operations, you should specify the number of extensions. If the system cannot allocate contiguous free space when an RDAREA is added, extended, or re-initialized, multiple fragmented spaces are used to create the new HiRDB file. In this case, the number of extensions that is required is number of fragmented free spaces - 1.

Determining the specification value
Use one of the following formulas to determine the number of extensions:
-k option Number of extensions to be specified
DB min (60000, 23 [Figure] cumulative total number of final files for the RDAREA to be extended*)
If you frequently perform deletion, re-initialization (for reduction of allocation size or with with reconstruction specified), or integration of RDAREAs, you should use the following value:
min (60000, 23 [Figure] cumulative total number of RDAREA structure files)
SDB
SYS 0
WORK min(60000, 23 [Figure] value of the -l option)
UTL
NUTL
SVR min(60000, 23 [Figure] cumulative number of files subject to extension)
Extension is applied to work table files and final files in the RDAREA subject to extension.*

Note 1
Once you execute pdfmkfs, you can no longer change the number of extensions. Therefore, specify an appropriate value taking into account the future extensions.

Note 2
As the number of extensions increases, the memory size required by the processes that use the HiRDB file system area increases.

Note 3
If the specified value is less than the value obtained from the above formula, the limit of the HiRDB file system area is reached before the maximum number of extensions is reached for the HiRDB files.

* Note that the number of last files in an RDAREA subject to extension is not one per RDAREA. This is because when pdmod is used to expand an RDAREA, the RDAREA is extended at the end, so that the last HiRDB file specified in the expand rdarea statement becomes the last file. Both the last file before and the last file after the expansion are included in the number of last files in the RDAREA subject to extension.

If you are using the HiRDB file system area with a device that handles a medium with a physical sector length of 2,048 and 4,096 bytes, such as DVD-RAM device, this option specifies the minimum I/O unit expressed as the sector length. For details about the physical sector length of a medium, see the manual for the medium.

Rules
  1. If you specify 2,048 or 4,096 as the sector length, you can specify either DB or NUTL in the -k option. When the -k option is omitted, SVR is assumed. Therefore, when you specify a sector length, make sure that -k DB or -k NUTL is specified.
  2. You can use a HiRDB file system area for which a sector length is specified for the following purposes:
    - HiRDB file system area for RDAREAs other than list RDAREAs
    - Output destination of the pdlogunld command (unload log file)
    - Backup files for pdcopy and pdrstr
    - Unload data files for pdrorg
    If you are using the HiRDB file system area for RDAREAs, specify a multiple of the sector length specified in the -s option as the page length in the pdinit or pdmod control statement for creating an RDAREA.
  3. You can specify the sector length if you use the direct disk access.

Specifies that the HiRDB file system area specified in the -n option is to be initialized from the beginning. When this option is omitted, the command creates only the management information for the HiRDB file system area. If the HiRDB file system area is large, it may take time to initialize it.

If you omit the -i option, the command creates only the management information for the HiRDB file system area (an area with a maximum size of about 3.5 megabytes is allocated).

The HiRDB file system area will be extended up to the size specified with the -n option when it is actually used. The OS file system containing this HiRDB file system area may become full when this HiRDB file system area is put into use. To avoid this, specify the -i option.

If you create HiRDB file system area to be used with system switchover facility, specify -i option. If you do not specify -i option, the files might be destroyed when the extension of HiRDB file system area and the power failure are generated at the same time.

Specifies that no confirmation message is to be displayed when the file is initialized. If this option is omitted and the specified regular file already exists, the command displays a confirmation message asking whether or not to initialize the file. If a letter other than g is entered in response to the confirmation message, the command will not initialize the file.

If you are using direct disk access (raw I/O), you cannot specify the -r option (in which case no confirmation message is displayed).

Command arguments

Specifies a name for the file to be initialized. This name is used as the name of the HiRDB file system area.

You can specify a maximum of 30 characters for the name of a HiRDB file that is created in the HiRDB file system area. Note that because HiRDB-file-system-area-name\HiRDB-filename cannot exceed 167 characters, the maximum length of an HiRDB file name is reduced accordingly if the HiRDB file system area name is greater than 136 characters.

For HiRDB files that are created automatically by HiRDB, make sure that the following maximum lengths for HiRDB file system area names are not exceeded:

HiRDB file created automatically by HiRDB Maximum length of HiRDB file system area name (in characters)
Work table file (specified with pdwork operand in system definition) 141
Audit trail file (specified with pd_aud_file_name operand in system definition) 150
Index information file for delayed batch creation of plug-in index (specified with pd_plugin_ixmk_dir operand in system definition) 136
Unload log file for system log for the automatic log unloading facility (specified with pd_log_auto_unload_path operand in system definition) 136

Rules

  1. The pdfmkfs command can be executed at any time, whether or not HiRDB is active.
  2. The pdfmkfs command must be executed separately for each server machine for which a HiRDB file system area is to be initialized.

Notes

  1. Return code 0 for the pdfmkfs command indicates normal termination, and return code -1 indicates abnormal termination.
  2. If the value specified as the area size is greater than the size of the disk volume or partition during initialization, the partition physically following that partition may be damaged. Therefore, a size that is greater than the size of the disk volume or partition must not be specified.

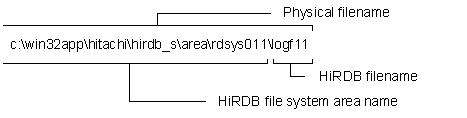

  3. The following shows the relationships among a HiRDB file system area name, HiRDB file name, and physical file name:

    [Figure]

  4. The results of executing the pdfmkfs command can be checked by the pdfstatfs command.
  5. For details about the values specifiable in the -n, -l, and -e options, see the following manuals, depending on the usage purpose:
    • SYS usage purpose
      Chapter 23. Sample Files in the HiRDB Version 8 Installation and Design Guide.
    • DB usage purpose
      Chapter 21. Simple Installation of a HiRDB/Single Server in the HiRDB Version 8 Installation and Design Guide.
    • WORK usage purpose
      Chapter 22. Simple Installation of a HiRDB/Parallel Server in the HiRDB Version 8 Installation and Design Guide.
      Sections 3.2.1, 3.3.2, and 3.3.3 in the manual HiRDB Version 8 System Definition.
    • UTL usage purpose
      Chapter 8. Database Reorganization Utility (pdrorg)
      Chapter 18. Database Copy Utility (pdcopy)
    • SVR usage purpose
      See the appropriate manuals previously, depending on the usage purpose of the HiRDB file to be created in the HiRDB file system area.
  6. If the purpose of use is WORK, generates a utilization rate warning message on an initialized HiRDB file system area, based upon the specifications pd_watch_resource and pdwork_wrn_pnt that are provided in the system definitions.
  7. As the maximum value of system resources for the HiRDB administrator, specify an unlimited value or a value that is greater than the -n option value.
  8. A management area is allocated to the HiRDB file system area. The size of the management area to be allocated depends on the type of OS, the -n, -l, -e, and -s options, and the type of files to be used. The formulas for determining the size of a management area are presented below. Note that the sizes of the fixed and variable management sections may increase depending on the process because they are read into memory while the corresponding HiRDB file system area is used.

Management area (bytes)
= Fixed management section + variable management section + HiRDB file management section [Figure] a
    • -n 2047 or less
      Fixed management section = 4096
      Variable management section = [Figure] (20 + 4 [Figure] a)/c [Figure] [Figure] c + [Figure] (48 + 16 [Figure] (a + b))/c [Figure] [Figure] c
      HiRDB file management section = [Figure] 320/c [Figure] [Figure] c
    • -n 2048 or greater
      Fixed management section = 4096
      Variable management section = [Figure] (20 + 4 [Figure] a)/c [Figure] [Figure] c + [Figure] (56 + 24 [Figure] (a + b))/c [Figure] [Figure] c
      HiRDB file management section = [Figure] 480/c [Figure] [Figure] c
    Description of variable symbols:
    a: Value of the -l option
    b: Value of the -e option (0 if the option is omitted)
    c: Value of the -s option (512 if the option is omitted)

Examples

Initialize the following HiRDB file system areas:

Command execution
pdfmkfs -n 25 .......................1
        -l 10 .......................2
        -e 5 ........................3
        c:\sysarea\rdsys011 .........4

Explanation
  1. Size of HiRDB file system area: 25 MB
  2. Maximum number of files: 10
  3. Maximum number of secondary allocations: 5
  4. Filename: c:\sysarea\rdsys011
