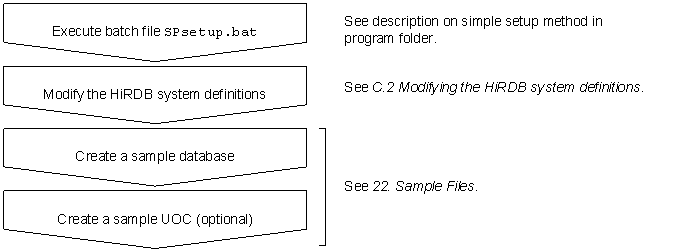

HiRDB provides the SPsetup.bat batch file (C:\win32app\hitachi\hirdb_s\sample\SPsetup.bat), which automatically sets up a HiRDB environment. SPsetup.bat automatically executes the following operations:

• Creation of HiRDB system definition files
• Creation of HiRDB file system areas
• Creation of system files
• Creation of RDAREAs

SPsetup.bat uses the files listed in Table C-1 to automatically create an environment. These files are called sample configuration. You can construct a system suitable for your applications by customizing the contents of these files. These files are located in the C:\win32app\hitachi\hirdb_s\conf directory.

Table C-1 Contents of sample configuration

Filename	Description
pdsys pdutsys sds01	HiRDB system definition files pdsys: System common definitions pdutsys: Unit control information definitions sds01: Single server definitions
fmkfile.bat	Batch file for creating the following HiRDB file system areas: HiRDB file system area for RDAREAs HiRDB file system area for work table files
fmkfs.bat	Batch file for creating the following HiRDB file system area: HiRDB file system area for system files
sysfint.bat	Batch file for creating system files
initdb.bat	Batch file for creating RDAREAs. It executes the database initialization utility (pdinit).
Mkinit	Batch file containing the control statements of the database initialization utility (pdinit).

Figures C-2 and C-3 show the sample system configuration that is created when SPsetup.bat is executed. If not customized, the batch file creates this system configuration.

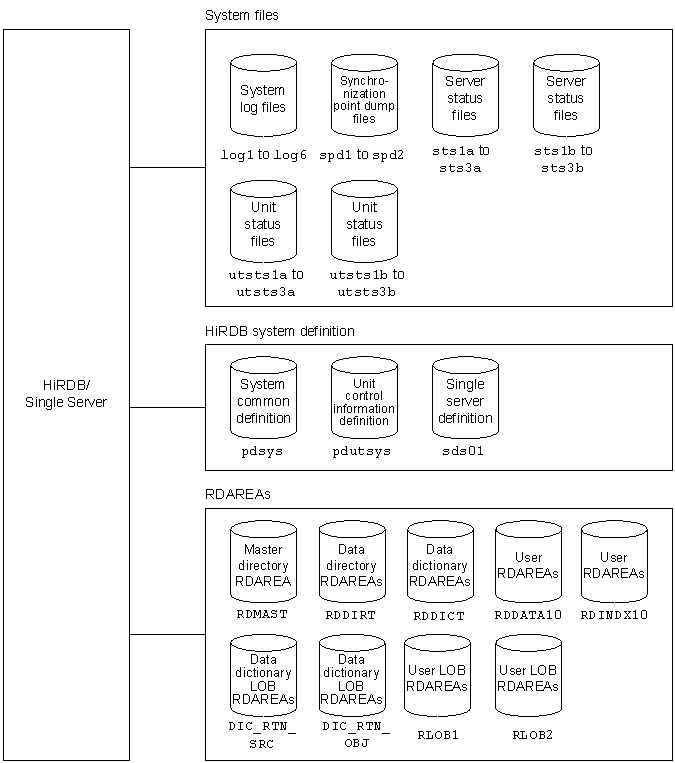

Figure C-2 Sample system configuration created by SPsetup.bat

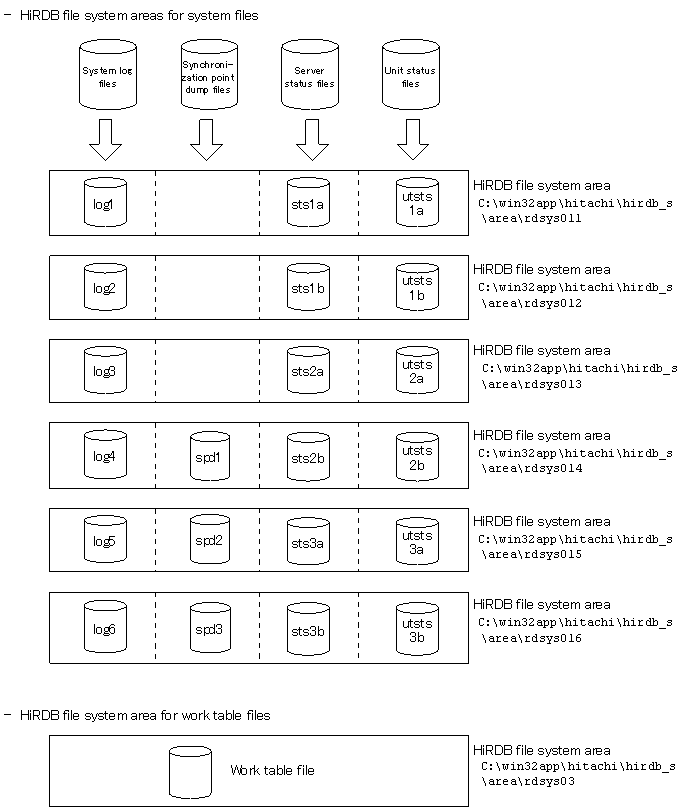

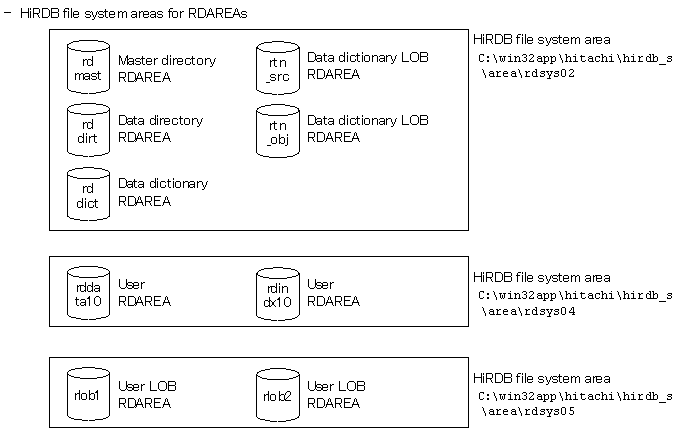

Figure C-3 Organization of sample HiRDB file system areas created by SPsetup.bat

Tables C-2 and C-3 list the HiRDB file system areas and files that are created by SPsetup.bat. If not customized, the batch file creates these HiRDB file system areas and files.

Table C-2 Names and sizes of HiRDB file system areas created by SPsetup.bat

Type of HiRDB file system area	Size of HiRDB file system area (MB)	HiRDB file system area name
For system files	296	rdsys0111 rdsys0121 rdsys0131 rdsys0141 rdsys0151 rdsys0161
For RDAREAs (system RDAREAs)	80	rdsys022
For work table files		rdsys032
For RDAREA (user RDAREAs)	160	rdsys042
For RDAREAs (user LOB RDAREAs)	40	rdsys052

¹ Created in the %PDDIR%\area directory.

² Created in the %PDDIR%\area directory.

Table C-3 Names of files created by SPsetup.bat

File type		Filename	Remarks
HiRDB system definition files	System common definition file	%PDDIR%\conf\pdsys	The directory is created during installation.
	Unit control information definition file	%PDDIR%\conf\pdutsys
	Single server definition file	%PDDIR%\conf\sds01
System files	System log files	rdsys011\log11 rdsys012\log21 rdsys013\log31 rdsys014\log41 rdsys015\log51 rdsys016\log61	6 groups
	Synchronization point dump files	rdsys014\spd11 rdsys015\spd21 rdsys016\spd31	3 groups
	Unit status files	rdsys011\utsts1a1 rdsys012\utsts1b1 rdsys013\utsts2a1 rdsys014\utsts2b1 rdsys015\utsts3a1 rdsys016\utsts3b1	Dual files 3 per unit
	Server status files	rdsys011\sts1a1 rdsys012\sts1b1 rdsys013\sts2a1 rdsys014\sts2b1 rdsys015\sts3a1 rdsys016\sts3b1	Dual files 3 per server
System RDAREAs	Master directory RDAREA	rdsys02\rdmast2	RDAREA name: RDMAST
	Data directory RDAREA	rdsys02\rddirt2	RDAREA name: RDDIRT
	Data dictionary RDAREA	rdsys02\rddict2	RDAREA name: RDDICT
	Data dictionary LOB RDAREA (for storing source)	rdsys02\rtn_src2	RDAREA name: DIC_RTN_SRC
	Data dictionary LOB RDAREA (for storing object)	rdsys02\rtn_obj2	RDAREA name: DIC_RTN_OBJ
Work table file		rdsys032
RPC trace file		%PDDIR%\spool\pdrpctr
User RDAREA (for storing data)		rdsys04\rddata102	RDAREA name: RDDATA10
User RDAREA (for storing indexes)		rdsys04\rdindx102	RDAREA name: RDINDX10
User LOB RDAREA		rdsys05\rlob12	RDAREA name: RLOB1
		rdsys05\rlob22	RDAREA name: RLOB2

¹ Created in the %PDDIR%\area directory.

² Created in the %PDDIR%\area directory.
