This appendix describes the code mapping for special characters.
The code conversion supports the Windows special characters, IBM selected characters, and NEC-selected IBM extended characters as special characters provided by vendors. To use the IBM selected characters and NEC-selected IBM extended characters, you must define the user mapping.
Table A-1 List of conversion details for the code mapping of special characters provided by vendors
| Conversion details | Location of description | |
|---|---|---|

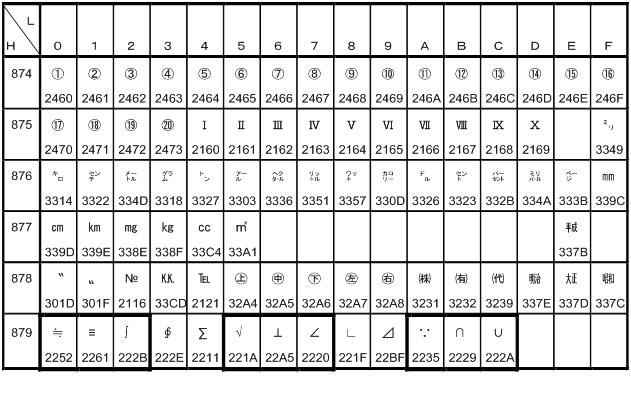

| Windows special characters | SJIS and Unicode (UCS-2) | Appendix A.2(1)(a) |

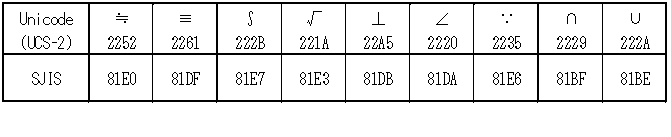

| From Unicode (UCS-2) to SJIS | Appendix A.2(1)(b) | |

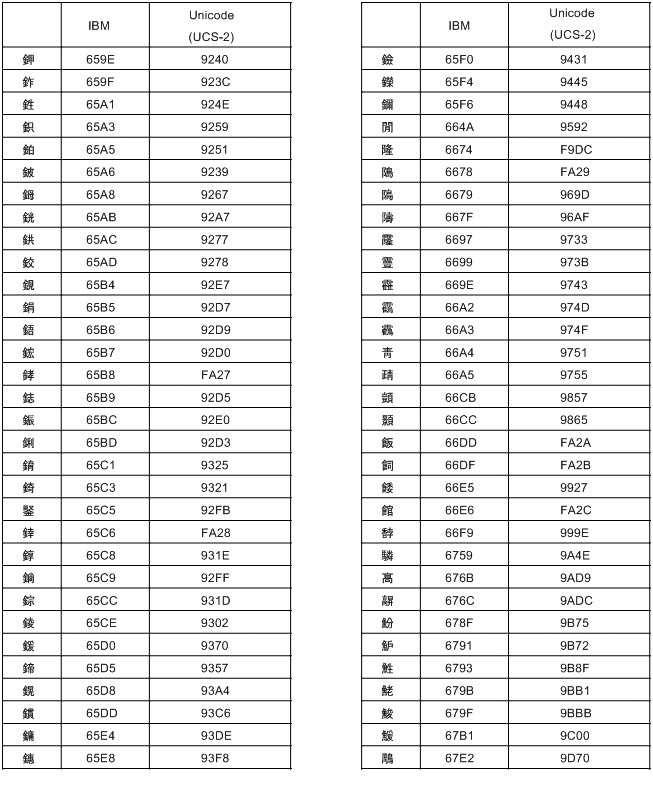

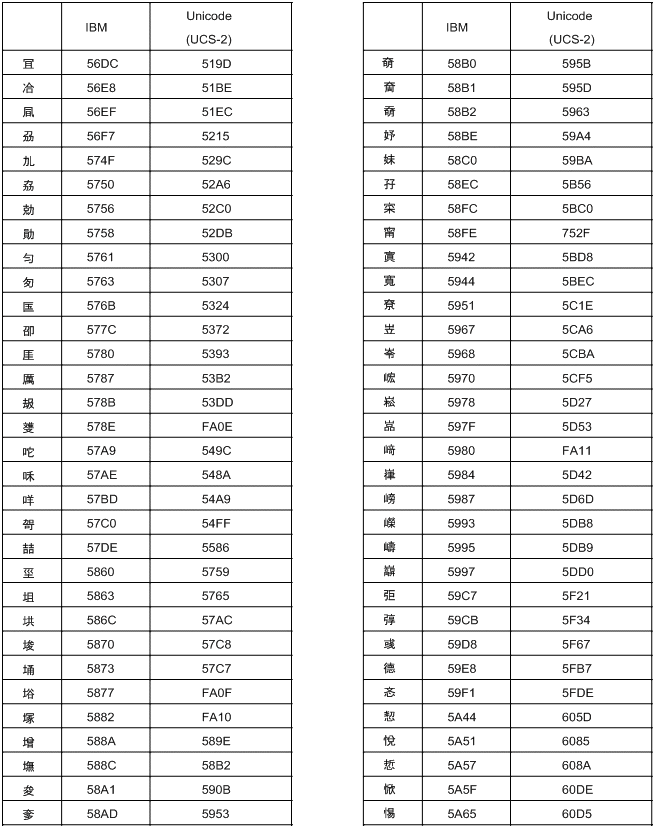

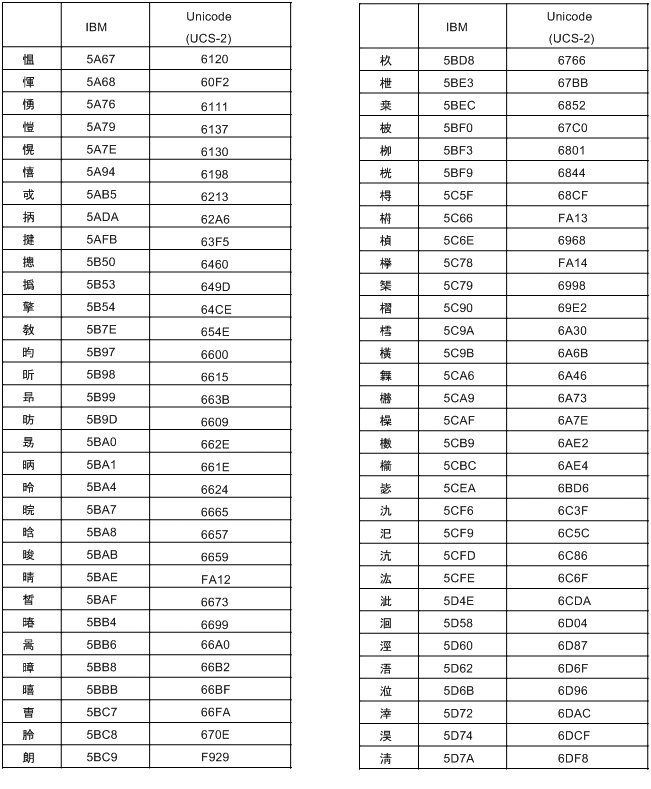

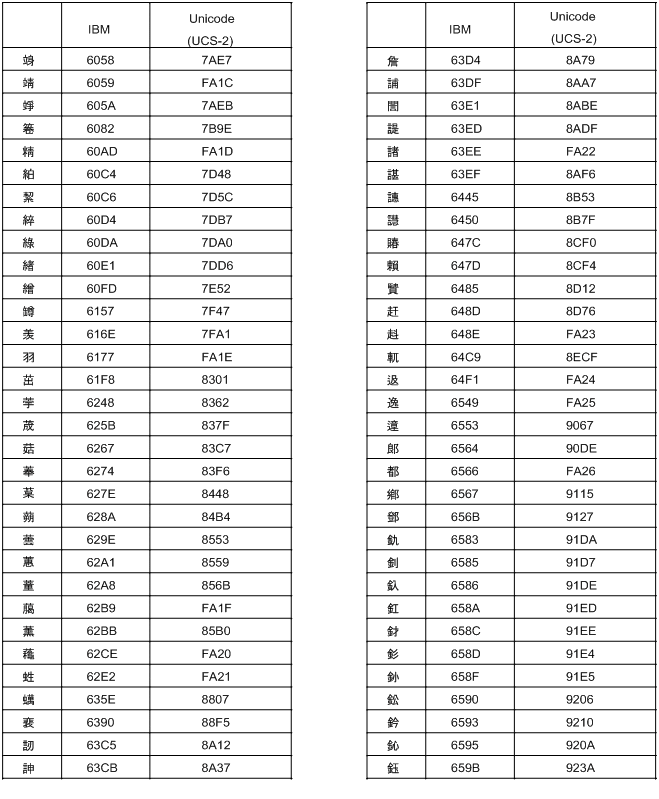

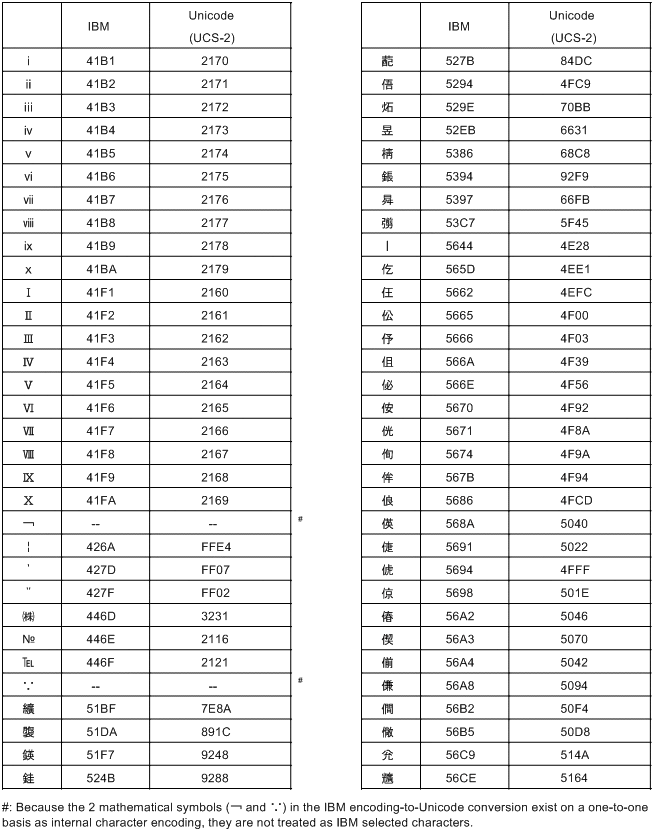

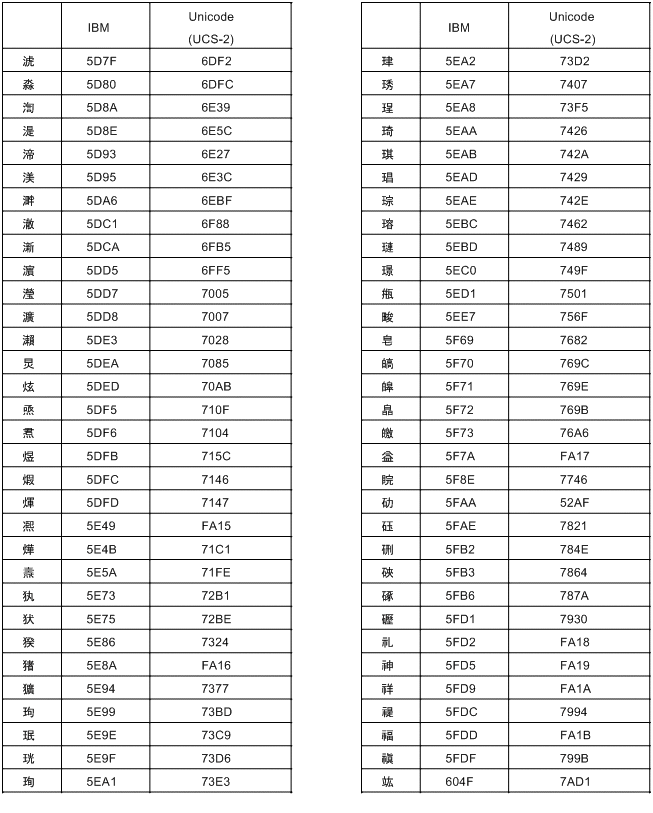

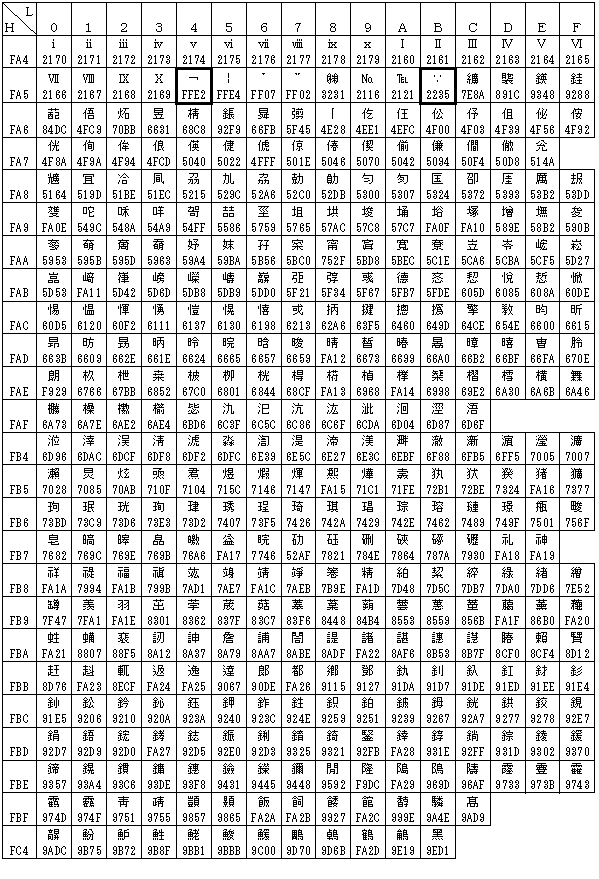

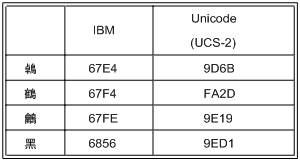

| IBM selected characters | Appendix A.2(2) | |

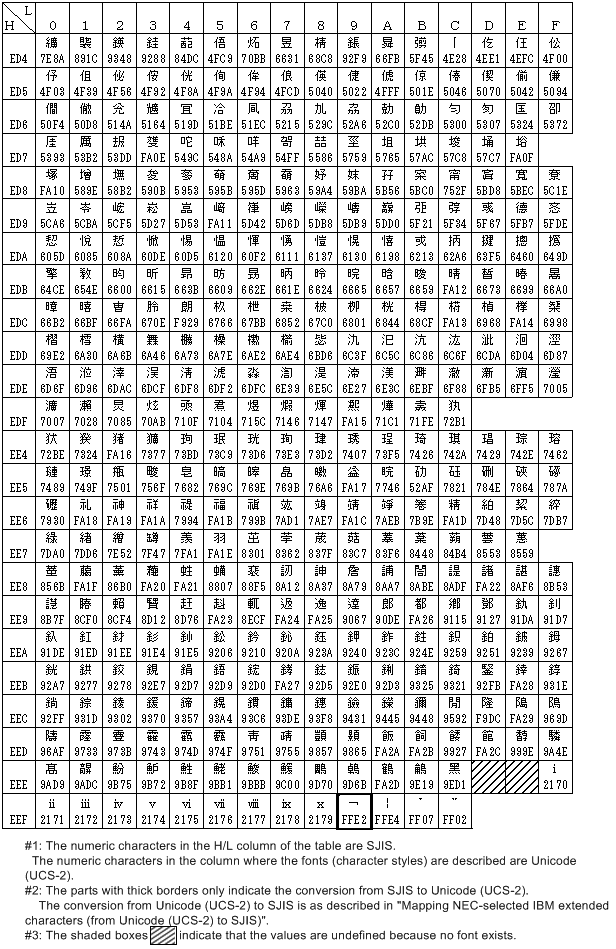

| NEC-selected IBM extended characters | Appendix A.2(3) | |
![[Figure]](FIGURE/SJISUNI.GIF)
![[Figure]](FIGURE/WUNISJIS.GIF)
![[Figure]](FIGURE/ZUUNICIB.GIF)
![[Figure]](FIGURE/ZUSJISIB.GIF)
![[Figure]](FIGURE/UNIIBM31.GIF)
![[Figure]](FIGURE/UNIIBM32.GIF)
![[Figure]](FIGURE/UNIIBM33.GIF)
![[Figure]](FIGURE/UNIIBM34.GIF)
![[Figure]](FIGURE/UNIIBM35.GIF)
![[Figure]](FIGURE/UNIIBM36.GIF)
![[Figure]](FIGURE/UNIIBM38.GIF)
![[Figure]](FIGURE/ZUUNICNE.GIF)
![[Figure]](FIGURE/ZUSJISNE.GIF)
