This section describes how the windows used in the operating environment are organized.

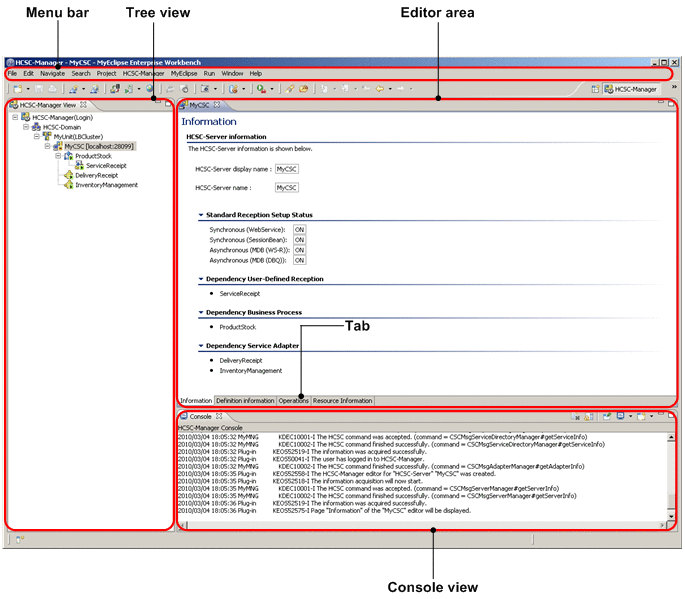

Figure 4-1 Window structure used in the operating environment

Menu bar

This is Eclipse's menu bar. The menu specific to the operating environment is HCSC-Manager.

Tree view

The tree view displays the icons that indicate the system configuration managed by the HCSC-Manager and the managed target (such as adapters and business processes). In the tree view, the icons displaying status are combined and displayed with the icons indicating management targets. The following table lists and describes icons displayed in the tree view:

Table 4-1 Icons displayed in the tree view

Classification	Icon status	Explanation
Icon		Indicates the HCSC-Manager.
		Indicates the HCSC-Domain.
		Indicates a load-balancing cluster or HA cluster.
		Indicates an HCSC server.
		Indicates a business process.
		Indicates a service adapter or database adapter.
		Indicates a user-defined reception.
Status		Indicates one of the following: active status for an HCSC server active status for a service adapter or database adapter
		Indicates inactive status.
		Indicates shutdown status.
		Indicates undeployed status.
		Indicates an acquisition error.

If you select the management target in the tree view and right click, the context menu opens and you can perform operations for the management target.

Editor area

This editor is used for displaying and operating the information of the management targets displayed in the tree view. The following table lists and describes the types of editors:

Table 4-2 TableTypes of editors

Editor name	Page name	Function
HCSC server editor	Information page	Displays basic information about the HCSC server.
	Definition information page	Displays definition information about the HCSC server.
	Operations page	Executes HCSC server operations.
	Resource Information page	Checks the resource information for HCSC server resources.
Business process editor	Information page	Displays basic information about the business process.
	Operations page	Executes business process operations.
	Tracking page	Manages process instance execution logs.
Service adapter editor	Information page	Displays basic information about the service adapter.
	Operations page	Executes service adapter operations.
User-defined reception editor	Information page	Displays basic information about the user-defined reception.
	Definition information page	Displays definition information about the user-defined reception.
	Operations page	Displays operations about the user-defined reception.

Tab

Each tab displays one of the pages listed in Table 4-2 next to the editor names.

Console view

Log information is displayed here.

In the console view, log information is displayed in the following format:

yyyy/mm/ddhh:mm:ssapplication-namemessage-IDmessage-text ( indicates a single-byte space.)

The application name is displayed as follows:

• For logs of window operations: Plug-in
• For log information from Manager: the Manager name that was specified at setup

If the message to be displayed exceeds 64 KB, 4KB of the oldest message is deleted in rows.

Shortcut

In the tree view and dialog boxes, if you press a key that is the same as the character with an underline such as (G) while pressing the Alt key, you can select the management target.
