Register Mapping Definitions dialog

In the Register Mapping Definitions dialog, specify the mapping definition file (extension: .mdo) that you will register as the copy source while copying the mapping definitions.

The Register Mapping Definitions dialog appears, when you right-click the applicable location of the transformation-source schema tree viewer, mapping viewer, or transformation-destination schema tree viewer, and then select Register Mapping Definition.

The following figure shows the Register Mapping Definitions dialog:

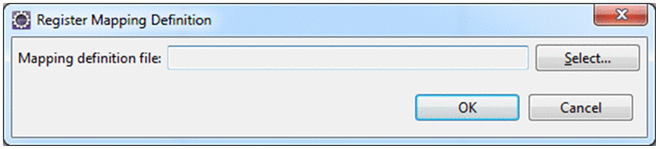

Figure 1-106 FigureRegister Mapping Definitions dialog

[Figure]

Organization of this subsection: (1) Display items; (2) Operations that can be performed in this dialog

(1) Display items

Mapping definition file: Specify the mapping definition file that acts as the copy source. If the mapping definition file is already registered, the registered mapping definition file appears.

Select button: Displays the dialog for selecting a file. The directory displayed first in the dialog for selecting the file can be set up at any location in the Preferences dialog. For details about the Settings dialog box, see 1.6.15 Settings dialog (Data transformation settings).

OK button: Enables the specified contents, and then closes the dialog.

Cancel button: Disables the specified contents, and then closes the dialog.

(2) Operations that can be performed in this dialog

In the Register Mapping Definitions dialog, you can set up the mapping definition file (extension: .mdo) registered as the copy source while copying the mapping definition. For details about copying mapping definitions, see the manual Cosminexus Service Platform Development Guide.
