[Header allocated variable] dialog is used to set header allocated variable.

This dialog is displayed when you click the [Set] button for header allocated variable in receive activity, reply activity and invoke service activity.

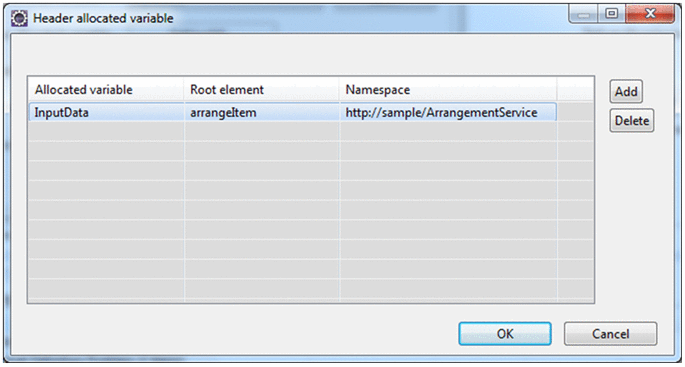

Figure 1-63 Figure [Header allocated variable] dialog

[Allocated variable]

Displays allocated variables in an ascending order.

[Root element]

Displays the root element defined in allocated variable.

[Name space]

Displays the name space of the root element.

[Add] button

Adds a new row below the last row of the table.

[Delete] button

Deletes all rows of allocated variable displayed in [Allocated variable]. You can select and delete rows of multiple allocated variables at a time.

[OK] button

Commits the specified contents and closes the [Header allocated variable] dialog.

[Cancel] button

Closes the [Header allocated variable] dialog without committing the defined contents.
