(a) Output format

The format that is output in the performance analysis trace file is same as that of the performance analysis trace of the J2EE server. For details about the performance analysis trace file, see "7.3 Collecting performance analysis trace file using Management Server" in "Application Server Maintenance and Migration Guide".

(b) Output contents

For HCSC server (Messaging infrastructure)

The following table lists and describes the content that is output to the performance analysis trace file:

Table 7-22 Table Contents output to the performance analysis trace file (messaging infrastructure)

Item		Content
Event ID		The Event ID of the collection point is output. For details, see the following points: "Table 7-28 Performance analysis trace collection point(when executing individual services)" "Table 7-29 Performance analysis trace collection point(when executing business process services)" "Table 7-30 Performance analysis trace collection point(Executing database access)" "Table 7-31 Performance analysis trace collection point(when accessing files)"
Return code		The type of collection point is output. 0:Normal end 1:Abnormal end
Interface name		Class name is output.
Operation name		Method name is output.
Option information	Message common ID	The request identification information (parent ID) is output.
	Service request ID	The request identification information (child ID) is output.
	Additional information	The additional information specific to the output destination is output.

For HCSC server (business process infrastructure)

The following table lists and describes the content that is output to the performance analysis trace file:

Table 7-23 Table Content output to the performance analysis trace file (business process infrastructure)

Item	Content
Event ID	The Event ID of the collection point is output. For details, see "Table7-32 Performance analysis trace collection point (business process infrastructure)".
Return code	The type of the collection point is output. 0:Normal end 1:Abnormal end
Interface name	Any of the following names is displayed: Business process definition name Java class name Data Transform Service name For details, see"Table 7-32 Performance analysis trace collection point (business process infrastructure)".
Operation name	Is not output.
Option information	Option information is output. For details, see"Table 7-32 Performance analysis trace collection point (business process infrastructure)".

For HCSC server (Database adapter)

The following table lists and describes contents output to the performance analysis trace file:

Table 7-24 Table Contents output to the performance analysis trace file (Database adapter)

Item		Content
Event ID		The Event ID of the collection point is output. For details, see the following points: "Table 7-33 Performance analysis trace collection point (When starting DB adapter)" "Table 7-33 Performance analysis trace collection point (When starting DB adapter)"
Return code		The type of the collection point is output. 0:Normal end 1:Abnormal end
Interface name		Class name is output. Package name is not displayed.
Operation name		Method name is output.
Option information	Message common ID	The request identification information (parent ID) is output. Value becomes null when the information is not set.
	Service request ID	The request identification information (child ID) is output. Value becomes null when the information is not set.
	Additional information	Individual information is output.

For HCSC server (data transformation infrastructure)

The following table lists and describes contents output to the performance analysis trace file:

Table 7-25 Table Content output to the performance analysis trace file (Data transformation infrastructure)

Item		Content
Event ID		The Event ID of the collection point is output. For details, see the following points: "Table 7-35 Performance analysis trace collection point(data transformation infrastructure)"
Return code		The type of the collection point is output. 0:Normal end 1:Abnormal end
Interface name		Class name is output.
Operation name		Method name is output.
Option information	Message common ID	The request identification information (parent ID) is output.
	Service request ID	The request identification information (child ID) is output.
	Additional information	The additional information specific to the output destination is output.

For HCSC server (component-common UOC)

The following table lists and describes contents output to the performance analysis trace file.

Table 7-26 Table Content output to the performance analysis trace file (component-common UOC)

Item		Content
Event ID		The Event ID of the collection point is output. For details, see the following points: "Table7-36 Performance analysis trace collection point (when using component-common UOC)"
Return code		The type of the collection point is output. 0:Normal end 1:Abnormal end
Interface name		Class name of UOC class is output.
Operation name		Method name of UOC class is output.
Option information	Message common ID	The request identification information (parent ID) is output.
	Service request ID	The request identification information (child ID) is output.
	Additional information	Option information is output. For details, see "7.4.3(2)(e) For HCSC server (component-common UOC)".

(a) For HCSC server (Messaging infrastructure)

Performance analysis trace files are output at the following times, and the trace collection point for each time is different:

• When executing individual services
• When executing business process services
• When executing database access
• When executing file access

When executing individual services

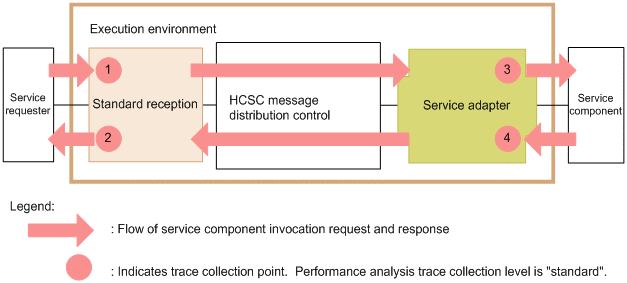

The following figure shows the trace collection point of the performance analysis trace when executing individual services:

Figure 7-11 Figure Trace collection point of the performance analysis trace (when executing individual services)

The following table lists the event ID, trace collection point, and performance analysis trace collection point. The "Number in figure" in this table corresponds to the numbers in "Figure7-11 Trace collection point of the performance analysis trace (when executing individual services)".

Table 7-27 Table Performance analysis trace collection point (when executing individual services)

Event ID	Number in figure	Trace collection point	Level
0x9800	1	Entry to standard reception (Web Services)	A
0x9801	2	Exit from standard reception (Web Services)	A
0x9802	1	Entry to standard reception (SessionBean)	A
0x9803	2	Exit from standard reception (SessionBean)	A
0x9804	1	Entry to standard reception (MDB(WS-R))	A
0x9805	2	Exit from standard reception (MDB(WS-R))	A
0x9806	1	Entry to standard reception (MDB(DB queue))	A
0x9807	2	Exit from standard reception (MDB(DB queue))	A
0x9810	3	Invocation of service components of SOAP adapter	A
0x9811	4	Point for receiving response from service components of SOAP adapter	A
0x9812	3	Invocation of service components of SessionBean adapter	A
0x9813	4	Point for receiving response from service components of SessionBean adapter	A
0x9814	3	Invocation of service components of MDB (WS-R) adapter	A
0x9815	4	Point for receiving response from service components of MDB (WS-R) adapter	A
0x9816	3	Invocation of service components of MDB (DB queue) adapter	A
0x9817	4	Point for receiving response from service components of MDB (DB queue) adapter	A
0x9818	3	Invocation of service components of service adapters(CUSTOM) other than those mentioned above	A
0x9819	4	Point for receiving response from service components of service adapters(CUSTOM) other than those mentioned above	A

Legend:

A: Indicates the "Standard" level.

When executing business process services

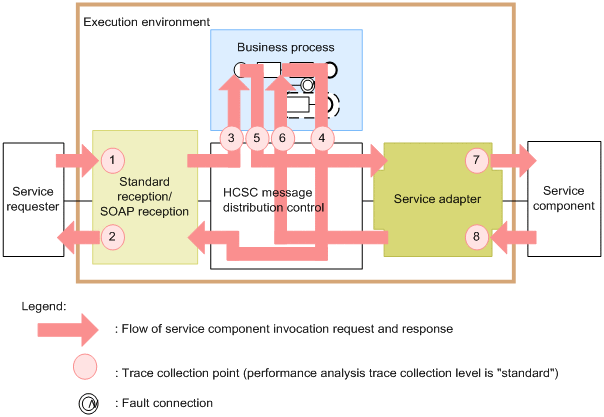

The following figure shows the trace collection point of the performance analysis trace when executing business process services:

Figure 7-12 FigureTrace collection point of the performance analysis trace (when executing business process services)

The following table lists the event ID, trace collection point, and the performance analysis trace collection level. The "Number in figure" in this table corresponds to the numbers in "Figure7-12 Trace collection point of the performance analysis trace (when executing business process services)".

Table 7-28 Table Performance analysis trace collection point(when executing business process services)

Event ID	Number in figure	Trace collection point	Level
0x9800	1	Entry to standard reception (Web Services)	A
0x9801	2	Exit from standard reception (Web Services)	A
0x9802	1	Entry to standard reception (SessionBean)	A
0x9803	2	Exit from standard reception (SessionBean)	A
0x9804	1	Entry to standard reception (MDB(WS-R))	A
0x9805	2	Exit from standard reception (MDB(WS-R))	A
0x9806	1	Entry to standard reception (MDB(DB queue))	A
0x9807	2	Exit from standard reception (MDB(DB queue))	A
0x9808	1	Entry to SOAP reception	A
0x9809	2	Exit from SOAP reception	A
0x9810	7	Invocation of service components of SOAP adapter	A
0x9811	8	Point for receiving response from service components of SOAP adapter	A
0x9812	7	Invocation of service components of SessionBean adapter	A
0x9813	8	Point for receiving response from service components of SessionBean adapter	A
0x9814	7	Invocation of service components of MDB (WS-R) adapter	A
0x9815	8	Point for receiving response from service components of MDB (WS-R) adapter	A
0x9816	7	Invocation of service components of MDB (DB queue) adapter	A
0x9817	8	Point for receiving response from service components of MDB (DB queue) adapter	A
0x9818	7	Invocation of service components of service adapters(CUSTOM) other than those mentioned above	A
0x9819	8	Point for receiving response from service components of service adapters(CUSTOM) other than those mentioned above	A
0x9840	3	Invocation of business process services	A
0x9841	4	Point for receiving response from business process services	A
0x9842	5	Entry to business process reception	A
0x9843	6	Exit from business process reception	A

Legend:

A:Indicates the "Standard" level.

When executing database access

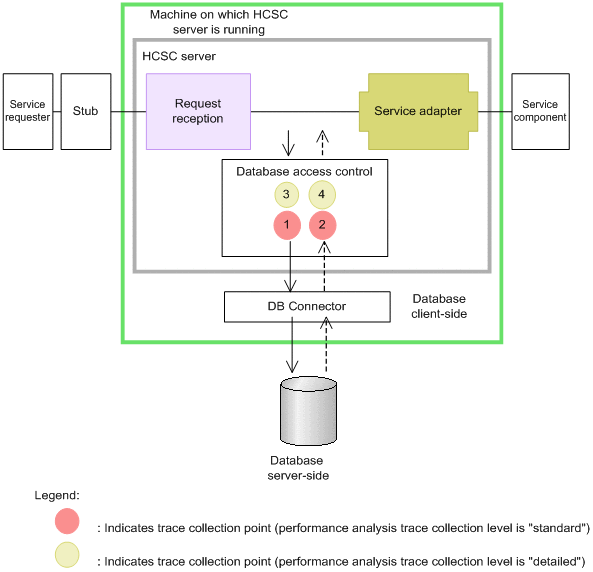

The following figure shows the collection point of performance analysis trace at the time of accessing the database when the HCSC server fetches commands.

Figure 7-13 Figure Performance analysis trace collection point (when executing database access)

The following table lists the event ID, trace collection point, and the performance analysis trace collection level. The "Number in figure" in this table corresponds to the numbers in "Figure7-13 Performance analysis trace collection point (when executing database access)".

Table 7-29 Table Performance analysis trace collection point(when executing database access)

Event ID	Number in figure	Trace collection point	Level
0x9850	1	Invocation of DB connector	A
0x9851	2	Point for receiving response from DB connector	A
0x9852	3	Invocation of execution log of DB connector	B
0x9853	4	Point for receiving response from execution log of DB connector	B

Legend:

A:Indicates the "Standard" level.

B:Indicates the "Detail" level.

When executing the file access

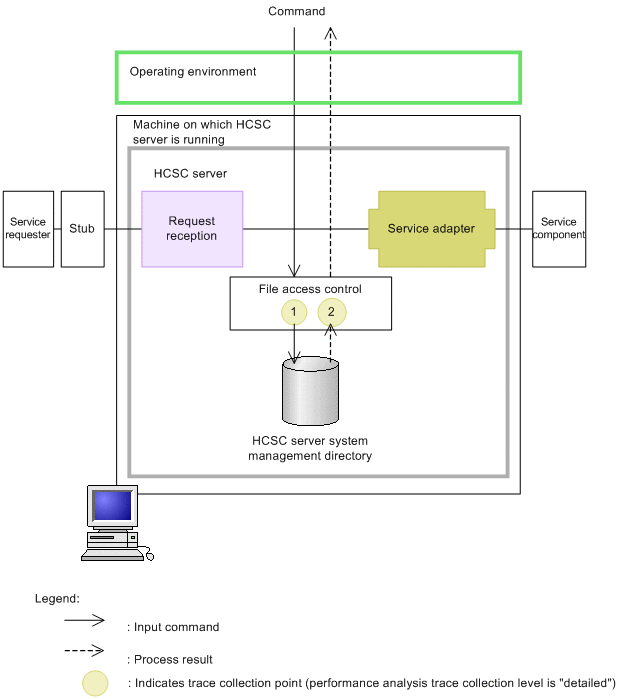

When you setup the HCSC server in a configuration in which the database is not used, files are accessed instead of the database when the command is processed. Acquire the performance analysis trace while accessing these files. The following figure shows the collection point when accessing files:

Figure 7-14 Figure Performance analysis trace collection point (when accessing files)

The following table lists the event ID, trace collection point, and the performance analysis trace collection level. The "Number in figure" in this table corresponds to the numbers in "Figure7-14 Performance analysis trace collection point (when accessing files)".

Table 7-30 Table Performance analysis trace collection point (when accessing files)

Event ID	Number in figure	Trace collection point	Level
0x9854	1	Invocation of file access (before opening the file)	B
0x9855	2	Point for receiving response from file access (after closing the file)	B

Legend:

B:Indicates the "Detail" level.

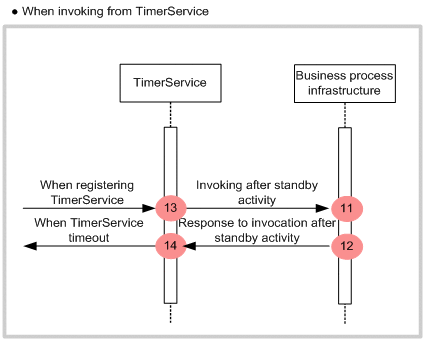

(b) For HCSC server (Business process infrastructure)

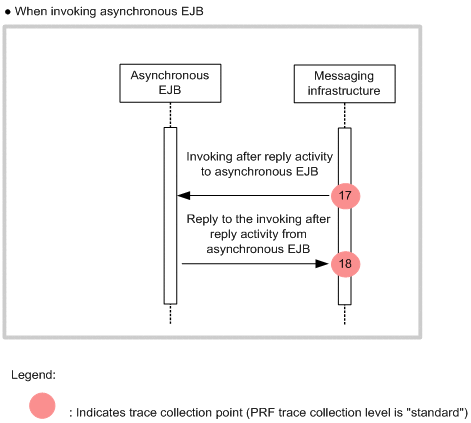

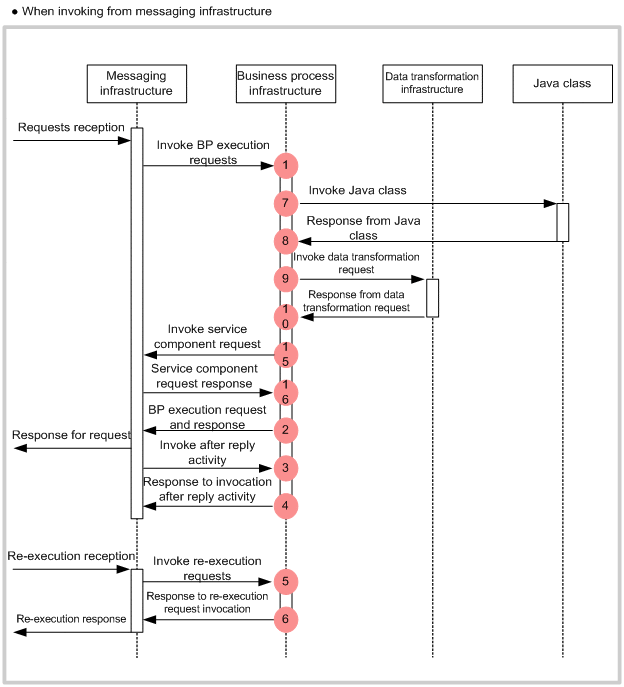

The following figure shows the performance analysis trace collection point:

Figure 7-15 Figure Trace collection point of performance analysis trace (business process infrastructure)

The following tables lists the event ID, trace collection point, and the performance analysis trace collection level, and indicates the output content of Interface name and Option information for each event ID. The numbers in the Number in figure column of the table correspond to the numbers in the above figure.

Table 7-31 Table Performance analysis trace collection point(business process infrastructure)

Legend:

A:Indicates the "Standard" level.

Note

The event IDs that are not listed in the table (0x9A00 to 0x9AFF) are issued from the data transformation infrastructure.

(c) For HCSC server (Database adapter)

The trace collection point of performance analysis trace differs depending on whether you execute startup operations or service components.

At the time of starting

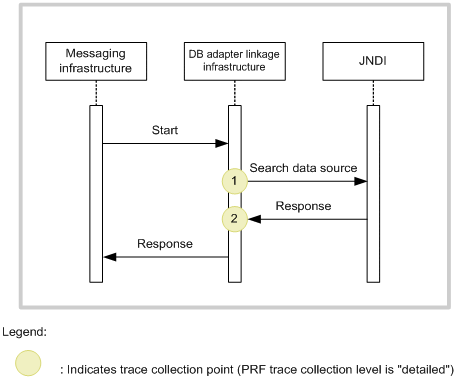

The following figure shows the performance analysis trace collection point at the time of starting:

Figure 7-16 Figure Trace collection point of performance analysis trace (when starting the DB adapter)

The following table lists the event ID, trace collection point, and the performance analysis trace collection level. The "Number in figure" in this table corresponds to the numbers in "Figure7-16 Trace collection point of performance analysis trace (when executing DB adapter service)".

Table 7-32 Table Performance analysis trace collection point (when starting DB adapter)

Event ID	Number in figure	Trace collection point	Level
0x9B60	1	Immediately before data source search	B
0x9B61	2	Immediately after data source search	B
0x9B62			B

Legend:

B:Indicates the "Detail" level.

When executing service components

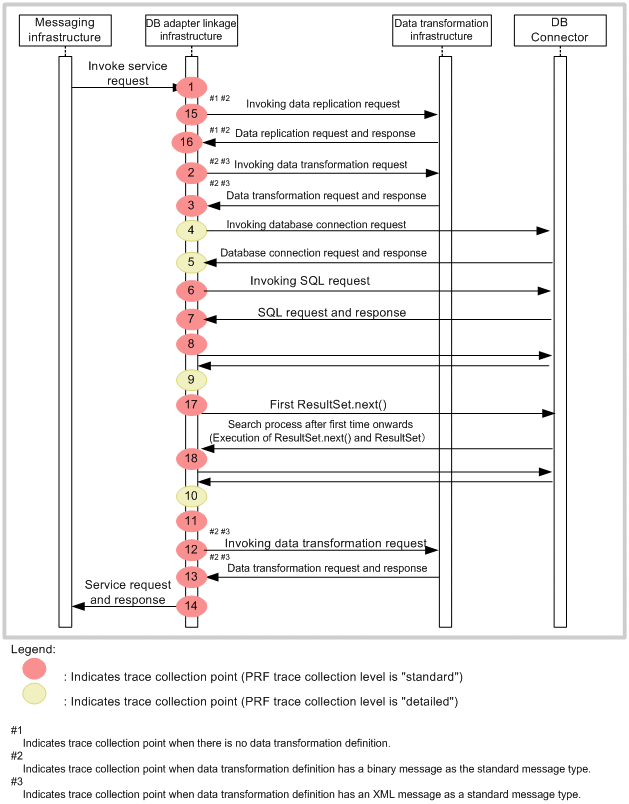

The following figure shows the trace collection point of performance analysis trace when executing service components:

Figure 7-17 Figure Trace collection point of performance analysis trace (when executing DB adapter service)

The following table lists the event ID, trace collection point, and the performance analysis trace collection level. The "Number in figure" in this table corresponds to the numbers in "Figure7-17 Trace collection point of performance analysis trace(when executing DB adapter service)".

Table 7-33 Table Performance analysis trace collection point(when executing DB adapter service)

Event ID	Number in figure	Trace collection point	Level
0x9B00	1	Immediately after invoking a service component request from messaging infrastructure	A
0x9B01	14	Immediately before the response to the service component request from messaging infrastructure	A
0x9B02			A
0x9B20	2#1#2, 12#1#2	Immediately before invoking a data transformation request	A
0x9B21	3#1#2, 13#1#2	Immediately after invoking a data transformation request	A
0x9B22			A
0x9B23	15#2#3	Immediately before invoking a data replication request	A
0x9B24	16#2#3	Immediately after the response to the data replication request	A
0x9B25			A
0x9B63	4	Immediately before invoking a request to connect to database	B
0x9B64	5	Immediately after invoking a request to connect to database	B
0x9B65			B
0x9B66	6	Immediately before invoking an SQL request	A
0x9B67	7	Immediately after the response to the SQL request	A
0x9B68			A
0x9B69	6	Immediately before invoking an SQL request	A
0x9B6A	7	Immediately after the response to the SQL request	A
0x9B6B			A
0x9B6C	6	Immediately before invoking an SQL request	A
0x9B6D	7	Immediately after the response to the SQL request	A
0x9B6E			A
0x9B6F	17	When executing SELECT statement from DB adapter (only when ResultSet.next() is output for the first time)	A
0x9B70	18		A
0x9B71			A
0x9B40	8	Immediately before storing SQL (SELECT) execution results	A
0x9B41	11	Immediately after storing SQL (SELECT) execution results	A
0x9B42			A
0x9B43	9	Immediately before collecting SQL (SELECT) execution results	B
0x9B44	10	Immediately after collecting SQL (SELECT) execution results	B
0x9B45			B

Legend:

A:Indicates the "Standard" level.

B:Indicates the "Detail" level.

Note

The event IDs that are not listed in the table (0x9A00 to 0x9AFF) are issued from the data transformation infrastructure.

Note#1

Indicates the trace collection point when the data transformation definition has an XML message as the standard message type.

Note#2

Indicates the trace collection point when the data transformation definition has a binary message as the standard message type.

Note#3

Indicates the trace collection point when there is no data transformation definition.

(d) In HCSC server (data transformation infrastructure)

The following table lists the event ID, trace collection point, and the performance analysis trace collection level.

Table 7-34 Table Performance analysis trace collection point (data transformation infrastructure)

Legend:

A:Indicatesthe "Standard" level.

Note#

When invoking from the file operations adapter, the performance analysis trace collection level is "Detail".

(e) For HCSC server (component-common UOC)

The performance analysis trace when you use the Component-common UOC functionalityis output immediately before and after invoking the UOC class. The following figure shows the trace collection point of performance analysis trace when using component-common:

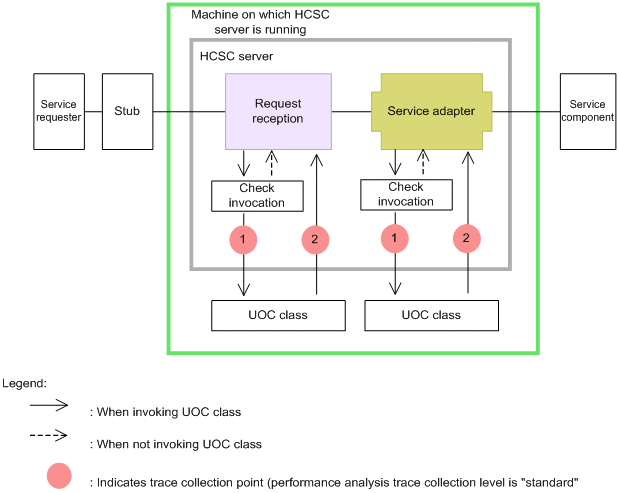

Figure 7-18 Figure Performance analysis trace collection point (when using component-common UOC)

The following table lists the event ID, trace collection point, and the performance analysis trace collection level. The "Number in figure" in this table corresponds to the numbers in "Figure7-18 Performance analysis trace collection point (when using component-common UOC)".

Table 7-35 Table Performance analysis trace collection point (when using component-common UOC)

Legend:

A:Indicates the "Standard" level.

The output format of the option information is as follows:

<Request identification information (parent ID)> <Request identification information (child ID)> Component type=<Component type (service adapter or reception)>, Component kind=<type>, Component ID=<Service ID of service adapter or reception ID#>, OP=<service operation name>

In case of abnormal end, the option information is output in the following format:

<Request identification information (parent ID)> <Request identification information (child ID)> Component type=< Component type (adapter type or reception type)>, Component ID=< Service ID of service adapter or reception ID #>, OP=< service operation name >, Exception=<exception class name>

Note#

If you use the standard reception, the following fixed values are set:

Settings are required to acquire performance analysis trace. For details, see "7.3.1(3) Performance analysis trace" and "7.3 Collecting performance analysis trace files using Management Server" in "Application Server Maintenance and Migration Guide".
