Confirm the definition items of the following definition files when you change the IP address or host name of the machine on which the database used by the HCSC server is running. For details on how to define the properties of the HCSC server setup definition file, see "HCSC server setup definition file" in "Service Platform Reference Guide".

Table 5-9 Definition items to be confirmed at the time of changing IP address or host name

Definition file name	Definition items
HCSC server setup definition file	For Oracle jdbc-url Other than Oracle jdbc-dbhostname
DB Connector definition file	For HiRDB DBHostName Other than HiRDB serverName

The methods to change the IP address and the host name differ depending on the contents defined in the definition items.

Table 5-10 Methods to change the IP address or the host name

Definition content of definition items	Methods for changing
	Changing IP address	Changing host name
localhost	Even if you want to change either the IP address or the host name of the machine, you need not change the settings of the definition file.
Host name	If you change the IP address of the machine without changing the host name, you need not change the settings of the definition file. You can change simply by restarting Administration Agent, Management Server, and the HCSC server.	You cannot change the host name of the machine. To change the host name, you must re-set up the HCSC server.
IP address	You cannot change the IP address of the machine. To change the IP address, you must re-set up the HCSC server.	--

Legend:

--: Not applicable.

The following figure shows an example of changing the IP address or the host name:

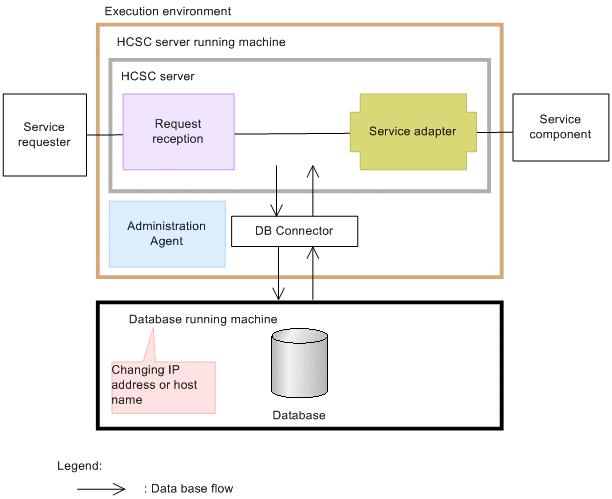

Figure 5-5 Changing the IP address or the host name of the machine on which a database used by HCSC server is running (when the HCSC server is setup)

Confirm the definition items of the following definition files when you change the IP address or host name of the database to which the database adapter is connected:

Table 5-11 Definition items to be confirmed at the time of changing IP address or host name

Definition file name	Definition name
DB Connector definition file	For HiRDB DBHostName Other than HiRDB serverName

The methods to change the IP address and the host name differ depending on the contents defined in the definition items.

Table 5-12 Methods to change the IP address or the host name

Definition content of definition items	Methods for changing
	Changing IP address	Changing host name
Localhost	Even if you want to change either the IP address or the host name of the machine, you need not change the settings of the definition file.
Host name	You can change either the IP address or the host name of the machine with the following procedure: Change the definition content (IP address or host name) of the definition file Reflect the definition file with the cjsetrarprop command to the DB Connector Restart the HCSC server
IP address	You must implement the following procedure to change the IP address of the machine: Change the definition content (IP address) of the definition file Reflect the definition file with the cjsetrarprop command to the DB Connector Restart the HCSC server	--

Legend:

--: Not applicable.

The following figure shows an example of changing the IP address or the host name:

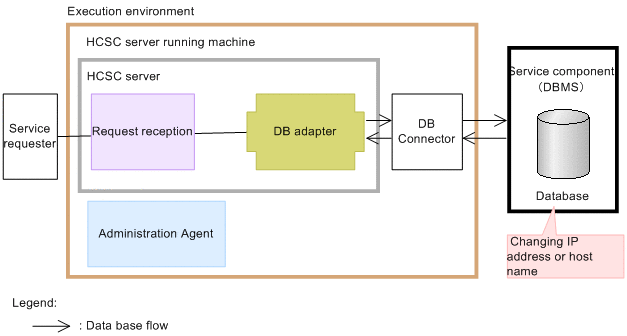

Figure 5-6 FigureChanging the IP address or the host name of the database to which the database adapter is connected
