uCosminexus Service Platform, Setup and Operation Guide

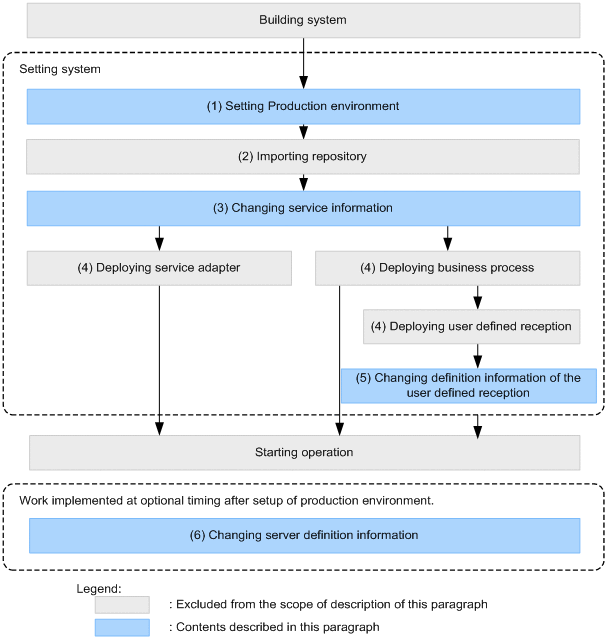

The following figure shows the flow of system setup using Easy Setup functionality for the HCSC production environment.
Figure 3-17 Figure Flow of setup (When the Easy Setup functionality for the HCSC production environment is used)
The following paragraphs describe the operations for setting up a system by using the Easy Setup functionality for the HCSC production environment.
Set up the production environment by using the Easy Setup functionality for the HCSC production environment. To setup the production environment by using the Easy Setup functionality for the HCSC production environment, you must create the definition file by using the template file. For the setup of the production environment, see "3.5.3(1) Setting up the production environment ".
Import the repository created in the development environment into the operating environment. For details on importing the repository, "4.3 Importing a repository".
Change the service information set up by using the Easy Setup functionality for the HCSC production environment. For details on changing the set up service information, see "3.5.3(2) Changing the setup information".
Deploy the service adapters, business processes, and user-defined receptions in the execution environment. For details on deploying the service adapters, business processes, and user-defined receptions, see "3.1.8 Deploying a service adapter", "3.1.13 Deploying a business process", and "3.1.14 Deploying a user-defined reception".
Change the definition information of the user-defined reception set up by using the Easy Setup functionality for the HCSC production environment. For details on changing the definition information of the set up user-defined reception, see "3.5.3(2) Changing the setup information".
Change the definition information for the server at any time after setting up the production environment. For details on changing the server definition information, see "3.5.3(2) Changing the setup information".
