(a) Adding and validating the file adapter

To add and validate a file adapter:

1. From the Eclipse menu, select Window, Show View, and then Other.
   The Show View dialog box appears.

2. Select HCSC-Definer and then HCSCTE View, and click OK.
   The Service Definition List appears in the tree view.

3. Right-click the Service Definition List in the tree view, and select Add Service Adapter.
   The Service adapter definition addition wizard appears.

4. From the Service component type: drop-down list, select File adapter.
5. Click Next.
   The Service adapter definition addition (File Adapter) wizard appears.

6. Enter the service name.
   Enter CSAFF_SAMPLE_WRITE_CSV as the service name.

7. Click Finish.
   The necessary files are created, and stored in the repository. The Service adapter definition (standard) window appears.

8. Enter settings in the Service adapter definition (standard) and Service adapter definition (details) windows.
   For details on the settings you need to enter, see File adapter settings (sample for writing CSV data).

9. Review the definition contents, and then save the service adapter definition by selecting File and then Save from the Eclipse menu.
10. Verify the file adapter settings.
    Select Verify from the pop-up list displayed when you right-click the Service Definition List in the tree view. The results appear in the Console View.


File adapter settings (sample for writing CSV data)

The table below shows the items you need to set in the Service adapter definition (standard) window when defining the file adapter for the sample for writing CSV data. You do not need to set items that do not appear in this table.

Table D-56 Settings in Service adapter definition (standard) window (sample for writing CSV data)

Category	Item		Value to set	Requires setting
Service component control information	Service name		CSAFF_SAMPLE_WRITE_CSV	Y
	Service ID		CSAFF_WC	Y
	Service type		File adapter	N
	Address		--	--
	Maximum instances		0	Y
	Operation		Pattern: Binary file writing Operation name: CSAFF_SAMPLE_WRITE_CSV	Y
Operation information	Operation name		CSAFF_SAMPLE_WRITE_CSV	N
	Communication model		Sync	Y
Request message	Standard	Use check box	Use (select the check box)	Y
		Format ID	SAMPLE_WRITE_CSV_Standard	Y
		Message format	csaff_sample_write_csv_standard.xsd	Y
	Service component	Format ID	SAMPLE_WRITE_CSV_Request	Y
		Message format	csaff_sample_write_csv.fdx	Y
	Data TransDefn File		SAMPLE_WRITE_CSV_DT	Y
Response message	Standard	Use check box	Do not use (leave the check box cleared)	Y
	Service component	Format ID	SAMPLE_WRITE_CSV_Response	Y
		Message format	adpff_result.xsd	N

Legend:

Y: Must be set.

N: Check the content that is already displayed.

--: Do not set.

The table below shows the items you need to set in the Service adapter definition (details) window when defining the file adapter for the sample for writing CSV data. You do not need to set items that do not appear in this table.

Table D-57 Settings in Service adapter definition (details) window (sample for writing CSV data)

Category	Item	Value to set	Requires setting
Service adapter control information	Service adapter (EJB-JAR file)	cscmsg_adpejb.jar	N
	Utility class (JAR file)	adpffpc.jar	N

Legend:

N: Check the content that is already displayed.

(b) Defining data transformation

Set the data transformation definition. The following figure shows the data transformation definition you need to set:

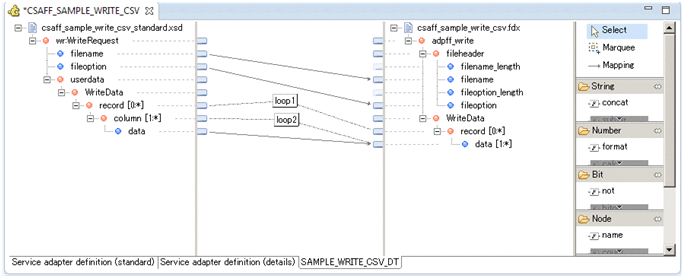

Figure D-11 Data-conversion definition screen for file adapter (sample for writing CSV data)

To define this data transformation:

1. Display the data transformation (mapping) definition screen from the Adapter Definition screen.
   After displaying the data transformation (mapping) definition screen, the Select Root Element dialog box appears.

2. Select the root elements for all logical schema names.
   The OK button becomes available.

3. Click OK.
   The schemas of the selected root elements appear in tree format in the transformation-source schema tree viewer and the transformation-destination schema tree viewer.

4. Perform mapping.
   Mapping involves the following tasks:

   • Placing and setting functions
     The following table shows the function settings:


     Table D-58 Function settings (sample for writing CSV data - File adapter)

     Function	Function name	Value to set
     loop	loop1	Select Node	record
     		Set Node Condition	Do not set
     loop	loop2	Select Node	column
     		Set Node Condition	Do not set

   • Setting inter-node mapping
     The following table shows the inter-node mapping settings:


     Table D-59 Mapping settings (sample for writing CSV data - File adapter)

     Source node	Function	Target node
     --	loop1	record
     --	loop2	data
     filename	--	filename
     fileoption	--	fileoption
     data	--	data

     Legend:

     --: Not applicable.



5. In the data transformation (mapping) definition screen, right-click an appropriate location in the transformation-source schema tree viewer, transformation-destination schema tree viewer, or mapping viewer, and select Validate.
   Validation takes place. You can ignore any warning messages that appear.


(c) Creating the file adapter runtime-environment property file

To create the file adapter runtime-environment property file:

1. Open the sample file adapter runtime-environment property file in a text editor.
   The sample file adapter runtime-environment property file is service-platform-installation-directory\CSC\custom-adapter\File\sample\write_csv\CSAFF_WC.propertie.

2. Add the following content to the file:



   fileaccess.path1 = service-platform-installation-directory\\CSC\\custom-adapter\\File\\sample\\write_csv
   character.code = MS932
   codetable.path = storage-path-for-code-conversion-table-(user-mapping-file)

   The storage path for user mapping files is as follows:



   service-platform-installation-directory\\CSC\\lib\\external\\table


3. Save the file.
   The storage path for the file is as follows:



   service-platform-installation-directory\CSC\custom-adapter\File\config


The task of defining a business process involves adding a business process, defining the contents of the business process, and then validating the business process.

(a) Adding a business process

To add a business process:

1. From the Eclipse menu, select Window, Show View, and then Other.
   The Show View dialog box appears.

2. Select HCSC-Definer and then HCSCTE View, and click OK.
   The Service Definition List appears in the tree view.

3. Right-click the Service Definition List in the tree view, and select Add Business Process.
   A dialog box appears in which you can add a business process definition.

4. Enter the name of the business process, and select whether to make its status persistent (whether to save the execution status of the business process in the database).
   Enter CSAFF_SAMPLE_BP_WRITE_CSV as the business process name.
   Select yes for Status Persistence.


   Reference note

   Do not use a BPEL file.

5. Click Finish.
   The necessary files are created, and stored in the repository. The Define Business Process window appears.


(b) Setting variables

Set the following variables:

• CSAFF_BP_RequestMessage
• CSAFF_DB_RequestMessage
• CSAFF_DB_ResponseMessage
• CSAFF_RequestMessage
• CSAFF_ResponseMessage

Reference note

The sample business process does not use a correlation set.

To set the variables:

1. On the canvas of the Define Business Process window, double-click the Variable-Correlation icon.
   The List Of Variables And Correlation Sets dialog box appears.

2. Select Variable List from the list.
3. Enter the variable name.
4. From the Type: drop-down list, select XML.
5. Perform whichever of the following operations is relevant for the variable you are defining:


   For CSAFF_DB_ResponseMessage, CSAFF_RequestMessage, and CSAFF_ResponseMessage

   In the Take In Message Format dialog box displayed by clicking the Take In button, specify the message format you want to use. For details on the settings you need to enter, see Variable settings (sample for writing CSV data).

   For CSAFF_BP_RequestMessage

   Click the ... button and select the csaff_sample_write_csv.xsd file.

   For CSAFF_DB_RequestMessage

   Click the ... button and select the csaff_sample_write_csv_db.xsd file.

6. Click Add.
   The variable you added appears in the list of variables.

7. Repeat steps 2 to 6 for each variable.
8. Click OK.
   The variable settings are saved and the List Of Variables And Correlation Sets dialog box closes.


Variable settings (sample for writing CSV data)

The tables below show the settings for the CSAFF_DB_ResponseMessage, CSAFF_RequestMessage, and CSAFF_ResponseMessage variables. You do not need to set items that do not appear in this table.

Table D-60 Settings for CSAFF_DB_ResponseMessage (sample for writing CSV data)

Category	Item	Value to set
Service/Reception	Service name	CSAFF_SAMPLE_DB
	Reception name	--
Target for take in	Operation name	CSAFF_SAMPLE_DB
	Message type	Response message (Body)
--	Message format	csaff_sample_sqlformat

Legend:

--: Not applicable.

Table D-61 Settings for CSAFF_RequestMessage (sample for writing CSV data)

Category	Item	Value to set
Service/Reception	Service name	CSAFF_SAMPLE_WRITE_CSV
	Reception name	--
Target for take in	Operation name	CSAFF_SAMPLE_WRITE_CSV
	Message type	Request message (Body)
--	Message format	csaff_sample_write_csv_standard

Legend:

--: Not applicable.

Table D-62 Settings for CSAFF_ResponseMessage (sample for writing CSV data)

Category	Item	Value to set
Service/Reception	Service name	CSAFF_SAMPLE_WRITE_CSV
	Reception name	--
Target for take in	Operation name	CSAFF_SAMPLE_WRITE_CSV
	Message type	Response message (Body)
--	Message format	adpff_result

Legend:

--: Not applicable.

(c) Setting up activities

The following describes how to arrange and define the activities in the figure below, define the data transformations, and connect the activities.

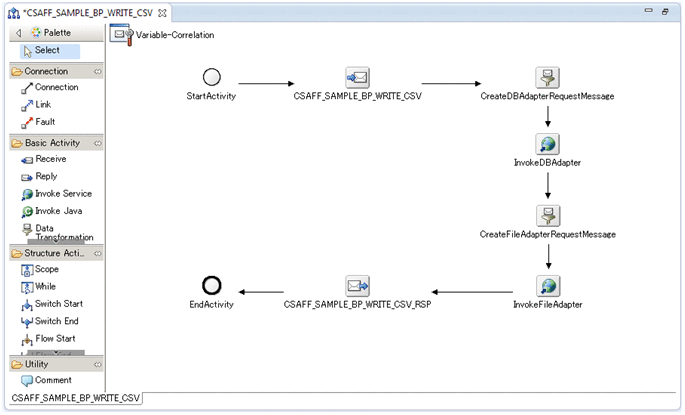

Figure D-12 Overall view of business process definition (sample for writing CSV data)

Arranging and defining activities

In the sample for writing CSV data, set up the activities shown in the following table.

Table D-63 List of activities (sample for writing CSV data)

Activity	Activity name	Description
Reception	CSAFF_SAMPLE_BP_WRITE_CSV	Receives messages into the business process.
Reply	CSAFF_SAMPLE_BP_WRITE_CSV_RSP	Issues a response from the business process.
Invoke Service	InvokeFileAadapter	Invokes the file adapter.
Invoke Service	InvokeDBAdapter	Invokes the DB adapter.
Data transformation	CreateFileAdapterRequestMessage	Transforms a response message from the DB adapter to a request message for the file adapter.
Data transformation	CreateDBAdapterRequestMessage	Transforms the request message of the business process to a request message for the DB adapter.

To position and set up an activity:

1. In the palette, click the basic or structure activity you want to place on the canvas.
   The activity you clicked is selected.

2. Click the appropriate location on the canvas.
   The selected activity is placed on the canvas. You can reposition the activity by dragging it with your mouse.

3. Double-click the activity on the canvas.
   A dialog box appears in which you can enter settings for the activity you double-clicked.

4. Enter the necessary information in the dialog box.
   For details on the information you need to set, see Activity settings (sample for writing CSV data).

5. Click OK.
   The dialog box for the activity closes.

6. Repeat steps 1 to 5 for each activity.

Activity settings (sample for writing CSV data)

The tables below show the settings for the business process activities used in the sample for writing CSV data. You do not need to set items that do not appear in this table.

Table D-64 Settings for CSAFF_SAMPLE_BP_WRITE_CSV

Item	Value to set
Activity name	CSAFF_SAMPLE_BP_WRITE_CSV
Operation name	CSAFF_SAMPLE_BP_WRITE_CSV
Body allocated variable	CSAFF_BP_RequestMessage
Communication model	Sync
Instance generation	Yes

Table D-65 Settings for CSAFF_SAMPLE_BP_WRITE_CSV_RSP

Item	Value to set
Activity name	CSAFF_SAMPLE_BP_WRITE_CSV_RSP
Operation name	CSAFF_SAMPLE_BP_WRITE_CSV
Body allocated variable	CSAFF_ResponseMessage

Table D-66 Settings for InvokeFileAadapter (sample for writing CSV data)

Item		Value to set
Activity name		InvokeFileAadapter
Service name		CSAFF_SAMPLE_WRITE_CSV
Operation name		CSAFF_SAMPLE_WRITE_CSV
Communication model		Sync
Request message	Body allocated variable	CSAFF_RequestMessage
Response message	Body allocated variable	CSAFF_ResponseMessage

Table D-67 Settings for InvokeDBAdapter (sample for writing CSV data)

Item		Value to set
Activity name		InvokeDBAdapter
Service name		CSAFF_SAMPLE_DB
Operation name		CSAFF_SAMPLE_DB
Communication model		Sync
Request message	Body allocated variable	CSAFF_DB_RequestMessage
Response message	Body allocated variable	CSAFF_DB_ResponseMessage

Table D-68 Settings for CreateFileAdapterRequestMessage (sample for writing CSV data)

Item	Value to set
Activity name	CreateFileAdapterRequestMessage
Source Variables	CSAFF_BP_RequestMessage
	CSAFF_DB_ResponseMessage
Destination Variable	CSAFF_RequestMessage
Data TransDefn File	SAMPLE_WRITE_CSV_DT2

Table D-69 Settings for CreateDBAdapterRequestMessage (sample for writing CSV data)

Item	Value to set
Activity name	CreateDBAdapterRequestMessage
Source Variables	CSAFF_BP_RequestMessage
Destination Variable	CSAFF_DB_RequestMessage
Data TransDefn File	SAMPLE_WRITE_CSV_DT1

Setting the data transformation definition for the CreateDBAdapterRequestMessage activity

Set the data transformation definition for the CreateDBAdapterRequestMessage activity. The following figure shows the data transformation definition you need to set:

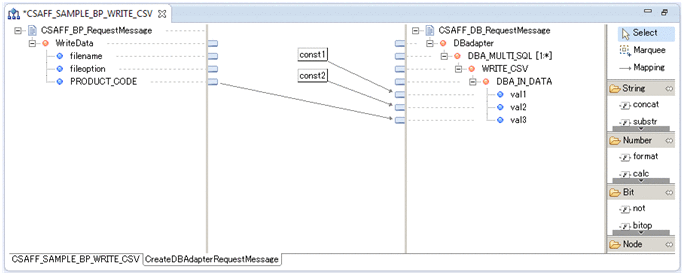

Figure D-13 Data conversion definition window for CreateDBAdapterRequestMessage activity (sample for writing CSV data)

To set the data transformation definition for the CreateDBAdapterRequestMessage activity:

1. Display the data transformation (mapping) definition screen from the CreateDBAdapterRequestMessage activity.
   After displaying the data transformation (mapping) definition screen, the Select Root Element dialog box appears.

2. Select the root elements for all logical schema names.
   The OK button becomes available.

3. Click OK.
   The schemas of the selected root elements appear in tree format in the transformation-source schema tree viewer and the transformation-destination schema tree viewer.

4. Perform mapping.
   Mapping involves the following tasks:

   • Placing and setting functions
     The following table shows the function settings:


     Table D-70 Function settings (sample for writing CSV data - CreateDBAdapterRequestMessage activity)

     Function	Function name	Value to set
     const	const1	Constant type	String
     		Value	PRODUCT_CODE
     const	const2	Constant type	String
     		Value	=

   • Setting inter-node mapping
     The following table shows the inter-node mapping settings:


     Table D-71 Mapping settings (sample for writing CSV data - CreateDBAdapterRequestMessage activity)

     Source node	Function	Target node
     --	const1	val1
     --	const2	val2
     PRODUCT_CODE	--	val3

     Legend:

     --: Not applicable.



5. In the data transformation (mapping) definition screen, right-click an appropriate location in the transformation-source schema tree viewer, transformation-destination schema tree viewer, or mapping viewer, and select Validate.
   Validation takes place.


Setting the data transformation definition for the CreateFileAdapterRequestMessage activity

Set the data transformation definition for the CreateFileAdapterRequestMessage activity. The following figure shows the data transformation definition you need to set:

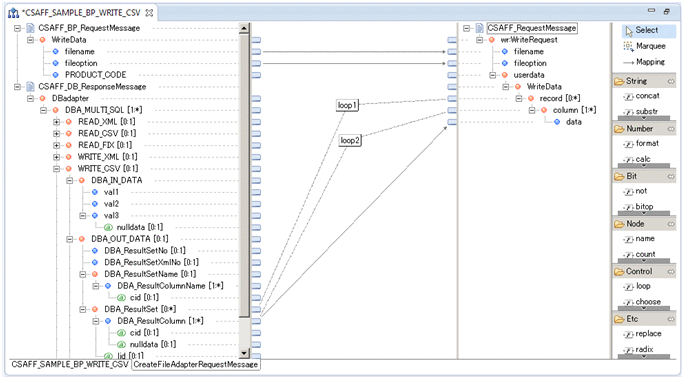

Figure D-14 Data conversion definition window for CreateFileAdapterRequestMessage activity (sample for writing CSV data)

To set the data transformation definition for the CreateFileAdapterRequestMessage activity:

1. Display the data transformation (mapping) definition screen from the CreateFileAdapterRequestMessage activity.
   After displaying the data transformation (mapping) definition screen, the Select Root Element dialog box appears.

2. Select the root elements for all logical schema names.
   The OK button becomes available.

3. Click OK.
   The schemas of the selected root elements appear in tree format in the transformation-source schema tree viewer and the transformation-destination schema tree viewer.

4. Perform mapping.
   Mapping involves the following tasks:

   • Placing and setting functions
     The following table shows the function settings:


     Table D-72 Function settings (sample for writing CSV data - CreateFileAdapterRequestMessage activity)

     Function	Function name	Value to set
     loop	loop1	Select Node	DBA_ResultSet#
     		Set Node Condition	Do not set
     loop	loop2	Select Node	DBA_ResultColumn#
     		Set Node Condition	Do not set

     #

     DBA_ResultSet and DBA_ResultColumn use the information under the WRITE_CSV node.



   • Setting inter-node mapping
     The following table shows the inter-node mapping settings:


     Table D-73 Mapping settings (sample for writing CSV data - CreateFileAdapterRequestMessage activity)

     Source node	Function	Target node
     --	loop1	record
     --	loop2	column
     filename	--	filename
     fileoption	--	fileoption
     DBA_ResultColumn#	--	data

     Legend:

     --: Not applicable.

     #

     DBA_ResultColumn uses information under the WRITE_CSV node.



5. In the data transformation (mapping) definition screen, right-click an appropriate location in the transformation-source schema tree viewer, transformation-destination schema tree viewer, or mapping viewer, and select Validate.
   Validation takes place.


Connecting activities

In the sample for writing CSV data, connect the activities as shown in the following table.

Table D-74 Activity connections (sample for writing CSV data)

Connection-source activity	Connection-target activity
Start	CSAFF_SAMPLE_BP_WRITE_CSV
CSAFF_SAMPLE_BP_WRITE_CSV	CreateDBAdapterRequestMessage
CreateDBAdapterRequestMessage	InvokeDBAdapter
InvokeDBAdapter	CreateFileAdapterRequestMessage
CreateFileAdapterRequestMessage	InvokeFileAadapter
InvokeFileAadapter	CSAFF_SAMPLE_BP_WRITE_CSV_RSP
CSAFF_SAMPLE_BP_WRITE_CSV_RSP	Finish

To connect the activities:

1. On the palette, click Connection.
   Connection mode is selected.
   When you align your cursor with an activity that can be specified as a connection source, the background color of the activity changes.

2. On the canvas, click the activity that you want to serve as the connection source.
   The activity is set as the connection source.
   If you then align your cursor with another activity, the background color of the activity changes if it can be specified as a connection target.

3. On the canvas, click the activity that you want to serve as the connection target.
   The activity you selected as the connection source is connected to the activity you selected as the connection target.


(d) Saving and validating the business process

To save and validate the business process:

1. Review the definition contents, and then save file adapter settings by selecting File and then Save from the Eclipse menu.
   In properties view, set CSAFF_B5 as the service ID of the business process.

2. Validate the business process settings.
   Select Verify from the pop-up list displayed when you right-click the Service Definition List in the tree view. The results appear in Console View.


Deploy the file adapter and business process and start them on the server.

To distribute the file adapter and business process deployment definitions:

1. Right-click the Service Definition List in the tree view, and select Deploy all services to server and start.
   If the file adapter or business process fails to start, a dialog box appears describing the nature of the error. Look up the message ID displayed in the error details and take the appropriate action.

   If you are not logged in, the Account Verification window appears. In this case, perform step 2.

2. Enter admin in the User ID field and the Password field, and then click OK.
   A message indicating that account verification is in progress appears, followed by a message indicating whether it was successful.


Create the table the sample business process will access in the database.

Open HiRDB SQL Executer and execute the following SQL statement:

CREATE TABLE CSAFF_SAMPLE_WC
(ORDER_NO INT,
 CUSTOMER_CODE CHAR(5),
 PRODUCT_CODE CHAR(4),
 ORDER_COUNT INT);
INSERT INTO CSAFF_SAMPLE_WC VALUES(1001,'AA001','1001',5);
INSERT INTO CSAFF_SAMPLE_WC VALUES(1002,'AB002','1001',1);
INSERT INTO CSAFF_SAMPLE_WC VALUES(1003,'AA001','1102',3);
INSERT INTO CSAFF_SAMPLE_WC VALUES(1004,'XA005','1103',1);
INSERT INTO CSAFF_SAMPLE_WC VALUES(1005,'AA001','1105',1);

Note

Use ADMIN as the user ID.

The following describes how to create a request message by editing the sample request message used when executing the business process.

1. Open the sample request message file in a text editor.
   The sample request message file is service-platform-installation-directory\CSC\custom-adapter\File\sample\write_csv\write_csv_message.csv.

2. Add the part in italics below:


   <?xml version="1.0" encoding="UTF-8"?>
   <WriteData>
     <filename>service-platform-installation-directory\CSC\custom-adapter\File\sample\write_csv\write_csv_data.csv</filename>
     <fileoption>mode=new</fileoption>
     <PRODUCT_CODE>1001</PRODUCT_CODE>
   </WriteData>

3. Save the file.

To execute the sample, start the business process from the service requester.

The flow of service requester processing is as follows:

1. Service requester execution
   The request message of the business process is used as the request message of the file adapter without transformation.

2. DB adapter execution
   Data that matches the conditions specified in the request message is acquired from the database.

3. Create file adapter message
   The response message from the DB adapter is transformed to a request message for the file adapter.

4. File adapter execution
   The file specified in the request message is output.

5. Service requester termination
   The response message from the file adapter is used without transformation as the response message of the business process.


To execute the service requester:

1. Navigate to service-platform-installation-directory\CSC\custom-adapter\File\sample\bin.
2. Execute request.bat.
   Execute request.bat in the following format:


   request write_csv service-platform-installation-directory\CSC\custom-adapter\File\sample\write_csv\write_csv_message.xml

Reference note

The data is output to the following file:

service-platform-installation-directory\CSC\custom-adapter\File\sample\write_csv\write_csv_data.csv
