<?xml version="1.0" encoding="UTF-8"?>
<schema xmlns="http://www.w3.org/2001/XMLSchema" targetNamespace="http://www.example.org/RequestXML" xmlns:tns="http://www.example.org/RequestXML">
 <element name="request" type="string"></element>
</schema>

<?xml version="1.0" encoding="UTF-8"?>
<schema xmlns="http://www.w3.org/2001/XMLSchema" targetNamespace="http://www.example.org/RequestXML" xmlns:tns="http://www.example.org/RequestXML">
 <element name="response" type="string"></element>
</schema>

/* All Rights Reserved. Copyright (C) 2008, Hitachi, Ltd. */
package service;

/**
 * Count value fluctuation and count value acquisition class (viewed as a service)
 * The count value is always 0 or more
 */
public class Counter {
 /**
 * Count value (always 0 or more)
 */
 protected int count;
 /**
 * Constructor
 * Initial value of @param init count
 * @throws IllegalArgumentException An invalid value below 0 was specified.
 * @return void
 */
 public Counter(int init) {

 if (init < 0) {
 throw new IllegalArgumentException();
 }
 this.count = init;
 }
 /**
 * Increment the count by 1
 * @return void
 */
 public void increment() {
 ++this.count;
 }

 /**
 * Decrement the count by 1
 * @throws IllegalStateException Invoked when the count was 0 o less.
 * @return void
 */
 public void decrement() {
 if (this.count <= 0) {
 throw new IllegalStateException();
 }
 --this.count;
 }
 /**
 * Acquire the count value
 * @return int Count value
 */
 public int getCount() {
 return this.count;
 }
}

/* All Rights Reserved. Copyright (C) 2008, Hitachi, Ltd. */
package protocolconverter;

import java.util.Properties;

import javax.xml.parsers.*;
import org.w3c.dom.*;
import jp.co.Hitachi.soft.csc.msg.adapter.custom.*;

import service.Counter;
/**

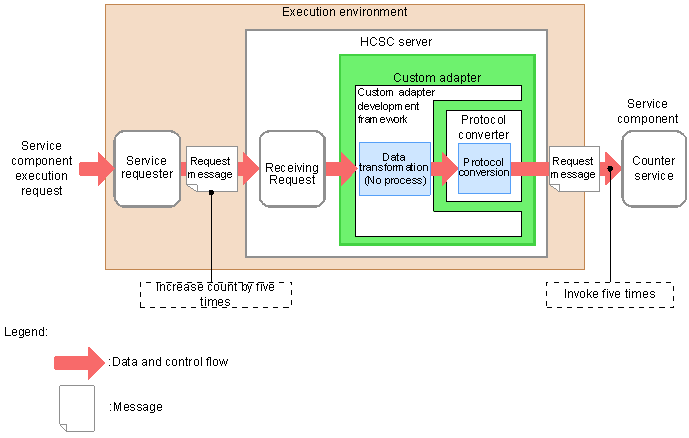

 * Implementation class of custom protocol converter interface
 */
public class MyProtocolConverter implements CSCMsgCustomProtocolConverter {
 /**
 * Adapter context
 */
 private CSCMsgCustomAdapterContext adapterContext;
 /**
 * Counter class (viewed as a service)
 */
 private Counter counter;
 /**
 * Used to create a DOM. XML message
 */
 private DocumentBuilderFactory docBuilderFactory;
 private DocumentBuilder docBuilder;
 /**
 * public default constructor (mandatory)
 */
 public MyProtocolConverter() { }
 /**
 * Invoked when the custom adapter is started (before start is invoked).
 * Acquire the adapter context.
 * @param adapterContext Adapter context
 */
 public void setCustomAdapterContext(
 CSCMsgCustomAdapterContext adapterContext) {
 this.adapterContext = adapterContext;
 }
 /**
 * Invoked when the custom adapter is started (after setCustomAdapterContext is invoked).
 * Implement the initialization processing.
 * @throws CSCMsgCustomAdapterException An exception occurred in the custom adapter.
 */
 public void start() throws CSCMsgCustomAdapterException {
 try {
 log("start");

 Properties properties = this.adapterContext.getProperties();
 String init = properties.getProperty("init");
 if (init == null) {
 // The init value must definitely be specified
 throw new CSCMsgCustomAdapterException("init");
 }

 // Secure the resources (Resources used throughout the life cycle of the adapter)
 this.counter = new Counter(Integer.parseInt(init));

 docBuilderFactory = DocumentBuilderFactory.newInstance();
 //docBuilderFactory.setNamespaceAware(true);
 docBuilder = docBuilderFactory.newDocumentBuilder();
 } catch (CSCMsgCustomAdapterException e) {
 // Output the log required for failure analysis on the custom adapter side
 log(e);
 throw e;
 } catch (Exception e) { // Also catch RuntimeException
 // Output the log required for failure analysis on the custom adapter side
 log(e);
 // Throw again after wrapping with CSCMsgCustomAdapterException
 throw new CSCMsgCustomAdapterException("start failed", e);
 }
 }
 /**
 * Implement the service component invocation processing.
 * @param request Request message
 * @param response Response message
 * @throws CSCMsgCustomAdapterException An exception occurred in the custom adapter.
 */
 public void invoke(CSCMsgRequestMessage request,
 CSCMsgResponseMessage response)
 throws CSCMsgCustomAdapterException {

 try {
 log("invoke [" + request.getOperationName() + "]");

 // Distribute by operation name
 if (request.getOperationName().equals("increment")) {
 // Count increment processing
 execIncrement(request, response);
 } else if(request.getOperationName().equals("decrement")) {
 // Count decrement processing
 try {
 execDecrement(request, response);
 } catch(IllegalStateException e) { // Failed to decrement count
 // Log output
 log(e);
 // Fault setting
 response.setFault("invoke error", "decrement failed",
 this.adapterContext.getAdapterName(), (Document)null);
 }
 } else {
 throw new CSCMsgCustomAdapterException("unknown operation");
 }
 // Output current count
 log("Count:" + counter.getCount());
 } catch (CSCMsgCustomAdapterException e) {
 // Output the log required for failure analysis on the custom adapter side
 log(e);
 throw e;
 } catch (Exception e) { // Also catch RuntimeException
 // Output the log required for failure analysis on the custom adapter side
 log(e);
 // Throw again after wrapping with CSCMsgCustomAdapterException
 throw new CSCMsgCustomAdapterException("invoke failed", e);
 }
 }
 /**
 * Count increment processing
 * @param request Request message
 * @param response Response message
 * @throws CSCMsgCustomAdapterException An exception occurred in the custom adapter.
 * @throws CSCMsgIllegalMessageTypeException The message is not in the binary format.
 * @throws CSCMsgInvalidMessageException An invalid message is specified.
 */
 private void execIncrement(
 CSCMsgRequestMessage request,
 CSCMsgResponseMessage response)
 throws CSCMsgCustomAdapterException,
 CSCMsgIllegalMessageTypeException,
 CSCMsgInvalidMessageException {
 // Asynchronous operation: increment

 if (response != null) {
 // The communication model is synchronous
 throw new CSCMsgCustomAdapterException("Invalid communication model");
 }

 if (request.getMessageType() != CSCMsgMessageConstant.MESSAGE_TYPE_BINARY) {
 // The message is not in the binary format
 throw new CSCMsgCustomAdapterException("Invalid message format (Request)");
 }

 byte[] data = request.getBytes();
 if (data.length != 1) {
 throw new CSCMsgCustomAdapterException("Invalid data");
 }

 int loop = Math.abs(data[0]);
 for (int i = 0; i < loop; ++i) {
 counter.increment();
 }
 }
 /**
 * Count decrement processing
 * @param request Request message
 * @param response Response message
 * @throws CSCMsgCustomAdapterException An exception occurred in the custom adapter.
 * @throws CSCMsgIllegalMessageTypeException The message is not in the binary format.
 * @throws CSCMsgInvalidMessageException An invalid message is specified.
 * @throws CSCMsgMultipleMessageInsertionException A message or fault information is already saved.
 */
 private void execDecrement(
 CSCMsgRequestMessage request,
 CSCMsgResponseMessage response)
 throws CSCMsgCustomAdapterException,
 CSCMsgIllegalMessageTypeException,
 CSCMsgInvalidMessageException,
 CSCMsgMultipleMessageInsertionException {
 // Synchronous operation: decrement

 if (response == null) {
 // The communication model is asynchronous
 throw new CSCMsgCustomAdapterException("Invalid communication model");
 }

 if (request.getMessageType() != CSCMsgMessageConstant.MESSAGE_TYPE_XML) {
 // The message is not in the XML format
 throw new CSCMsgCustomAdapterException("Invalid message format (Request)");
 }

 if (response.getMessageType() != CSCMsgMessageConstant.MESSAGE_TYPE_XML) {
 // The message is not in the XML format
 throw new CSCMsgCustomAdapterException("Invalid message format (Response)");
 }
 // Request message analysis processing
 NodeList nodeList = request.getXMLDocument().getElementsByTagName("request");
 if (nodeList.getLength() != 1) {
 // The root node cannot be found
 throw new CSCMsgCustomAdapterException("Invalid request message");
 }
 Text text = (Text)nodeList.item(0).getChildNodes().item(0);

 int loop = Math.abs(Integer.parseInt(text.getNodeValue()));
 for (int i = 0; i < loop; ++i) {
 this.counter.decrement();
 }
 // Build response message
 Document responseDoc = docBuilder.newDocument();
 Element rootElement = responseDoc.createElement("response");
 responseDoc.appendChild(rootElement);
 Text countTextNode = responseDoc.createTextNode(Integer.toString(counter.getCount()));
 rootElement.appendChild(countTextNode);

 // Save response message
 response.setXMLDocument(responseDoc);
 }
 /**
 * Perform termination processing and resource release
 */
 public void stop() {
 log("stop");

 // Release resources
 this.counter = null;
 this.adapterContext = null;
 this.docBuilderFactory = null;
 this.docBuilder = null;
 }
 /**
 * Log output
 * @param message Message to be output
 */
 public void log(String message) {
 // The output results in standard output are output in the user output log
 System.out.printf("[%s] %s\n",
 this.adapterContext.getAdapterName(), message);
 System.out.flush();
 }
 /**
 * Log output
 * @param message Exception to be output
 */
 public void log(Exception e) {
 // The output results in standard error output are output in the user error log
 e.printStackTrace();
 System.err.flush();
 }
}

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE properties SYSTEM "http://java.sun.com/dtd/properties.dtd">
<properties>
<entry key="classname">protocolconverter.MyProtocolConverter</entry>
</properties>

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE properties SYSTEM "http://java.sun.com/dtd/properties.dtd">
<properties>
<entry key="init">1</entry>
</properties>

framework_properties.xml
protocolconverter/CustomProtocolConverter.class
service/Counter.class

jar cf ..\MyProtocolConverter.jar .\

jar cf ..\CustomAdapter.ear .\
