2.4.1 Flow of defining FTP reception

The following figure shows the flow of defining FTP reception:

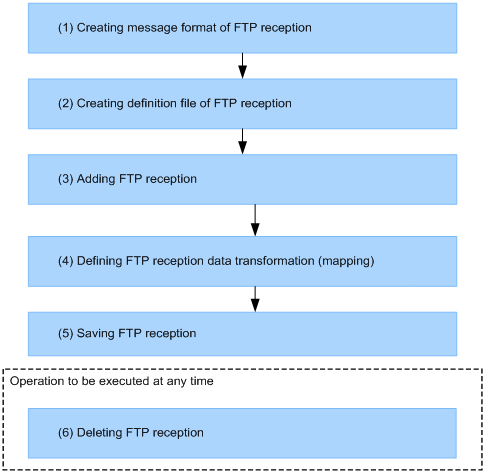

Figure 2-4 Flow of setting FTP reception

[Figure]

The activities to be performed when defining FTP reception are described here.

Organization of this subsection: (1) Creating message format of FTP reception; (2) Creating definition file of FTP reception; (3) Adding FTP reception; (4) Defining data transformation of FTP reception (mapping); (5) Saving FTP reception; (6) Deleting FTP reception

(1) Creating message format of FTP reception

Create the format of messages to be used in FTP reception.

For details on creating the message format of FTP reception, see 2.4.2 Creating message format of FTP reception.

(2) Creating definition file of FTP reception

Create the definition file to be used in FTP reception and store it at the specified location.

For details on creating the definition file of FTP reception, see 2.4.3 Creating definition file of FTP reception.

(3) Adding FTP reception

Add FTP reception using wizard and service adapter definition screen.

For details on the procedure for adding FTP reception, see 2.4.4 Adding FTP reception.

(4) Defining data transformation of FTP reception (mapping)

Define data transformation of message format definition files of the conversion source and conversion destination using the data transformation definition screen.

For details on defining data transformation, see 6. Defining Data Transformation in the manual Service Platform Basic Development Guide.

For details on the data transformation definition screen, see 1.2.5 Data transformation definition screen in the manual Service Platform Reference Guide.

(5) Saving FTP reception

You must save the definition information of FTP reception in the repository, if necessary.

For details on saving FTP reception, see 2.9 Saving a user-defined reception.

(6) Deleting FTP reception

You can delete the unwanted FTP reception, if necessary.

For details on deleting FTP reception, see 2.12 Deleting a User-Defined Reception.
