A MIME part consists of 1 root part and 0 or more attachment parts.

The root part is coded at the beginning of the MIME part. After the root part, the attachment part is coded.

The arguments and return values specified in the Java interface are mapped in the attachment part. The following table describes the relationship between the contents specified in the Java interface and the coding order in the attachment part:

Table 28-8 Contents specified in Java interface and coding order of the attachment part

The following is an example of mapping the Java interface and attachment parts:

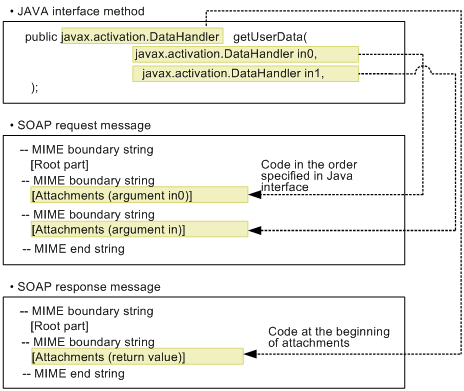

Figure 28-5 Example of mapping the Java interface and attachment parts

The Content-Id of the corresponding attachment part is coded in the CID URL scheme that is coded in the SOAP Body of the root part. The corresponding attachment part is referenced from the root part using the Content-Id.

The following are some of the SOAP Messages with attachments. The part in bold is the CID URL scheme and the Content-Id of the corresponding attachment part.

--uuid:73a28380-5de5-45e8-af15-c879e65d62a0
Content-Type:text/xml

<?xml version="1.0" ?>
<S:Envelope xmlns:S="http://schemas.xmlsoap.org/soap/envelope/">
 <S:Body>
 <getUserData xmlns="http://localhost">
 <in0>cid:d10ed73c-e9b7-418e-8201-ba920cccb214@jaxws.cosminexus.com</in0>
 </getUserData>
 </S:Body>
</S:Envelope>

--uuid:73a28380-5de5-45e8-af15-c879e65d62a0
Content-Id:<d10ed73c-e9b7-418e-8201-ba920cccb214@jaxws.cosminexus.com>
Content-Type:text/plain
Content-Transfer-Encoding:binary

Attached-data
--uuid:73a28380-5de5-45e8-af15-c879e65d62a0--

The following table describes the mapping between the attachment extensions and the MIME types set by default:

Table 28-9 Correspondence table of attachment extensions and MIME types

If extensions that do not exist in this table are specified, 'application/octet-stream' is set in the MIME type.

When the attachment data size specified in the Java interface is null and when data of 0 or more bytes exists, the method of mapping to the attachment part differs. The following points describe the mapping in each of the cases:

(a) When the attachment data size is null

When the attachment data size is null, the attachment data size is not mapped to the attachment part. Only the SOAP Envelope is coded without generating the MIME part. Also, an empty element is specified in the element of the relevant argument of the SOAP Body.

The following is an example of mapping when the attachment data size is null:

• Web Service invoking program


  ... UserInfoService service = new UserInfoService(); UserInfo impl = service.getUserInfo(); result = impl.getUserData( null ); ...

• SOAP Message


  <?xml version="1.0" ?> <S:Envelope xmlns:S="http://schemas.xmlsoap.org/soap/envelope/"> <S:Body> <getUserData xmlns="http://localhost"> </getUserData> </S:Body> </S:Envelope>

(b) When the attachment data size is 0 or more bytes

When the attachment data size is 0 or more bytes, the attachment data size is mapped to the attachment part. In this case, the root part and attachment part together form the multi part. When multiple attachments are specified in the Java interface, multiple attachment parts are coded. However, for 0 bytes, the MIME body inside the attachment part is empty.
