This subsection describes the rules for mapping WSDL to the Java type of attachments.

Rules for mapping WSDL to the Java type of attachments

1. The swaRef type of WSDL is mapped to the Java type of attachments.

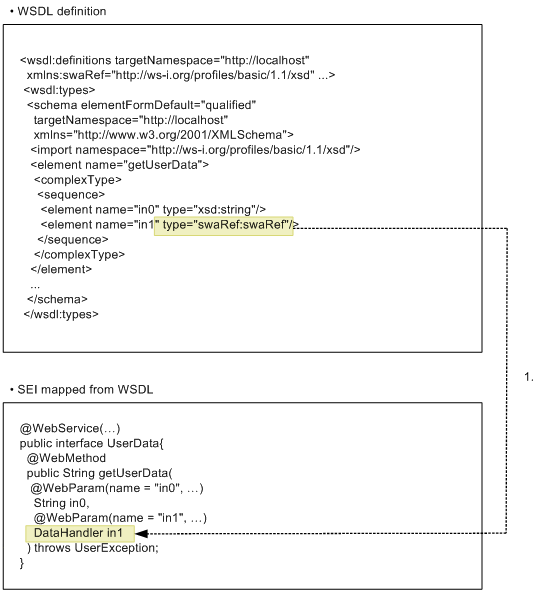

The following figure shows example of mapping WSDL to the Java type of attachments. The numbers in 'Rules for mapping WSDL to the Java type of attachments' above correspond to the numbers in the following figure:

Figure 28-3 Example of mapping WSDL to Java type of attachments
