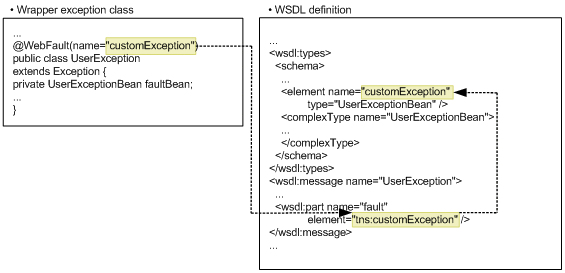

You use the name element to customize the local name of the global element mapped from the fault bean.

Specify the name element using one-byte alphanumeric characters and underscore (_). If other characters are specified, the operations might not function properly (error message is not output).

You specify the targetNamespace element to customize the name space of the global element mapped from the fault bean.

In the targetNamespace element, the http:// or urn: protocol is specified as a name space. The following name space formats and strings can be specified:

• Protocol
  Code the name space protocol using the http:// or urn: protocol. If a protocol other than http:// or urn: (such as https://, file://) is coded, an error message is output to the standard error output and logs (KDJW61067-E).
  Also, if you code the name space using the relative path, an error message is output to the standard error output and logs (KDJW61068-E).

• Name space coding format
  The following formats cannot be coded in the name space. If the following formats are used for coding, an error message is output to the standard error output and log (KDJW61069-E):

  • Query string (example) http://example.com/?a=b
  • Anchor (example) http://example.com/index.html#anchor
  • Port number (example) http://example.com:8080/
  • User name/ password (example) http://user:password@example.com
• Strings that can be coded
  In the segments separated using the separation characters, forward slash (/) or period (.), you can code a string that fulfills all the conditions described in the following table. However, when you perform the customization using the binding declaration, you can code character strings that can be used as the xsd:NCName type of XML Schema specifications.


  Table 16-25 Conditions for the strings that can be coded in the name space (javax.xml.ws.WebFault)

  No.	Conditions	Examples of invalid strings	Operation when an invalid string is specified
  1	Strings using only one-byte alphanumeric characters (0 to 9, A to Z, a to z)	http://Hitachi.com http://133.145.224.19/ http://[1080:2C14;D30:BA04:275:806:270C:418A]/	The operations might not function properly (error message is not displayed).
  2	Strings other than Java reserved words	http://hitachi.com/abstract	The operations might not function properly.
  3	Strings that do not begin with numeric characters	http://1hitachi.com

The faultBean element specifies the class name of the generated fault bean using a fully qualified name. If the wrapper exception class has the getFaultInfo method that returns the javax.xml.ws.WebFault annotation and the fault bean, the fault bean is not generated even if the faultBean element is specified.

The precautions for specifying the faultBean element are as follows:

• Specify the faultBean element using one-byte alphanumeric characters and underscore (_). If other characters are specified, the operations might not function properly (error message is not output).
• Specify a value complying with the Java identifier naming rules provided in the Java language specifications. If the value does not comply with the Java identifier naming rules, an error message is output to the standard error output and logs (KDJW61039-E).

Specify the messageName element when customizing the fault message name (the name attribute of the wsdl:message element referenced from the wsdl:fault element) corresponding to the wrapper exception class.

Specify the messageName element with one- byte alphanumeric characters and underscore (_). If you specify the messageName element with any other character, the operation is not guaranteed (no error message is output).
