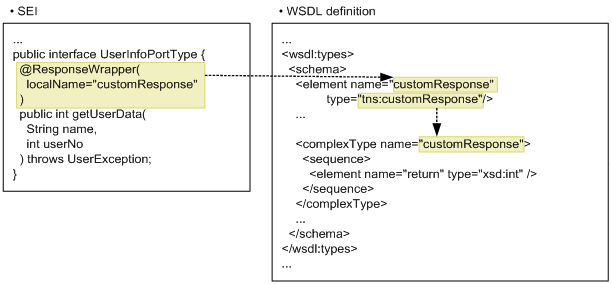

You specify the localName element to customize the mapping of the local names of the response wrapper element. If the element value is specified in the localName element, you can also customize the type name of the wrapper element.

Specify the localName element using one-byte alphanumeric characters and underscore (_). If other characters are specified, the operations might not function properly (error message is not output).

You specify the targetNamespace element to customize the mapping of the name spaces of the response wrapper element.

In the targetNamespace element, the http:// or urn: protocol is specified as a name space. The following name space formats and strings can be specified:

• Protocol
  Code the name space protocol using the http:// or urn: protocol. If a protocol other than http:// or urn: (such as https://, file://) is coded, an error message is output to the standard error output and logs (KDJW61049-E).
  Also, if you code a name space using the relative path, an error message is output to the standard error output and logs (KDJW61050-E).

• Name space coding format
  The following formats cannot be coded in the name space. If the following formats are used for coding, an error message is output to the standard error output and log (KDJW61051-E):

  • Query string (example) http://example.com/?a=b
  • Anchor (example) http://example.com/index.html#anchor
  • Port number (example) http://example.com:8080/
  • User name/ password (example) http://user:password@example.com
• Strings that can be coded
  In the segments separated using the separation characters, forward slash (/) or period (.), you can code a string that fulfills all the conditions described in the following table:


  Table 16-23 Conditions for the strings that can be coded in the name space (javax.xml.ws.ResponseWrapper)

  No.	Condition	Example of invalid string	Operation when an invalid string is specified
  1	Strings using only one-byte alphanumeric characters (0 to 9, A to Z, a to z)	http://Hitachi.com http://133.145.224.19/ http://[1080:2C14;D30:BA04:275:806:270C:418A]/	The operations might not function properly (error message is not displayed).
  2	Strings other than Java reserved words	http://hitachi.com/abstract	The operations might not function properly.
  3	Strings that do not begin with numeric characters	http://1hitachi.com

The className element specifies the class name of the generated response bean using a fully qualified name.

The precautions for specifying the className element are as follows:

• Specify the className element using a period (.) that is the delimiter of the package, one-byte alphanumeric characters, underscores (_), and dollar mark ($). If other characters are specified, the operations might not function properly (error message is not output).
• Specify a value complying with the Java identifier naming rules provided in the Java language specifications. If the value does not comply with the Java identifier naming rules, an error message is output to the standard error output and logs (KDJW61041-E).

Specify the partName element when customizing the part name of the output message that references the request wrapper element.

Specify the partName with one-byte alphanumeric characters and underscore (_). If you specify partName with any other character, the operation is not guaranteed. (no error message is output).
