The Web Service Implementation Class and the WSDL service and port are mapped in accordance with the JAX-WS 2.2 specifications. The following figure shows an example of mapping:

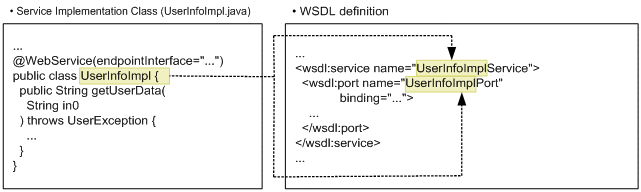

Figure 16-10 Example of mapping the Web Service Implementation Class to the service and port

The following are the rules for mapping the Web Service Implementation Class to the service and port:

• If the WSDL service name is not customized using the serviceName element of the javax.jws.WebService annotation, the value with "Service" suffixed to the name of the Web Service Implementation Class is assumed as the value of the name attribute of the wsdl:service element.
• If the WSDL port name is not customized using the portName element of the javax.jws.WebService annotation, the value with "Port" suffixed to the value of the name element of the javax.jws.WebService annotation is assumed as the value of the name attribute of the wsdl:port element.
• If the portName attribute and name attribute of the javax.jws.WebService annotation are not used for customization, the value with "Port" suffixed to the name of the Web Service Implementation Class is assumed as the value of the name attribute of the wsdl:port element.

In the Web Service Implementation Class name, you can code a string that fulfills all the conditions described in the following table:

Table 16-9 Conditions for strings that can be coded in the Web Service Implementation Class name

No.	Conditions	Examples of invalid strings	Operation when an invalid string is specified
1	Strings using only one-byte alphanumeric characters (0 to 9, A to Z, a to z) and underscore (_)	Hitachi_service	The operations might not function properly (error message is not displayed).
2	Strings complying with the naming rules of the Java identifiers provided in the Java language specifications	abstract	When the apt command is executed, a compilation error occurs and the processing ends. For details, see the JDK documentation.
