This section describes the skeleton class that implements SEI.
You can use the cjwsimport command to map the WSDL services and ports to the skeleton class. The following figure shows an example of mapping the WSDL services and ports to the skeleton class.

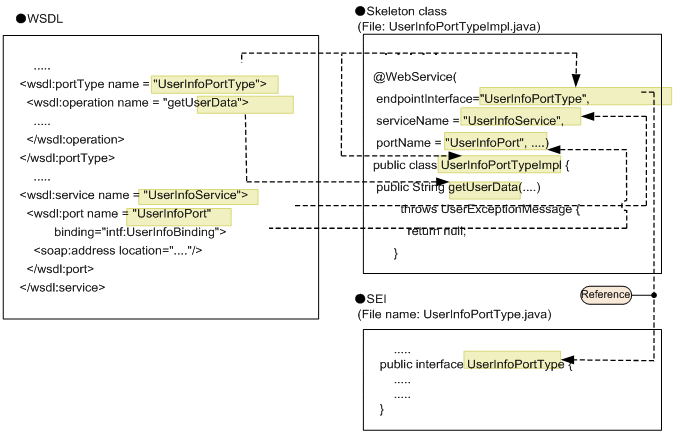

Figure 15-14 Example of mapping the WSDL services and ports to the skeleton class
![[Figure]](FIGURE/ZU151100.GIF)
When mapping to the skeleton class, append the suffix Impl to the WSDL port type name (the name attribute of the wsdl:portType element).
