The WSDL operations and Java method names are mapped in accordance with the JAX-WS 2.2 specifications. The following figure shows an example of mapping:

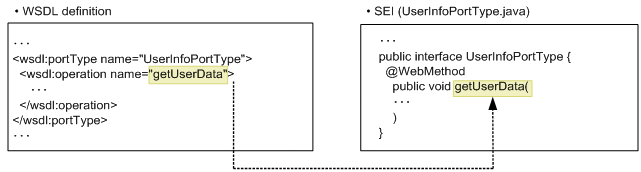

Figure 15-3 Example of mapping operations to method names

During the mapping, the first character of the WSDL operation name is converted into a lower case character. The prefixes get and set are not added. The following is an example of conversion:

Before conversion: OperationName

After conversion: operationName

In the operation name, you can code a string that fulfills all the conditions described in the following table. However, when customizing with the binding declaration, you can code the strings that can be used as xsd:NCName type of the XML Schema specification.

Table 15-5 Conditions for strings that can be coded in the operation name

No.	Conditions	Examples of invalid strings	Operations when invalid strings are specified
1	Strings using only one-byte alphanumeric characters (0 to 9, A to Z, a to z) and underscore (_)	Hitachi_operation	The operation might not function properly (error message is not displayed).
2	Strings other than Java reserved words#	abstract	An error message is output in the standard error output and log and the processing ends (KDJW51007-E).
3	Strings that do not begin with numeric characters	1User_operation	An error message is output in the standard error output and log and the processing ends (KDJW51029-E).

#

You cannot code strings such as 'Abstract' where the first character of the Java reserved word is in upper case (since the first character is converted into a lower case character due to mapping).

You can code 1 to 255 operations for one port type in WSDL. Also, in the child element of the operation, you can code one wsdl: input element, zero or one wsdl:output element, and 0 to 255 wsdl:fault elements.

The following table describes the relationship between the number of operations coded and the operations:

Table 15-6 Relationship between the number of operations coded and the operations

No.	Elements	Number of coding	Operations when invalid strings are specified
1	wsdl:operation	0	An error message is output in the standard error output and log and the processing ends (KDJW51029-E).
2		1 to 255	Terminates normally.
3		256 or more	An error message is output in the standard error output and log and the processing ends (KDJW51029-E).

The following table describes the relationship between the number of child elements coded for the operation and the operations:

Table 15-7 Relationship between the number of child elements coded for the operation and the operations

No.	Elements	Number of coding	Operations when invalid strings are specified
1	wsdl:input	0	An error message is output in the standard error output and log and the processing ends (KDJW51029-E).
2		1	Terminates normally.
3		2 or more	An error message is output in the standard error output and log and the processing ends (KDJW51029-E).
4	wsdl:output	0	If zero wsdl:fault elements are coded, the wsdl:output element is mapped to a one-way operation and the process ends successfully. If one or more wsdl:fault elements are coded, an error message is output in the standard error output and log and the processing ends (KDJW51029-E).
5		1	The wsdl:output element is mapped to the Request-response operation and the process ends successfully.
6		2 or more	An error message is output in the standard error output and log and the processing ends (KDJW51029-E).
7	wsdl:fault	0 to 255	Terminates normally.
8		256 or more	An error message is output in the standard error output and log and the processing ends (KDJW51029-E).
