The WSDL namespace and package name are mapped in accordance with the JAX-WS 2.2 specifications. For details, see the JAX-WS 2.2 specifications.

The following figure shows an example of mapping:

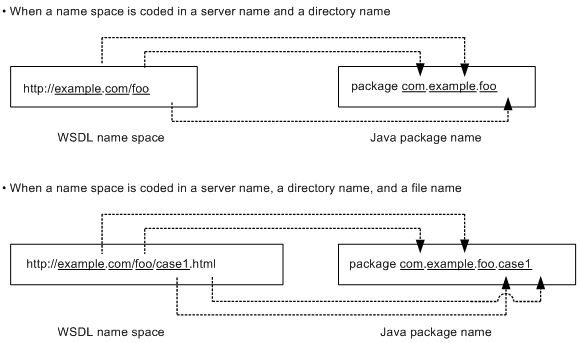

Figure 15-1 Example of mapping the namespace to the package name

This point describes the conditions for the namespace coded in WSDL.

• Protocol
  Code the namespace using http:// or urn: protocols. If you code the namespace using a protocol other than http:// or urn: (such as https://, file ://), an error message is output in the standard error output and log and the processing ends (KDJW51002-E).
  Also, when the relative path is used for coding, an error message is output in the standard error output and log and the processing ends (KDJW51003-E).

• Namespace coding format
  The following formats cannot be coded in the namespace. If namespace is coded in the following formats, an error message is output in the standard error output and log and the processing ends (KDJW51004-E):

  • Null character string
  • Query string (example) http://example.com/?a=b
  • Anchor (example) http://example.com/index.html#anchor
  • Port number (example) http://example.com:8080/
  • User name/ password (example) http://user:password@example.com
• Strings that can be coded
  In a segment demarcated with delimiters such as a forward slash (/) or period (.), you can code a character string that satisfies all the conditions described in the following table. However, when customizing with the binding declaration, you can code the strings in accordance with the rules in the RFC 2396 specifications.


  Table 15-2 Conditions for strings that can be coded in the namespace

  No.	Conditions	Examples of invalid strings	Operations when invalid strings are specified
  1	Strings using only one-byte alphanumeric characters (0 to 9, A to Z, a to z)	http://Hitachi.com	The operation might not function properly (error message is not displayed).
  2	Strings other than Java reserved words	http://hitachi.com/abstract	When mapping to the Java package name, an underscore (_) is added at the beginning of the Java reserved word. Example: com.hitachi._abstract
  3	Strings that do not begin with numeric characters	http://1hitachi.com	When mapping to the Java package name, an underscore (_) is added at the beginning of the string that begins with a numeric character. Example: com._1hitachi
