This subsection describes the example of system configuration and the procedure for setting the 1-to-1 node switching system of Application Server.
The following figure shows the example configuration for the 1-to-1 node switching system of the Management Server. Note that the subsequent points describe the system configuration example using this configuration example.

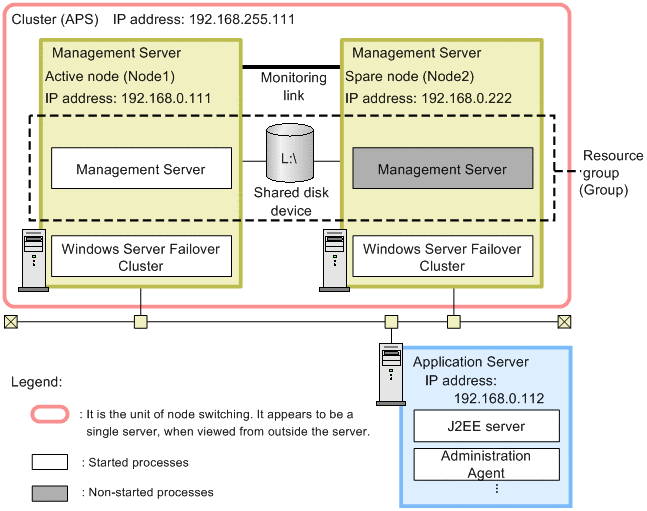

Figure 17-7 Configuration example of 1-to-1 node switching system for the Management Server (in Windows)
The executing node (active node) of the Management Server and the standby node (spare node) of the Management Server are deployed in 1-to-1 ratio.
In the 1-to-1 node switching system of the Management Server, first the cluster is built, and then the Management Server is defined as the active node (Node1 in the example) and spare node (Node2 in the example) in the cluster (APS in the example). Also, the active node and spare node are defined as one resource group (Group in the example) containing 'physical disk resource', 'IP address resource', 'network name resource', and 'general-purpose script resource'.
Note that in order to deploy the application server in a cluster configuration, set the alias IP address, and specify settings such that the running node inherits the alias IP address so that the client does not consider the nodes in the cluster. When there is 1-to-1 node switching system, the alias IP address is dynamically allocated by Windows Server Failover Cluster (cluster IP address).
When integrating the system with Windows Server Failover Cluster, settings must be specified for the Management Server and the Cluster Administrator. The following figure shows the procedure for setting up the 1-to-1 node switching system of the Management Server.

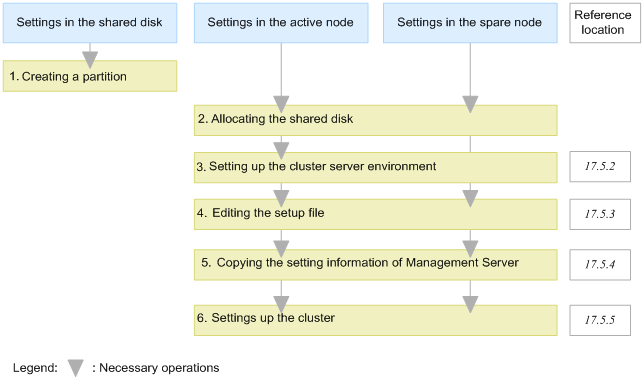

Figure 17-8 Procedure for setting the 1-to-1 node switching system in the management server (in Windows)
The following points describe the steps 1 through 6 in the above figure:
