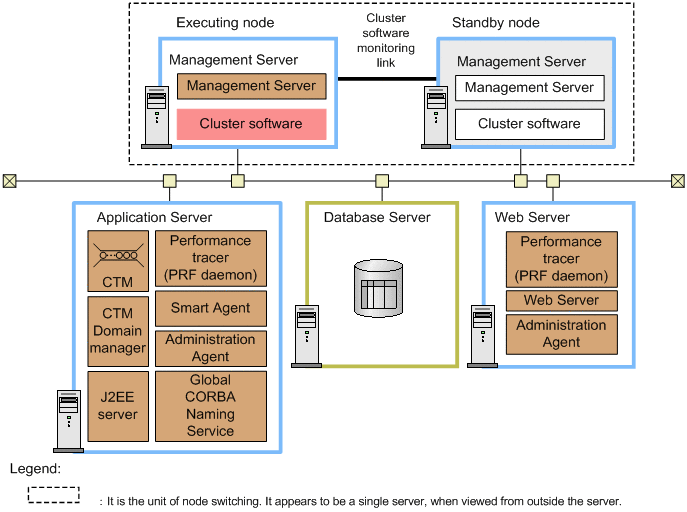

The following figure shows an example of system configuration for operating Management Server in the 1-to-1 node switching system by linking with cluster software:
Figure 17-1 Example system configuration for operating the Management Server in the 1-to-1 node switching system
You can execute the following types of operations in the 1-to-1 node switching system:
For details on the system configuration to be used for operating Application Server in the 1-to-1 node switching system, see 3.11.1 Configuration in which the executing and standby nodes of Application Server have 1-to-1 correspondence (When the transaction service is not used) and 3.11.2 Configuration in which the executing and standby nodes of Application Server have 1-to-1 correspondence (When the transaction service is used) in the uCosminexus Application Server System Design Guide. For details on the system configuration to be used for operating Management Server in the 1-to-1 node switching system, see 3.11.3 Configuration in which the executing and standby nodes of Management Server have 1-to-1 correspondence in the uCosminexus Application Server System Design Guide.
