The configuration files and header files consist of items that are common for all statistics files and individual items. An individual item differs for each target function. The following figure shows the configuration of a header file:
The following table describes the viewpoint of items that are common to all statistics files:
Table 3-7 Viewpoint of items that are common to all statistics files
Character string (character string output in a header file) | Description |
---|---|
Date# | The collection time of statistics files is displayed as YYYY/MM/DD hh:mm:ss.nnn. YYYY: Christian year, MM: month, DD: day, hh: hour, mm: minute, ss: seconds, nnn: milliseconds |
ObjectName | Information is displayed for each statistics file in the same format. |
StatsPath | Information that is specific for each statistics file is output. |
Character-string-showing-the-type-of-statistics.StartTime# | For each type of statistics, the time when the collection target became operational is output. The time is displayed in milliseconds from 1st January 1970, 00.00 hours onwards. |

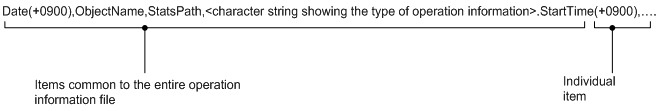

The information is output in the following format for each statistics file in the ObjectName:
Table 3-8 ObjectName format
Statistics file (file name) | Format of ObjectName |
---|---|
JavaVM (HJVMStats_YYYYMMDDhhmmTZ.csv) | com.cosminexus.management.j2ee:J2EEServer=J2EE-server-name,j2eeType=JVM,name=jvm |
Process resource (HOSStats_YYYYMMDDhhmmTZ.csv) | com.cosminexus.management.j2ee:J2EEServer=J2EE-server-name,j2eeType=OSResource,name=os |
Stateful Session Bean (HStatefulSessionBeanStats_YYYYMMDDhhmmTZ.csv) | com.cosminexus.management.j2ee:EJBModule=EJB-application-display-name,J2EEApplication=J2EE-application-display-name,J2EEServer=J2EE-server-name,j2eeType=StatefulSessionBean,mode=Operation-mode-of-application#1,name=Stateful-Session-Bean-name |
Stateless Session Bean (HstatelessSessionBeanStats_YYYYMMDDhhmmTZ.csv) | com.cosminexus.management.j2ee:EJBModule=EJB-application-display-name,J2EEApplication=J2EE-application-display-name,J2EEServer=J2EE-server-name,j2eeType=StatelessSessionBean,mode=Operation-mode-of-an-application#1,name=Stateless-Session-Bean-name |
Message-driven Bean (HmessageDrivenBeanStats_YYYYMMDDhhmmTZ.csv) | com.cosminexus.management.j2ee:EJBModule=EJB-application-display-name,J2EEApplication=J2EE-application-display-name,J2EEServer=J2EE-server-name,j2eeType=MessageDrivenBean,mode=Operation-mode-of-an-application#1,name=Message-driven-Bean-name |
DB Connector (HDBConnectorStats_YYYYMMDDhhmmTZ.csv) | com.cosminexus.management.j2ee:J2EEApplication=J2EE-application-display-name#2,J2EEServer=J2EE-server-name,ResourceAdapterModule=resource-adapter-display-name,j2eeType=ResourceAdapter,mode=Operation-mode-of-an-application#1,raType=resource-adapter-type#3,name=resource-adapter-display-name |
JCA resource (HJCAConnectionPoolStats_YYYYMMDDhhmmTZ.csv) | com.cosminexus.management.j2ee:J2EEServer=J2EE-server-name,ResourceAdapter=resource-adapter-display-name,j2eeType=JCAResource,mode=Operation-mode-of-an-application#1,raType=resource-adapter-type#3,app=J2EE-application-display-name#4,name=resource-adapter-display-name |
Transaction service (HJTAStats_YYYYMMDDhhmmTZ.csv) | com.cosminexus.management.j2ee:J2EEServer=J2EE-server-name,j2eeType=JTAResource,name=JTAResource |
Web application (HWebModuleStats_YYYYMMDDhhmmTZ.csv) | com.cosminexus.management.j2ee:J2EEApplication=J2EE-application-display-name,J2EEServer=J2EE-server-name,j2eeType=WebModule,mode=Operation-mode-of-an-application#1,name=Web-application-display-name |
Web container (HWebContainerStats_YYYYMMDDhhmmTZ.csv) | com.cosminexus.management.j2ee:J2EEServer=J2EE-server-name,j2eeType=WebContainer,name=WebContainer |
URL group (HWebURLGroupStats_YYYYMMDDhhmmTZ.csv) | com.cosminexus.management.j2ee:J2EEApplication=J2EE-application-display-name,J2EEServer=J2EE-server-name,WebModule=Web-application-name,j2eeType=WebURLGroup,mode=Operation-mode-of-application#1,name=Definition-name-for-controlling-the-number-of-concurrently-executing-threads-in-a-URL-group-unit |
The overview of individual items in each statistics file is given below. The individual items are displayed in the following format in a header file:
character-string-showing-type-of-the-statistics.item-name |
Each item is output by delimiting with a comma ( , ) after a character string that shows type of the statistics. The following table describes the character strings that show types of the statistics:
Table 3-9 Character strings showing type of the statistics
Type of the statistics | Character string showing type of the statistics |
---|---|
JavaVM heap size | HeapSize |
Frequency of copy garbage collection | CopyGCCount |
Frequency of full garbage collection | FullGCCount |
Number of classes loaded | LoadedClassCount |
Number of threads blocked due to monitor lock | ThreadBlockedCount |
Explicit heap size | EHeapSize |
Number of Explicit memory blocks in the Explicit heap area | EMemoryBlockCount |
Maximum size of Explicit memory block | EMemoryBlockMaxSize |
Maximum size of Explicit memory block acquired in an HTTP session | HTTPSessionEMemoryBlockMaxSize |
Number of Explicit memory blocks acquired in an HTTP session | HTTPSessionEMemoryBlockCount |
Explicit heap size managed by containers excluding the Explicit heap area acquired in an HTTP session | ContainerEHeapSize |
Explicit heap size managed by user applications and JavaVM | ApplicationEHeapSize |
Number of threads | ThreadCount |
Number of file descriptors | FileDescriptorCount |
Number of connection sessions | ActiveSessionCount |
Number of pooled instances | PooledInstanceCount |
Number of used instances in the pool | ActivePooledInstanceCount |
Number of messages received | MessageCount |
Number of pending requests | WaitingRequestCount |
Number of pooled PreparedStatement | PooledPreparedStatementCount |
Number of pooled CallableStatement | PooledCallableStatementCount |
Frequency of invoking the PrepareStatement method | InvokedPrepareStatementMethodCount |
Frequency of invoking the prepareCall method | InvokedPrepareCallMethodCount |
Hit frequency of PreparedStatement in the pool | PooledPreparedStatementHitCount |
Hit frequency of CallableStatement in the pool | PooledCallableStatementHitCount |
Number of pooled connections | PoolSize |
Number of used connections in the pool | ActivePoolSize |
Number of threads waiting for connection | WaitingThreadCount |
Number of connection failures | FailedRequestCount |
Number of transactions resolved | CompletionCount |
Number of transaction rollbacks | RolledbackCount |
Number of responded requests | ResponseCount |
Number of synchronous threads | ActiveThreadCount |
Number of requests exceeding the upper limit of the number of requests pending for execution | OverflowRequestCount |
Number of received requests | RequestCount |
Number of sessions | SessionCount |
Table 3-10 Item names of statistics files
Item name (a character string output in a header file) | Description |
---|---|
Count | Accumulation count or number of accumulations from the point at which the information, such as starting of the object, was acquired. |
HighWaterMark | Maximum value after the previous output of statistics files |
LowWaterMark | Minimum value after the previous output of statistics files |
Current | Current value |
UpperBound | Upper limit |
LowerBound | Lower limit |
The following sections describe the items that are output separately for each statistics file:
This section describes the information output to a statistics file of JavaVM. In the statistics file of JavaVM, you can investigate the statistics of JavaVM that is used by a J2EE server.
Table 3-11 Contents output to a JavaVM statistics file
Type of the statistics | Character string (character string output in a header file) |
---|---|
JavaVM heap size | HeapSize.UpperBound |
HeapSize.LowerBound | |
HeapSize.HighWaterMark | |
HeapSize.LowWaterMark | |
HeapSize.Current | |
Frequency of copy garbage collection#1#2 | CopyGCCount.Count |
Frequency of full garbage collection#2#3 | FullGCCount.Count |
Number of classes loaded | LoadedClassCount.HighWaterMark |
LoadedClassCount.LowWaterMark | |
LoadedClassCount.Current | |
Number of operational threads | ThreadCount.HighWaterMark |
ThreadCount.LowWaterMark | |
ThreadCount.Current | |
Number of threads blocked due to monitor lock | ThreadBlockedCount.HighWaterMark |
ThreadBlockedCount.LowWaterMark | |
ThreadBlockedCount.Current | |
Explicit heap size | EHeapSize UpperBound |
EHeapSize LowerBound | |
EHeapSize HighWaterMark | |
EHeapSize LowWaterMark | |
EHeapSize Current | |
Number of Explicit memory blocks in the Explicit heap area | EMemoryBlockCount HighWaterMark |
EMemoryBlockCount LowWaterMark | |
EMemoryBlockCount Current | |
Maximum size of Explicit memory block | EMemoryBlockMaxSize HighWaterMark |
EMemoryBlockMaxSize LowWaterMark | |
EMemoryBlockMaxSize Current | |
Maximum size of Explicit memory block acquired in an HTTP session#4 | HTTPSessionEMemoryBlockMaxSize.HighWaterMark |
HTTPSessionEMemoryBlockMaxSize.LowWaterMark | |
HTTPSessionEMemoryBlockMaxSize.Current | |
Number of Explicit memory blocks acquired in an HTTP session | HTTPSessionEMemoryBlockCount.HighWaterMark |
HTTPSessionEMemoryBlockCount.LowWaterMark | |
HTTPSessionEMemoryBlockCount.Current | |
Explicit heap size managed by containers excluding the Explicit heap area acquired in an HTTP session | ContainerEHeapSize.HighWaterMark |
ContainerEHeapSize.LowWaterMark | |
ContainerEHeapSize.Current | |
Explicit heap size managed by user applications and JavaVM#4 | ApplicationEHeapSize.HighWaterMark |
ApplicationEHeapSize.LowWaterMark | |
ApplicationEHeapSize.Current |
When you enable the monitoring of the threshold value of the frequency of full garbage collection, you must consider the frequency that is counted at these timings.
When you monitor the frequency of the occurrence of full garbage collection, you must consider the frequency that is counted at these timings.
This section describes the information output to a statistics file of a process resource. In the statistics file of a process resource, you can investigate the statistics of OS resources using J2EE server processes.
Table 3-12 Contents output to the statistics file of a process resource
Type of the statistics | Character string (character string output in a header file) |
---|---|
Number of threads created by J2EE server processes | ThreadCount.UpperBound#1 |
ThreadCount.LowerBound#2 | |
ThreadCount.HighWaterMark#2 | |
ThreadCount.LowWaterMark#2 | |
ThreadCount.Current#2 | |
Number of file descriptors that use J2EE server processes | FileDescriptorCount.UpperBound#3 |
FileDescriptorCount.LowerBound#3 | |
FileDescriptorCount.HighWaterMark#4 | |
FileDescriptorCount.LowWaterMark#4 | |
FileDescriptorCount.Current#4 |
This section describes the information output to a statistics file of a Stateful Session Bean. In the statistics file of Stateful Session Bean, you can investigate the statistics of Stateful Session Bean.
Table 3-13 Contents output to the statistics file of a Stateful Session Bean
Type of the statistics | Character string (character string output in a header file) | Remarks |
---|---|---|
Number of connected sessions | ActiveSessionCount.UpperBound | 0 is output when the maximum number of active sessions in a Stateful Session Bean is unlimited. |
ActiveSessionCount.LowerBound | This string will become invalid and -1 is output, since you cannot set a lower limit. | |
ActiveSessionCount.HighWaterMark | -- | |
ActiveSessionCount.LowWaterMark | -- | |
ActiveSessionCount.Current | -- |
This section describes the information output to a statistics file of a Stateless Session Bean. In the statistics file of Stateless Session Bean, you can investigate the statistics of Stateless Session Bean.
Table 3-14 Contents output to the statistics file of a Stateless Session Bean
Type of the statistics | Character string (character string output in a header file) | Remarks |
---|---|---|
Number of pooled instances | PooledInstanceCount.UpperBound | 0 is output when the maximum number of instances in a pool of Stateless Session Bean is unlimited. |
PooledInstanceCount.LowerBound | -- | |
PooledInstanceCount.HighWaterMark | -- | |
PooledInstanceCount.LowWaterMark | -- | |
PooledInstanceCount.Current | -- | |
Number of used instances in the pool | ActivePooledInstanceCount.UpperBound | 0 is output when the maximum number of instances in a pool of Stateless Session Bean is unlimited. |
ActivePooledInstanceCount.LowerBound | This string will become invalid and -1 is output, since you cannot set a lower limit. | |
ActivePooledInstanceCount.HighWaterMark | -- | |
ActivePooledInstanceCount.LowWaterMark | -- | |
ActivePooledInstanceCount.Current | -- | |
Number of pending requests | WaitingRequestCount.HighWaterMark | -- |
WaitingRequestCount.LowWaterMark | -- | |
WaitingRequestCount.Current | -- |
This section describes the information output to a statistics file of a Message-driven Bean. In a statistics file of Message-driven Bean, you can investigate the statistics of Message-driven Bean.
Table 3-15 Contents output to a statistics file of a Message-driven Bean
Type of the statistics | Character string (character string output in a header file) | Remarks |
---|---|---|
Number of pooled instances | PooledInstanceCount.UpperBound | 0 is output when the maximum number of instances in a pool of Message-driven Bean is unlimited. |
PooledInstanceCount.LowerBound | -- | |
PooledInstanceCount.HighWaterMark | -- | |
PooledInstanceCount.LowWaterMark | -- | |
PooledInstanceCount.Current | -- | |
Number of used instances in the pool | ActivePooledInstanceCount.UpperBound | 0 is output when the maximum number of instances in a pool of Message-driven Bean is unlimited. |
ActivePooledInstanceCount.LowerBound | This string will become invalid and -1 is output, since you cannot set a lower limit. | |
ActivePooledInstanceCount.HighWaterMark | -- | |
ActivePooledInstanceCount.LowWaterMark | -- | |
ActivePooledInstanceCount.Current | -- | |
Number of messages received | MessageCount.Count | -- |
This section describes the information output to a statistics file of a DB Connector. In the statistics file of DB Connector, you can investigate the statistics of DB Connector.
When you are not using the connection pooling function, values other than the frequency of invoking the prepareStatement method (InvokedPrepareStatementMethodCount.Count) and frequency of invoking the PrepareCall method (InvokedPrepareCallMethodCount.Count) will be invalid, and -1 will be output.
Table 3-16 Contents output to the statistics file of a DB Connector
Type of the statistics | Character string (character string output in a header file) | Remarks |
---|---|---|
Number of PreparedStatement cached by the statement pooling function | PooledPreparedStatementCount.UpperBound#1 | The following values are output:
|
PooledPreparedStatementCount.LowerBound | This string will become invalid and -1 is output, since you cannot set a lower limit. | |
PooledPreparedStatementCount.HighWaterMark#1#2 | -- | |
PooledPreparedStatementCount.LowWaterMark#1#2 | -- | |
PooledPreparedStatementCount.Current#1#2 | -- | |
PooledPreparedStatementCount.Current#1#2#4 | -- | |
Number of CallableStatement cached by the statement pooling function | PooledCallableStatementCount.UpperBound#3 | The following values are output:
|
PooledCallableStatementCount.LowerBound | This string will become invalid and -1 is output, since you cannot set a lower limit. | |
PooledCallableStatementCount.HighWaterMark#2#3 | -- | |
PooledCallableStatementCount.LowWaterMark#2#3 | -- | |
PooledCallableStatementCount.Current#2#3 | -- | |
PooledCallableStatementCount.Current#2#3#4 | -- | |
Frequency of invoking the PrepareStatement method | InvokedPrepareStatementMethodCount.Count#2 | -- |
Frequency of invoking the PrepareCall method | InvokedPrepareCallMethodCount.Count#2 | -- |
Frequency of PreparedStatement hits cached by the statement pooling function | PooledPreparedStatementHitCount.Count#1#2 | -- |
Frequency of CallableStatement hits cached by the statement pooling function | PooledCallableStatementHitCount.Count#2#3 | -- |
This section describes the information output to a statistics file of a JCA resource. In the statistics file of a JCA resource, you can investigate the statistics of the JCA resource. However, if a connection pool is invalid or in the case of a root resource adapter, only the number of connection failures is output. For a member resource adapter, the statistics similar to that of a single resource adapter is output. If you are using the DB Connector for Cosminexus RM, the statistics is output to Cosminexus RM. The statistics is not output to the DB Connector for Cosminexus RM.
If the used resource adapter is compliant with the Connector 1.5 specifications, the statistics corresponding to the first connection definition (the first definition in ra.xml) is output. If the Outbound connection definition does not exist, the HJCAConnectionPoolStats statistics is not output.
Table 3-17 Contents output to the statistics file of a JCA resource
Type of the statistics | Character string (character string output in a header file) | Remarks |
---|---|---|
Number of pooled connections | PoolSize.UpperBound | -- |
PoolSize.LowerBound | -- | |
PoolSize.HighWaterMark | -- | |
PoolSize.LowWaterMark | -- | |
PoolSize.Current | -- | |
Number of used connections in the pool | ActivePoolSize.UpperBound | -- |
ActivePoolSize.LowerBound | This string will become invalid and -1 is output, since you cannot set a lower limit. | |
ActivePoolSize.HighWaterMark | A value might change temporarily using the command execution and the automatic regulation of number of connections functionality. | |
ActivePoolSize.LowWaterMark | ||
ActivePoolSize.Current | ||
Number of threads waiting for connection | WaitingThreadCount.UpperBound | This string will become invalid and -1 will be output, since you cannot set a upper limit. |
WaitingThreadCount.LowerBound | This string will become invalid and -1 is output, since you cannot set a lower limit. | |
WaitingThreadCount.HighWaterMark | -- | |
WaitingThreadCount.LowWaterMark | -- | |
WaitingThreadCount.Current | -- | |
Number of connection failures | FailedRequestCount.Count | When you are using DB Connector for Cosminexus RM, this character string is output to the Cosminexus RM. Normally, 0 is output to the DB Connector for Cosminexus RM. |
This section describes the information output to the statistics file of a transaction service. In the statistics file of a transaction service, you can investigate the statistics of the transaction service.
Table 3-18 Contents output to the statistics file of a transaction service
Type of the statistics | Character string (character string output in a header file) |
---|---|
Number of settled transactions | CompletionCount.Count |
Number of rolled back transactions | RolledbackCount.Count |
This section describes the information output to the statistics file of a Web application. You can investigate the statistics of the entire target Web application in a Web application statistics file.
Table 3-19 Contents output to the statistics file of a Web application
Type of the statistics | Character string (character string output in a header file) | Remarks |
---|---|---|
Maximum number of concurrently executing threads | ActiveThreadCount.UpperBound#1#2 | -- |
ActiveThreadCount.LowerBound#3 | -- | |
ActiveThreadCount.HighWaterMark#1 | -- | |
ActiveThreadCount.LowWaterMark#1 | -- | |
ActiveThreadCount.Current#1 | -- | |
Number of pending requests for Web applications | WaitingRequestCount.UpperBound#1#2#4 | -- |
WaitingRequestCount.LowerBound#3#4 | -- | |
WaitingRequestCount.HighWaterMark#1 #4 | -- | |
WaitingRequestCount.LowWaterMark#1 #4 | -- | |
WaitingRequestCount.Current#1 #4 | -- | |
Number of entire pending requests for Web applications | WholeWaitingRequestCount.UpperBound#1 #4 | -- |
WholeWaitingRequestCount.LowerBound#1 #4 | -- | |
WholeWaitingRequestCount.HighWaterMark#1 #4 | -- | |
WholeWaitingRequestCount.LowWaterMark#1 #4 | -- | |
WholeWaitingRequestCount.Current#1 #4 | -- | |
Number of requests exceeding the upper limit of the number of requests pending for Web applications | OverflowRequestCount.Count#1 | -- |
Number of received requests | RequestCount.Count#4 | The number of requests received by a Web container for a Web application is output. The number of pending requests for Web applications is also counted. The number of requests received by a Web server but not transferred to the Web container is not counted. |
Number of responded requests | ResponseCount.Count | -- |
Number of sessions | SessionCount.UpperBound | If upper limit of the number of sessions is not set, this string becomes invalid and -1 is output. |
SessionCount.LowerBound#3 | -- | |
SessionCount.HighWaterMark | -- | |
SessionCount.LowWaterMark | -- | |
SessionCount.Current | -- |
This section describes the information output to the statistics file of a Web container. You can investigate the statistics of a running Web application in a statistics file of a Web container.
Table 3-20 Contents output to the statistics file of a Web container
Type of the statistics | Character string (character string output in a header file) |
---|---|
Maximum number of concurrently executing threads | ActiveThreadCount.UpperBound |
ActiveThreadCount.LowerBound#1 | |
ActiveThreadCount.HighWaterMark#2 | |
ActiveThreadCount.LowWaterMark#2 | |
ActiveThreadCount.Current#2 | |
Number of pending requests for Web containers or default pending requests | WaitingRequestCount.UpperBound#3 |
WaitingRequestCount.LowerBound#1#3 | |
WaitingRequestCount.HighWaterMark#4 | |
WaitingRequestCount.LowWaterMark#4 | |
WaitingRequestCount.Current#4 | |
Number of entire pending requests for Web containers | WholeWaitingRequestCount.UpperBound#5 |
WholeWaitingRequestCount.LowerBound#5 | |
WholeWaitingRequestCount.HighWaterMark#5 | |
WholeWaitingRequestCount.LowWaterMark#5 | |
WholeWaitingRequestCount.Current#5 | |
Number of requests exceeding the upper limit of the number of requests pending for Web containers | OverflowRequestCount.Count#3 |
This section describes the information output to a statistics file of a URL group. You can investigate the statistics of a URL group in a statistics file of a URL group.
Table 3-21 Contents output to the statistics file of a URL group
Type of the statistics | Character string (character string output in a header file) |
---|---|
Maximum number of concurrently executing threads | ActiveThreadCount.UpperBound#1 |
ActiveThreadCount.LowerBound#2 | |
ActiveThreadCount.HighWaterMark | |
ActiveThreadCount.LowWaterMark | |
ActiveThreadCount.Current | |
Number of pending requests for URL groups | WaitingRequestCount.UpperBound#3 |
WaitingRequestCount.LowerBound#2#3 | |
WaitingRequestCount.HighWaterMark#3 | |
WaitingRequestCount.LowWaterMark#3 | |
WaitingRequestCount.Current#3 | |
Number of requests exceeding the upper limit of the number of requests pending for URL groups | OverflowRequestCount.Count |
Number of received requests | RequestCount.Count#4 |
Number of responded requests | ResponseCount.Count |
All Rights Reserved. Copyright (C) 2013, Hitachi, Ltd.
