This section gives an overview of the execution environment of batch applications.

A batch application is a Java application with the implemented batch processing. The execution environment of batch applications is an environment used for executing batch applications. The execution environment is configured from a batch server that is a JavaVM process of the resident type. With Application Server, you execute the batch applications on the batch server by using commands. You can concurrently execute only one batch application on a batch server.

With batch servers, batch services are provided as the functionality to execute batch applications. If you execute a batch execution command (cjexecjob command), the batch service starts the execution of batch applications based on information of the batch applications. If you execute a batch forced stop command (cjkilljob command), the batch service forcefully stops batch applications being executed. If you execute a batch list display command (cjlistjob), the batch service outputs information of batch applications.

You can integrate the execution environment of batch applications with JP1/AJS. You can execute a batch application from JP1/AJS by defining the batch execution command as a JP1/AJS job in advance. You can also define the batch forced stop command as a JP1/AJS job.

The following figure shows the flow of executing batch applications.

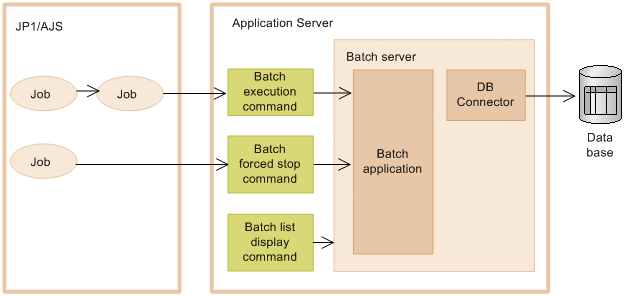

Figure 2-1 Flow of executing batch applications

Organization of this section

2.2.1 Systems executing batch applications

2.2.2 Procedure for operating batch servers and batch applications

2.2.3 Setup and operation of the batch application execution environment

2.2.4 Using multibyte characters
