Appendix E.22 Recovery when an error occurs in a CJMSP resource adapter

The following figure shows the procedure for recovery when an error occurs in a CJMSP resource adapter.

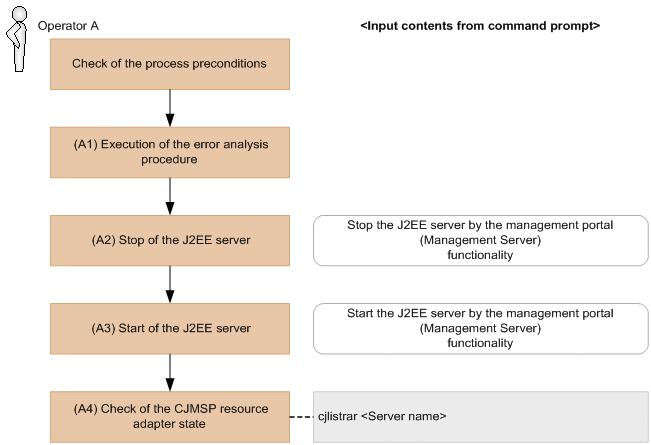

Figure E-21 Procedure for recovery when an error occurs in a CJMSP resource adapter

[Figure]

Organization of this subsection: (1) Process preconditions; (2) Information and supplementary explanation required for execution

(1) Process preconditions

The J2EE server process is running.
The CJMSP resource adapter is running.
The CJMSP Broker process is running.
The application is not running.

(2) Information and supplementary explanation required for execution

The coding, such as (A1), corresponds to the coding in the figure.

(A1): See Appendix E.19 Analysis of errors in the CJMSP resource adapters, and analyze the error.

(A2): No specific value.

(A3): No specific value.

(A4)

server-name: Server name set up with Management Server; Make sure that running CJMSP-resource-adapter-display-name is displayed.
