• The J2EE server process is running.
• The CJMSP resource adapter is running.
• The CJMSP Broker process is running.
• The application is running.

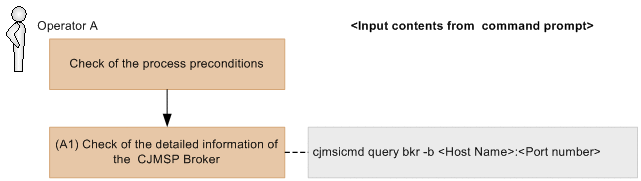

The coding, such as (A1), corresponds to the coding in the figure.

(A1)

host-name:port-number

The host name and port number on which CJMSP Broker is running.

If you omit the port number when CJMSP Broker is started, the default port number 7676 is used. In this case, you can omit the -b option.

An example of display is as follows:

Instance Name cjmsbroker Primary Port 7676 Broker is Embedded false Instance Configuration/Data Root Directory D:\Hitachi\CC\cjmsp\var Current Number of Messages in System 843 Current Total Message Bytes in System 177030 Current Number of Messages in Dead Message Queue 0 Current Total Message Bytes in Dead Message Queue 0 KDAN34295-I Successfully queried the broker.
