In this configuration, you allocate one CJMSP resource adapter and CJMSP Broker at a time. Allocate CJMSP Broker on the same computer as the J2EE server or on a different computer. The persistence messages and management information managed by CJMSP Broker are managed using files.

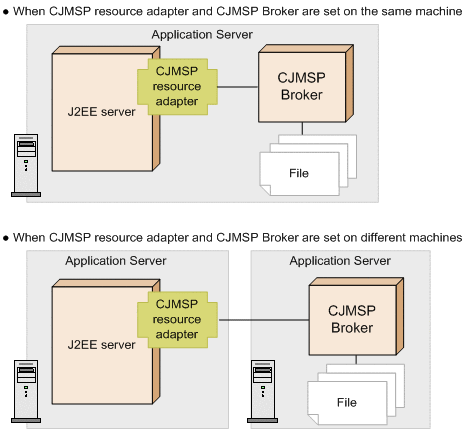

The following figure shows a configuration in which one CJMSP Broker is allocated to one CJMSP resource adapter.

Figure 7-3 Configuration in which one CJMSP Broker is allocated to one CJMSP resource adapter
