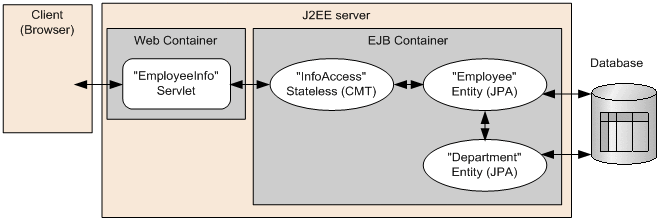

Following figure shows the configuration of JPA sample program. In this sample program, the program acquires the employee information and updates the data. Employee information cannot be newly registered or deleted from the database table. The program detects the optimistic lock, if databases change during the processing of the find method to flush the method that is executed on clicking the Update button

Figure M-32 Configuration of JPA sample program

The program accesses the servlet by using the Web browser and displays the execution result on the browser. This sample program calls Stateless Session Bean from the servlet and operates the database by using JPA of Bean.

The following table describes the configuration contents of JPA sample program:

Table M-3 Configuration contents of JPA sample program

Item	Contents
Type of Enterprise Bean	Stateless Session Bean
Transaction	CMT
Entity Manager	Container management
Type of transaction	JTA
Persistent context	Scope of transaction

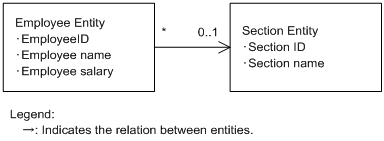

The following figure shows the configuration of sample program entity.

Figure M-33 Configuration of entities

As shown in the figure, the sample program uses unilateral ManyToOne in the relation between entities. Only the Employee entity class is concretized and the Department entity is used as the internal value of Employee entity. The optimistic lock functionality is implemented in both the entities.

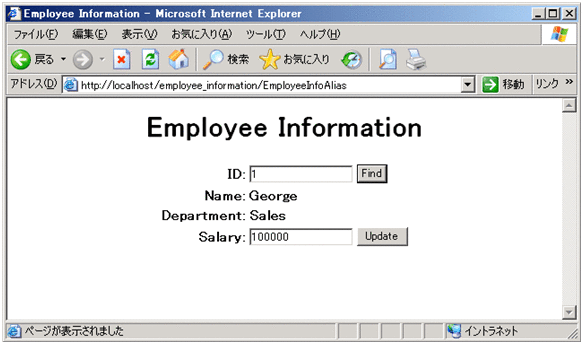

Following figure shows the execution example of the sample program

Figure M-34 Execution example of JPA sample program

The following are the operations in this window:

1. Enter the employee ID in ID and click the Find button.
   Employee information is displayed.
   You can specify 1~5 of the data registered in the ID column of JPA_SAMPLE_EMPLOYEE table, in Employee ID. For the data registered in the JPA_SAMPLE_EMPLOYEE table, see (2)(h) Executing SQL. If the entered value does not match the corresponding Employee ID, a message is displayed in the dialog box.

2. Change the employee salary displayed in Salary and click the Update button.
   The changed employee salary is registered in the database. If the changed value is invalid or if there is no value in Salary, the following process is executed:

   • If the changed value is invalid
     The message is displayed on the window.

   • If there is no value in Salary
     Process is executed considering 0 as the entered value.


No process is executed even if you click the Find or Update button without entering a value in [ID].

The following procedure describes the method of executing the sample program:

(a) Setting the J2EE server

See Appendix M.1(1) Setting the J2EE server.

(b) Customizing the J2EE server

See Appendix M.1(2) Customizing the J2EE server.

(c) Starting the J2EE server

See Appendix M.1(3) Starting the J2EE server.

(d) Setting the resource adapter

The resource adapter must be set to connect this sample program to the database. Set a value other than "NoTransaction" in the transaction support level in the Connector property file to enable the usage of JTA transaction. For the method of setting the resource adapter, see Appendix M.1(4) Setting the resource adapter.

(e) Setting the persistence.xml

Change the following tags of persistence.xml provided in the sample:

• <jta-data-source> tag
  Specify the reference of data source set in the resource adapter.

• <property> tag
  Specify the cosminexus.jpa.target-database in accordance with the operating environment. "Oracle" is set in the sample.


(f) Compiling the application

Compile the sample programs by using a batch file (compile.bat) provided in the sample. This batch file creates EJB-JAR file (employeeinfo.jar), WAR file (employeeinfo.war), and EAR file (employeeinfo.ear).

(g) Deploying the application

Use the batch file (deployApp.bat) provided in the sample to deploy the application. See Appendix M.1(5) Importing, setting and starting the application.

(h) Executing SQL

Execute the SQL in the SQL file (createTable_Oracle.sql, createTable_HiRDB.sql) provided in the sample. Execute SQL to remove, and add the JPA_SAMPLE_EMPLOYEE table and JPA_SAMPLE_DEPARTMENT table. The configuration and registration data of each table is as follows:

• JPA_SAMPLE_EMPLOYEE table
  The JPA_SAMPLE_EMPLOYEE table stores the employee information. The configuration and registration data of JPA_SAMPLE_EMPLOYEE table is as follows:


  Configuration of JPA_SAMPLE_EMPLOYEE Table

  Column name	Explanation
  ID#1	Employee ID
  NAME	Employee name
  DEPARTMENT_ID#2	Department ID
  SALARY	Employee salary
  EMPLOYEE_VERSION	Column to be used by the optimistic lock functionality

  #1 PK (Primary key)

  #2 FK (Foreign key)




  Registration data of JPA_SAMPLE_EMPLOYEE table

  ID	NAME	DEPARTMENT_ID	SALARY	EMPLOYEE_VERSION
  1	George	1	100000	1
  2	John	1	200000	1
  3	Thomas	1	300000	1
  4	James	2	400000	1
  5	Andrew	2	500000	1

• JPA_SAMPLE_DEPARTMENT table
  JPA_SAMPLE_DEPARTMENT table stores the department information. The configuration and registration data of JPA_SAMPLE_DEPARTMENT table is as follows:


  Configuration of JPA_SAMPLE_DEPARTMENT table

  Column name	Explanation
  DEPARTMENT_ID#	Department ID
  DEPARTMENT_NAME	Department name
  DEPARTMENT_VERSION	Column used by the optimistic lock functionality

  #: PK (Primary key)




  Registration data of JPA_SAMPLE_DEPARTMENT Table

  DEPARTMENT_ID	DEPARTMENT_NAME	DEPARTMENT_VERSION
  1	Sales	1
  2	Human resource	1

(i) Executing the application

Start the browser and specify the following string in the URL:

http://Machine-name: Port-number/ContextRoot/EmployeeInfo.html

If the in-process HTTP server is available, the following URL is specified by default:

http://localhost/employee_information/EmployeeInfo.html

(j) Undeploying the application

See Appendix M.1(6) Stopping and deleting the application

(k) Stopping the J2EE server

See Appendix M.1(7) Stopping the J2EE server

This sample program provides also the O/R mapping file (orm.xml). Since this program uses annotation, it does not use the O/R mapping file. Even if the sample program is compiled by using the batch file provided in the sample; the O/R mapping file is not stored in JAR file.

Note the following when using the O/R mapping file:

• You must store the O/R mapping file under the META-INF of JAR file. To store the O/R mapping file in EJB-JAR file (employeeinfo.jar) by using a batch file (compile.bat) provided in the sample, store orm.xml in the META-INF directory below the DD directory and change the compile script as follows. Changes are displayed in bold.


  Before change

  %JAR% cvf jar/EmployeeInfo.jar -C DD META-INF/persistence.xml -C classes employeeinfo

  After change

  %JAR% cvf jar/EmployeeInfo.jar -C DD META-INF/persistence.xml -C DD META-INF/orm.xml -C classes employeeinfo

• You can overwrite the O/R mapping file with the settings specified in annotation. You can specify partially, and can also overwrite and add the mapping information.
