10.4 Work flow from development to actual operation

The following figure shows the work flow from development to actual operation of a system that uses the service platform.

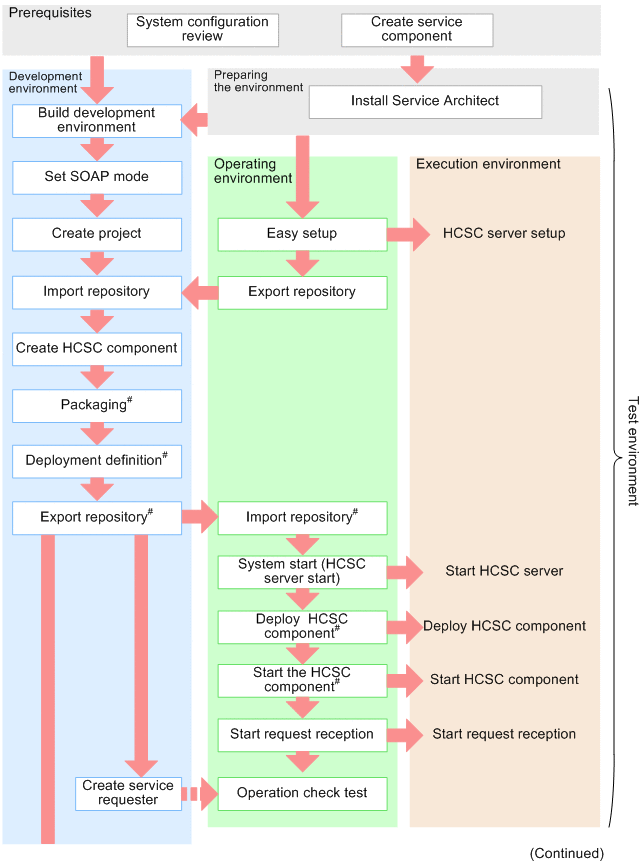

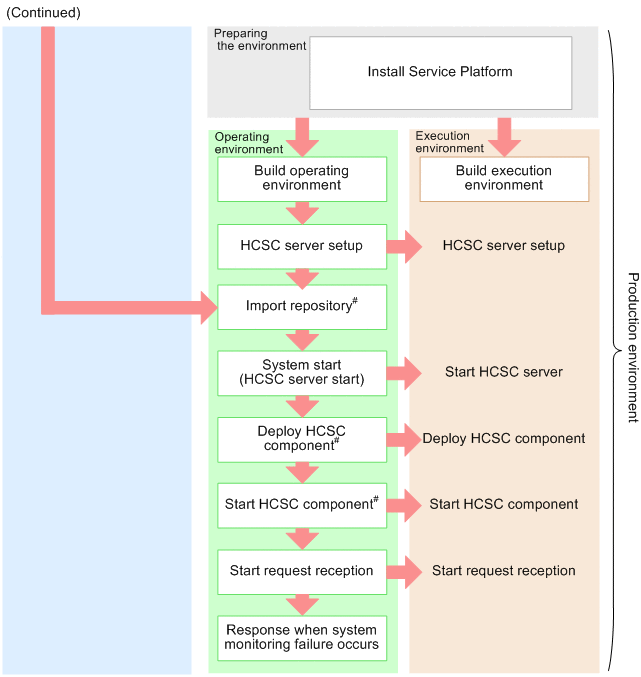

Figure 10-13 Work flow from development to actual operation

[Figure]

[Figure]

#
You can also execute these operations in a batch in a development environment. However, you can execute a batch operation only during system development or from the time of a unit test to the time of the join test. For details, see 7.5 Batch execution of processes for deploying HCSC components on the HCSC Server and then starting in the BPM/ESB Service Platform Basic Development Guide.

After the prerequisite preparation, perform the operations necessary for the development environment, operating environment, and execution environment of the service platform.

For details about the operations necessary for a development environment, see the BPM/ESB Service Platform Basic Development Guide and BPM/ESB Service Platform Reception and Adapter Definition Guide. For details about the operations necessary for an operating environment and execution environment, see the Setup and Operation Guide.
