uCosminexus Application Server Overview
The service platform consists of a development environment, operating environment, and execution environment. The service platform connects with the network and configures the system. We recommended building the development environment, operating environment, and execution environment on separate machines.
The following figure shows each environment to be built with the service platform, and the hardware configuration:

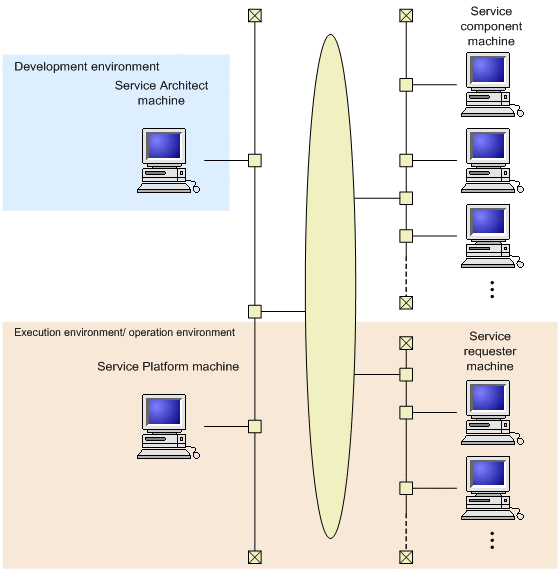

Figure 10-10 Configuration of each environment and hardware
You can build the development environment on a different network as well.
Note that, in execution and operating environments, you can configure a cluster combining two HCSC servers and build a system with a redundant and highly reliable configuration.
The following figure shows each environment when a cluster is configured to combine HCSC servers and hardware configurations:

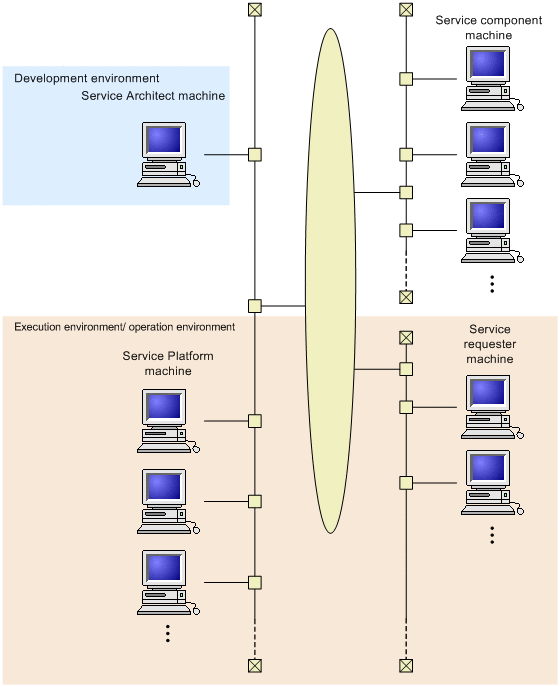

Figure 10-11 Each environment and hardware configuration (When configuring a cluster combining HCSC servers)
You can also build a development environment in a different network.
For details on systems in which a cluster configuration is used, see 1.4.1 Redundant configuration of HCSC server in which load-balancing functionality is used in the manual BPM/ESB Service Platform Overview.
