uCosminexus Application Server Overview
You can manage the execution status of process instances of a business process as the execution history.
To manage a business process's execution status, you set up the business process so that execution status information for its process instances is saved (persistence) to the database.
Manage the execution history, and if an error occurs while invoking a service to be executed from a business process, you can use the execution history to perform retry from the service in which the error has occurred. You can retry one by one or in a batch.
The next figure shows the management functions for the process instance execution log.

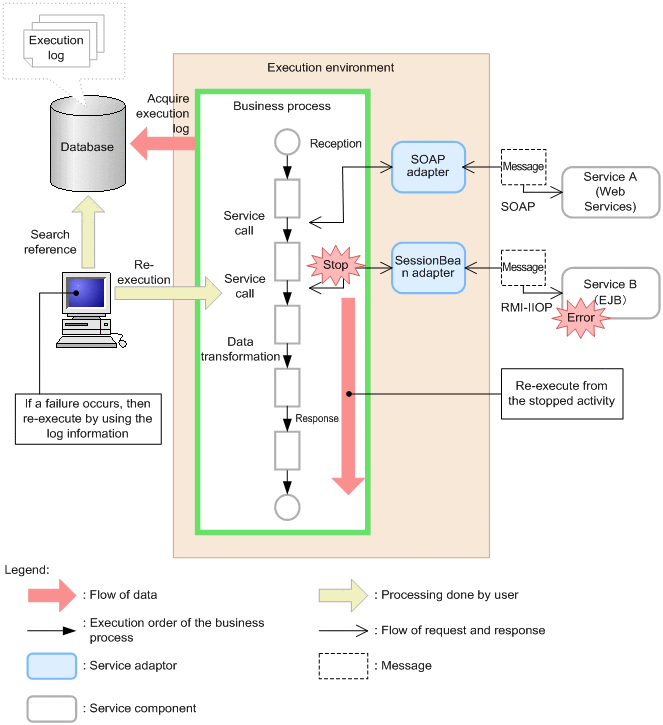

Figure 9-20 Functionality for managing the execution history of process instances
For searching the execution history, you can use the mutual relation set, start date, or status as a search key. You can also reference the format of a message that flows through the business process.
From the contents of the execution history, you can make business processes visible, such as optimum planning of the whole system to learn about the operation processes of each service and to analyze the acquired operation status.
