The service platform provides a custom adapter development framework to execute service components in a system that uses a protocol not supported by the following service adapters:
You can use the general custom adapter, which is a combination of the provided custom adapter development framework and protocol converter, to call and execute a service component.

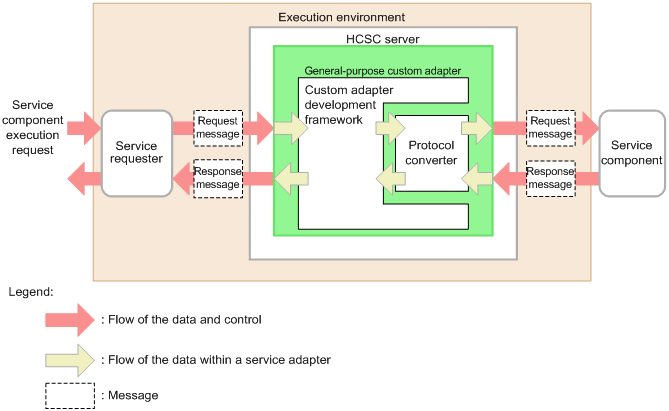

The following figure shows an overview of executing a service component from the general custom adapter.
Figure 9-19 Execution of a service component from the general custom adapter
The service requester (application that sends execution requests (request messages) for services to the HCSC server) receives an execution request for a service component, and then sends a request message to the general custom adapter.
The general custom adapter that received the request executes the processing defined in the adapter (data transformation and protocol conversion) to allow connection to an arbitrary system. The general customer adapter then sends a request message to the service component, and executes the service component.
