9.6.9 Message Queue adapters

With the Service Platform, you can send and receive messages for the existing message queue (IBM WebSphere MQ system) from Message Queue adapters. The following figure shows a summary of message transmission and reception using a Message Queue adapter.

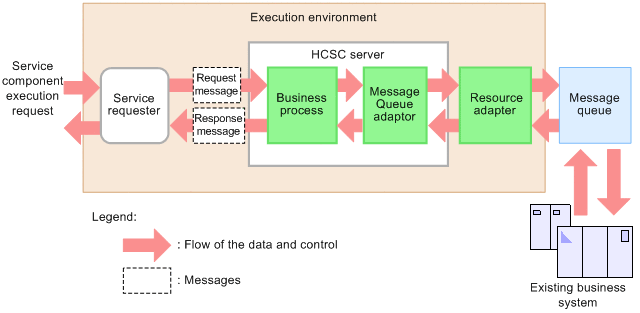

Figure 9-14 Message queue control from Message Queue adapters

[Figure]

When using an existing message queue, you can invoke a Message Queue adapter from a business process to send and receive messages and to browse.
