9.5.1 Standard reception

Standard reception is a function included in HCSC server. Standard reception has synchronous reception (Web service/SessionBean) and, asynchronous reception (MDB (WS-R)/MDB (DB queue)). When standard reception is started, request message from service requester can be received.

The following figure shows an overview of receiving request message from service adapter with standard reception and executing service component:

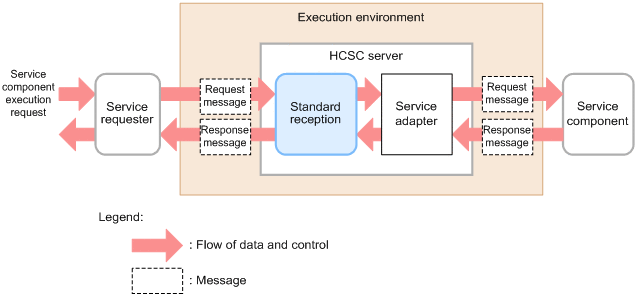

Figure 9-4 Flow for receiving request message and executing service component (in case of standard reception)

[Figure]

Unlike other reception, standard reception does not require user to define the reception independently. If you create service requesters in accordance with each standard reception format, you can use them as is. However, when you reuse an existing service requester, if service requester does not match the standard reception interface format then, you are required to modify or recreate service requester.
