Job Management Partner 1/Software Distribution Client Description and User's Guide

11.2.1 Configuration of the Packaging window

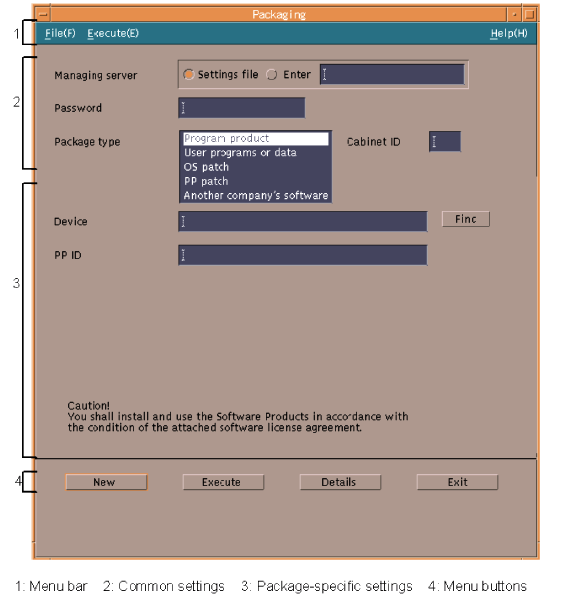

Figure 11-2 shows the configuration of the Packaging window.

Figure 11-2 Configuration of the Packaging window

The Packaging window is for specifying a minimum set of information necessary for packaging. Depending on the software type selected as Package type in the common settings area, the items displayed in the package-specific settings area vary. The menus and buttons are the same for both cases.

Table 11-1 describes the menu options of the Packaging window. Table 11-2 describes the functions of the buttons.

Table 11-1 Menu options of the Packaging window

Main menu	Submenu	Function	Button
File	New	Resets the window to the initial status.	New
	Open	Displays the information stored in the packaging-information file.	--
	Save	Overwrites the information for packaging displayed in the window.	--
	Save As	Saves the information for packaging displayed in the window with a new name.	--
	Exit	Exits from the GUI for packaging.	Exit
Execute	Packaging	Executes packaging using the information displayed in the window.	Execute
Help	Version	Displays the version information of JP1/Software Distribution Client	--

Legend:

--: There is no applicable button.

Table 11-2 Buttons in the Packaging window

Button	Function
New	Resets the window to the initial status.
Execute	Executes packaging using the information displayed in the window.
Details	Displays the Packaging Details dialog box to set detailed information for packaging.
Exit	Exits from the GUI for packaging.
