Job Management Partner 1/Software Distribution Client Description and User's Guide

rdsdlv

The rdsdlv command displays distribution status.

Description

1. Displays the distribution status.
2. Deletes the distribution status.

Format

1. Displaying the distribution status

   • For systems other than HP-UX

   rdsdlv{-c|-l}
   [-a distribution-destination-name[distribution-destination-name...]]
   [-e distribution-status[distribution-status...]]
   [-r full-package-ID[full-package-ID...]]
   [-n serial-job-number-in-managing-server[serial-job-number-in-
   managing-server...]]

   • For HP-UX

   /opt/NETMDMWEX1/bin/rdsdlv {-c|-l}
   [-a distribution-destination-name[distribution-destination-name...]]
   [-e distribution-status[distribution-status...]]
   [-r full-package-ID[full-package-ID...]]
   [-n serial-job-number-in-managing-server[serial-job-number-in-
   managing-server...]]

2. Deleting the distribution status

   • For systems other than HP-UX

   rdsdlv -d
   [-a distribution-destination-name[distribution-destination-name...]]
   [-e distribution-status[distribution-status...]]
   [-r full-package-ID[full-package-ID...]]
   [-n serial-job-number-in-managing-server[serial-job-number-in-
   managing-server...]]

   • For HP-UX

   /opt/NETMDMWEX1/bin/rdsdlv -d
   [-a distribution-destination-name[distribution-destination-name...]]
   [-e distribution-status[distribution-status...]]
   [-r full-package-ID[full-package-ID...]]
   [-n serial-job-number-in-managing-server[serial-job-number-in-
   managing-server...]]

Options

-a distribution-destination-name

In distribution-destination-name, specify the name of a distribution-destination system you want to display or delete.

-c

Specify this option when you want a simplified display of distribution status. The following items are displayed:

• Distribution destination name
• Packager type code
• Cabinet ID
• Package ID
• Version
• Generation number
• Job type
• Installation timing
• Installation method
• Distribution status
  The distribution status has the following options:
  KEEPING: The job file was successfully received.
  KEEP: The package was successfully stored.
  KEEP-ERROR: Storing the package failed.
  CLT-START: The client successfully started.
  CLT-START-ERROR: Starting the client failed.
  INS-WAIT: The package is waiting to be installed.
  INS-REFUSE: The package was refused.
  GEN-START: The generator started.
  COMPLETE: Execution completed.
  ERROR: Execution failed.
  SETUP-ERROR: Setup failed.
  LINE-DOWN: A communication error occurred.


-d

Specify this option when you want to delete the contents of the distribution status file.

-e distribution-status

Use one of the following alphabetic characters to specify the distribution status to be displayed or deleted.

R

Completion of receiving a job file (KEEPING)

K

Completion of storing a package (KEEP)

P

Failure to store a package (KEEP-ERROR)

C

Completion of activating a client (CLT-START)

L

Failure to activate a client (CLT-START-ERROR)

I

Waiting for installation (INS-WAIT)

D

Rejecting installation (INS-REFUSE)

G

Activating a generator (GEN-START)

F

Execution completed (COMPLETE)

E

Execution failed (ERROR)

S

Setup failed (SETUP-ERROR)

T

Communication error occurred (LINE-DOWN)

-l

Specify this option when you want a detailed display of distribution status. When you specify this option, the following items can be displayed in addition to the items you can display using the -c option:

• Execution status
• Serial job number in the managing server
• Prerequisite version of the installed package

-n serial-job-number-in-managing-server

In serial-job-number-in-managing-server, specify the serial number, in the managing server, for the job you want to display or delete.

-r full-package-ID

In full-package-ID, specify the full package ID for the package you want to display or delete. The format of full package IDs is: packager-type-code.group-name.package-ID.version/revision.generation-number

Display format

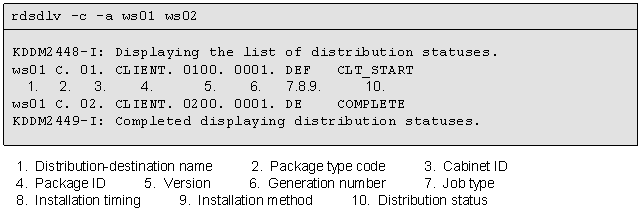

• Simplified display of distribution status (by specifying the -c option)

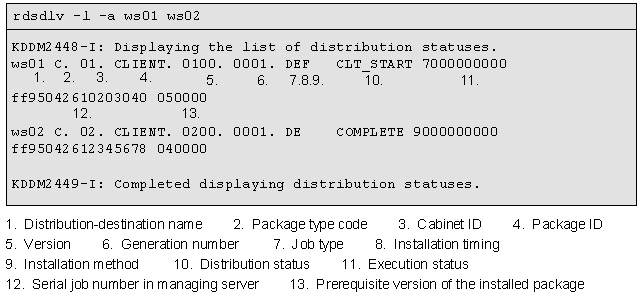

• Detailed display of distribution status (by specifying the -l option)




End code

End code	Meaning
0	Terminated normally.
1	Interface is incorrect. Alternatively, the user who issued the command is not a superuser.
2	System error occurred.
99	Command processing terminated because of signal reception.
253	Access error of the distribution situation file occurred.
254	The distribution status server facility does not run.
255	Error other than the above occurred.

Note

Execute the rdsdlv command when the distribution status server facility is running.
