8.2.2 JP1 Events issued by the generator tools

Table 8-8 shows JP1 events issued by the generator tools.

Table 8-8 JP1 event list (generator tools)

Event ID Event name When the event is issued
00010701 Error/installation start event If an error, severe error, or warning error occurs.
00010702 Function execution event When any of the following occurs:
  • The generator tools startup.
  • The generator tools stop.
  • Installation stops.
  • A startup UAP starts.
  • A startup UAP stops.
  • Resource deletion starts.
  • Resource deletion stops.

The following explains the contents of each type of JP1 event issued by the generator tools. In addition, Severity is set as both an extended attribute and a main attribute at the JP1 events issued for JP1/Base. The severity of each event is displayed in the viewer of the integrated console.

Organization of this subsection
(1) Installation start event
(2) Function execution event
(3) Examples of messages output to the event log file

(1) Installation start event

Table 8-9 shows attributes of installation start events.

Table 8-9 Attributes of installation start events.

Attribute type Item Attribute name Contents
Main attribute Event ID -- 00010701
Message -- --
Detailed information -- None
Extended attribute Common information Severity SEVERITY Error/severe error/warning error: ERROR
Installation start: NOTICE
Object type OBJECT_TYPE COMMAND
Object name OBJECT_NAME JP1/Software Distribution Client
Product name PRODUCT_NAME /HITACHI/JP1/NETMDM
Occurrence type OCCURRENCE Error/severe error/warning error: END
Installation start: NOTICE

Legend:
--: Not applicable.

(2) Function execution event

Table 8-10 shows attributes of function execution events.

Table 8-10 Attributes of function execution events

Attribute type Item Attribute name Contents
Main attribute Event ID -- 00010702
Message -- --
Detailed information -- None
Extended attribute Common information Severity SEVERITY NOTICE
Object type OBJECT_TYPE COMMAND
Object name OBJECT_NAME JP1/Software Distribution Client
Product name PRODUCT_NAME /HITACHI/JP1/NETMDM
Occurrence type OCCURRENCE Generator tools stop/installation stop/startup UAP stop/resource deletion stop: END
Generator tools start/startup UAP start/resource deletion start: START

Legend:
--: Not applicable.

(3) Examples of messages output to the event log file

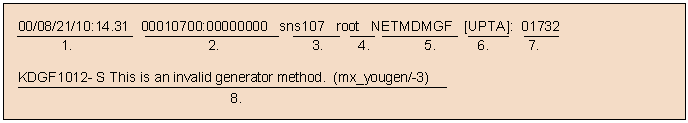

The following shows an example of a generator tool message that is output to the event log file.

[Figure]

  1. This item indicates the date/time when the message was logged.
  2. This item indicates the event ID of the generator tools.
  3. This item indicates the host name of the UNIX machine where the generator tools were started.
  4. This item indicates the ID of the user who started the generator tools.
  5. This item indicates program name. In this example, this item indicates that the message was output from the generator tools.
  6. This item indicates the ID code for the command where the error occurred. One of the following codes is output:
    YGEN: yougen (the main command of the generator tools)
    UPTA: rdsupt (command for installing packages based on the schedule)
    UDEL: rdsupdel (command for cooperative command deletion)
  7. This item indicates ID of the process that invoked the command.
  8. This item indicates a message.
