8.1.1 Overview of the automatic action

If an error occurs in the local system, automatic actions are executed as shown in Figure 8-1.

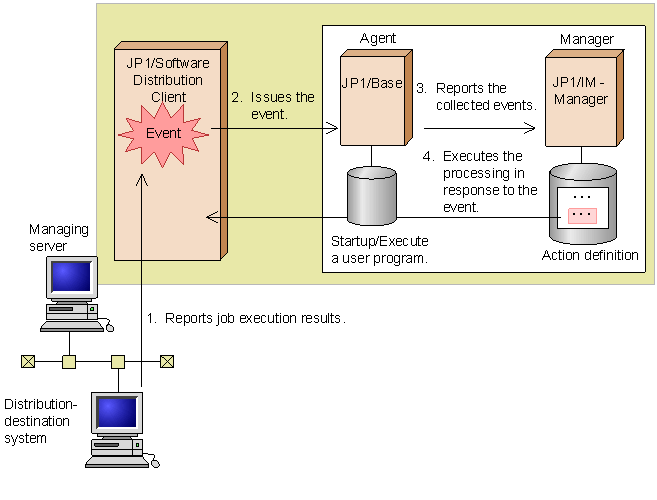

Figure 8-1 Flow of processing for automatic actions using job completion events

[Figure]

  1. The distribution-destination system reports job execution results to the managing server using either the result-reporting file or the status information file.
  2. JP1/Software Distribution Client issues a JP1 event associated with that information.
  3. JP1/Base collects the JP1 events issued by JP1/Software Distribution Client and reports them to JP1/IM - Manager.
  4. After receiving the JP1 event, JP1/IM - Manager automatically processes an (action) based on the action definition for that event. This function is called automatic action.
