6.3.7 Examples of operating environment setup

This subsection shows configurations of a JP1/Software Distribution system, and provides setup examples for the machines in the system for each configuration.

Organization of this subsection

(1) Setup example for connection to a UNIX or Windows managing server

(2) Setup example for using JP1/Software Distribution Client as the managing server

(3) Setup example for using firewalls

(1) Setup example for connection to a UNIX or Windows managing server

Figure 6-5 shows an example system configuration for connection to a UNIX or Windows managing server. Figure 6-6 shows the environment settings for this configuration.

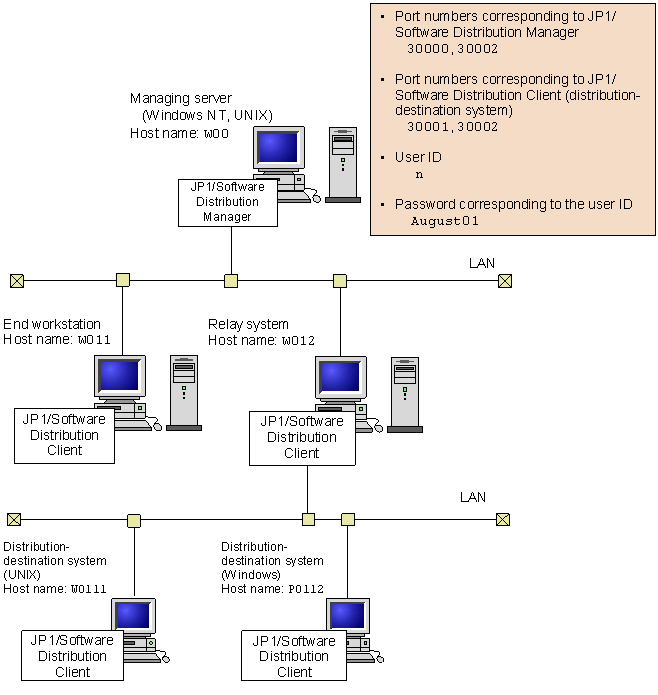

Figure 6-5 System configuration for connection to a UNIX or Windows managing server

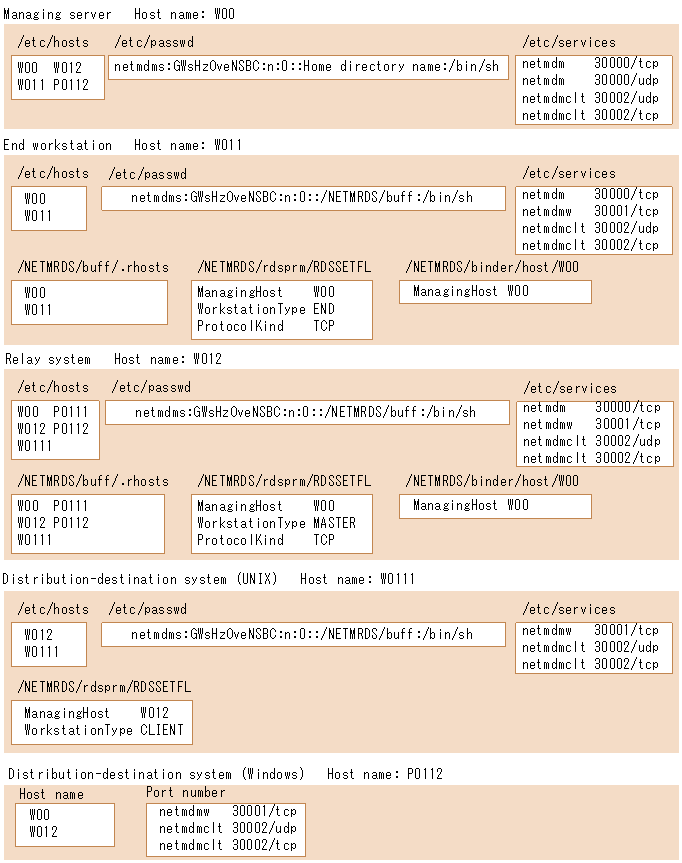

Figure 6-6 Example environment settings for connection to a UNIX or Windows managing server

(2) Setup example for using JP1/Software Distribution Client as the managing server

Figure 6-7 shows an example system configuration for using JP1/Software Distribution Client as the managing server. Figure 6-8 shows the environment settings for this configuration.

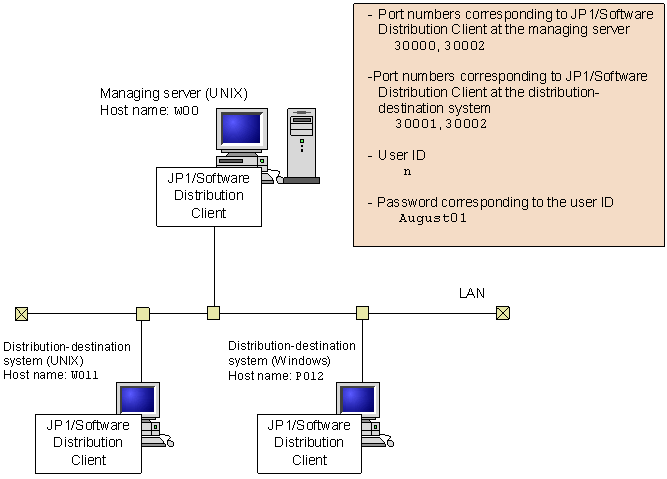

Figure 6-7 System configuration for using JP1/Software Distribution Client as the managing server

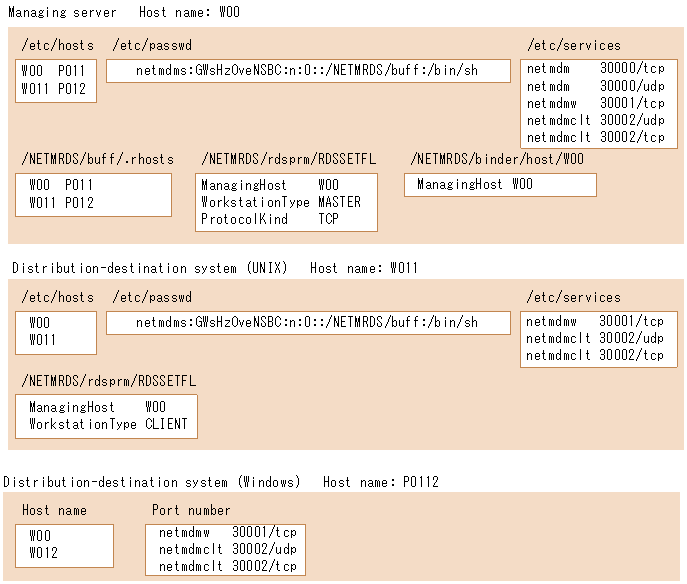

Figure 6-8 Example environment settings for using JP1/Software Distribution Client as the managing server

(3) Setup example for using firewalls

Figure 6-9 shows an example system configuration with firewalls between the managing server and relay system. Figure 6-10 shows the environment settings for this configuration. The example uses Gauntlet for the firewalls.

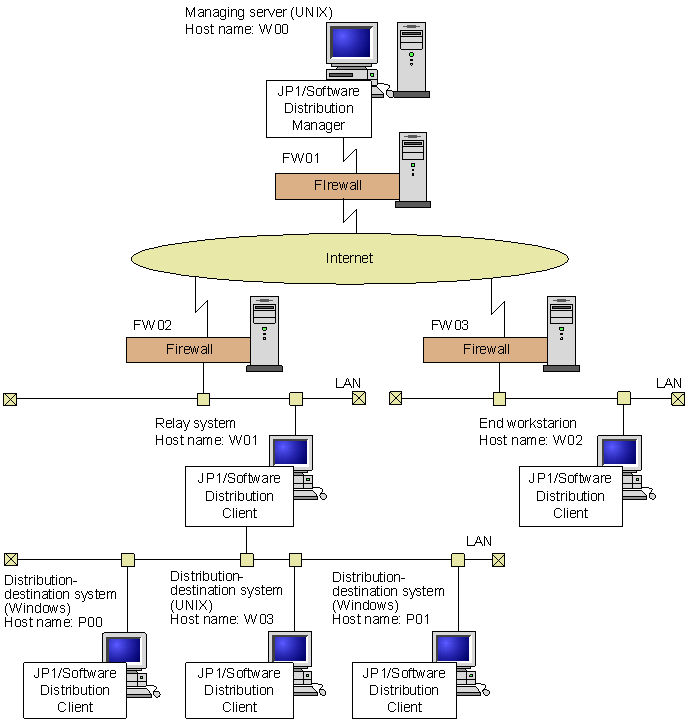

Figure 6-9 System configuration for connection to firewalls

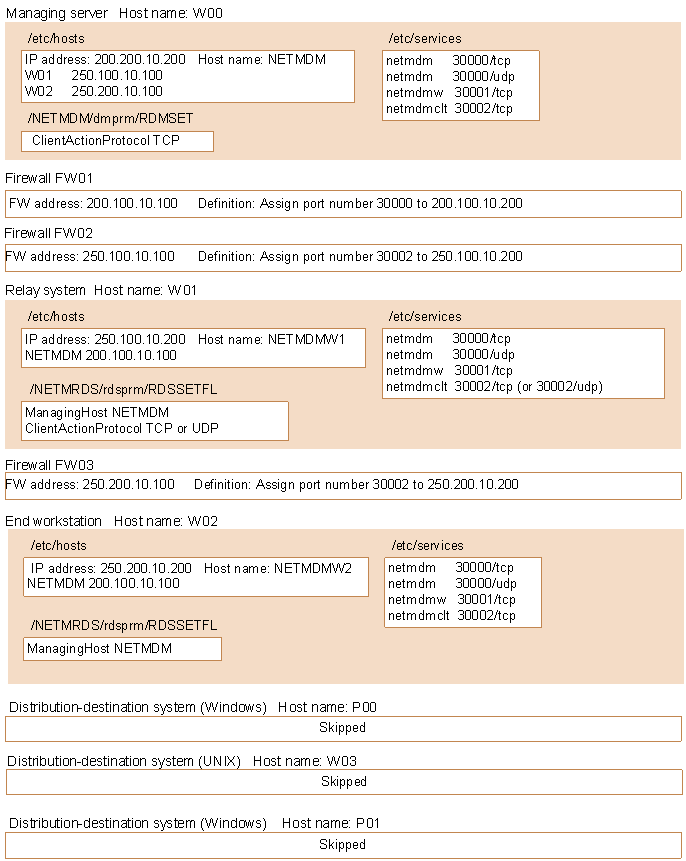

Figure 6-10 Example environment settings for connection to firewalls
