2.2.3 Packaging procedure

You can package a resource from JP1/Software Distribution Client in two ways:

By command

By using the GUI

How to register the software by using a command

Create and register a file (packaging-information file) which specifies attribute information (package attribute) such as the name of the software to be registered, and the installation method during distribution.

If the registration target is a shared package, before registration, you must create and register an installation script file that describes the procedure for installing software on the Windows machine. The installation script file can also be created or edited in the managing server. If an installation script file has been created in the managing server, you do not need to create this file during packaging.

To register Hitachi program products or register user programs and user data to be distributed to machines whose OS is the same as the OS of the registration source, use the rdsft command. To register another company's software, register OS patches, or register user programs and user data to be distributed to machines whose OS differs from the OS of the registration source, use the rdscm command. The rdscm command can also register user programs and user data to be distributed to machines whose OS is the same as the OS of the registration source.

Hitachi program products and another company's software can only be distributed to machines whose OS is the same as the OS of the registration source.

How to register software through the GUI

You can register software by GUI operations only. However, whether or not to register it as a shared package cannot be selected. User data and user programs will be registered as a shared package.

This section explains procedures for registering software using commands. For details on packaging operations using GUI, see 11. GUI Operations for Packaging in PART 3.

Organization of this subsection

(1) Registering Hitachi program products

(2) Registering another company's software

(3) Registering the user data and user programs

(1) Registering Hitachi program products

This subsection describes how to register Hitachi program products.

(a) Registration method

Use the rdsft command to register Hitachi program products. To specify attributes such as the model name of a program product or a cabinet ID, use the command options. To specify detailed attributes, create the packaging-information file before you register resources. For the method of creating the packaging-information file, see 2.2.4(1) Creating the packaging-information file. For some items, you can set default values in the settings files of the client services.

Table 2-1 lists the rdsft command options to be specified and the items to be specified in the packaging-information file when you register program products.

If an option of the rdsft command and the packaging-information file both specify the same item, the specification of the command option takes precedence. If the packaging-information file and the settings file both specify the same item, the specification of the packaging-information file takes precedence.

Table 2-1 Items to be specified when a Hitachi program product is registered

Item Specification method Default

rdsft command Packaging-information file Settings file

-k password Y -- -- --^#1

-C special-file-name ^#2 Y -- -- --

-s or -S registered-program-product-model ^#2 Y -- -- --

cabinet-ID-1 ^#2 Y Y -- --

-m managing-host-name Y -- -- --^#3

-Q Y -- -- --^#4

host-file-name Y Y -- Value in the settings file

packaging-information-file-name Y -- -- --

PPName ^#5 -- Y -- --

APafterGeneration -- Y -- --

APWatchTimer -- Y -- 300 seconds

InstallTiming -- Y -- EXECUTE

Compress -- Y Y NO

LifeofResource -- Y Y 1 day

Recover -- Y -- NO

BackupDataKeep -- Y -- 0 days

Legend:

Y: Specifiable.

---: Not specifiable or inapplicable.

#1

Requires the password.

#2

Mandatory.

#3

For -m managing-host-name, specify the host name of the relay system that is directly connected to the managing server if program products are registered via at least two relay systems. This item does not need to be specified if program products are registered from the end workstation, the relay system that is directly connected to the managing server, or the UNIX machine that is connected to such a relay system.

#4

Waits for the response from the user.

#5

Mandatory if -s is specified in the rdsft command.

If you want to register a Hitachi program product by using a special file that is not a system standard special file, you must define the special file in the special file definition file. For details on how to create the special file definition file, see 2.2.4(3) Setting the special file definition file.

(b) Note during registration

After execution of the register command (rdsft command), you cannot cancel the packaging. To make sure that the software is registered, execute the rdslst command after creation of the packaging-information file, and check the specified Hitachi program product.

The rdslst command, also allows you to confirm the Hitachi program products stored in a medium. For example, a CD-ROM may contain a Hitachi program product that is not licensed. Before registering a program product, use the rdslst command to check the stored Hitachi program products. Executing the rdslst command. Unmount the medium before. Execute the packaging with the CD-ROM also unmounted.

Item	Specification method	Default
rdsft command	Packaging-information file	Settings file
-k password	Y	--	--	--^#1
-C special-file-name ^#2	Y	--	--	--
-s or -S registered-program-product-model ^#2	Y	--	--	--
cabinet-ID-1 ^#2	Y	Y	--	--
-m managing-host-name	Y	--	--	--^#3
-Q	Y	--	--	--^#4
host-file-name	Y	Y	--	Value in the settings file
packaging-information-file-name	Y	--	--	--
PPName ^#5	--	Y	--	--
APafterGeneration	--	Y	--	--
APWatchTimer	--	Y	--	300 seconds
InstallTiming	--	Y	--	EXECUTE
Compress	--	Y	Y	NO
LifeofResource	--	Y	Y	1 day
Recover	--	Y	--	NO
BackupDataKeep	--	Y	--	0 days

(2) Registering another company's software

This subsection describes the formats of another company's software that can be distributed and the method for registering that software.

(a) Formats of another company's software that can be distributed

Table 2-2 describes the formats of another company's software that can be distributed by using JP1/Software Distribution.

Table 2-2 Formats of another company's software that can be distributed

OS Software format Software format example

HP-UX File formats that can be specified in the -s option of the swinstall command depot

Solaris File formats that can be specified in the -d option of the pkgadd command Solaris package format

AIX File formats that can be specified in the -d option of the geninstall command bff

If the OS command allows, you can specify a directory.

The following software of another company cannot be distributed:

Software that must be installed in the single-user mode, which is one of the OS operation modes

Software that requires the OS to be restarted during installation

(b) Registration method

To register another company's software, use the rdscm command with the -ISVSOFT option specified. Depending on the situation, you may need to perform the file creation tasks described below before registration:

Creating a packaging-information file

You can use command options to specify major attributes such as package ID and cabinet ID. However, if you want to specify more detailed attributes, you need to create a packaging-information file. For details on how to do this, see 2.2.4(1) Creating the packaging-information file.

Creating a response file

If you want to distribute another company's software that requires user responses during installation, you must specify the appropriate response file during packaging. A file that describes user responses is called a response file.

You can specify a response file in HP-UX and Solaris only. The following shows the command for creating the response file:

HP-UX: swask -c

Solaris: pkgask -r

For details on the response file, see the documentation for the OS.

Creating an installation management file

To distribute the Solaris version of another company's software, you need to specify an installation management file during packaging. The installation management file describes information needed during installation. For example, you may be able to indicate forced distribution by using the file.

For details on how to create the installation management file, see the documentation for the OS.

Table 2-3 lists the items that you can specify by using command options or a packaging-information file when registering another company's software. For some of the items, the default values can be specified using the settings file for the client services. If the same item is specified using more than one method, the order of precedence is command, package-information file, and settings file.

Table 2-3 Items to be specified when another company's software is registered

Item Means Default

rdscm command Packaging-information file Settings file

-ISVSOFT^#1 Y -- -- --

-k password Y -- -- --^#2

-d user-resource-path^#1 Y -- -- --

cabinet-ID^#1 Y Y -- --

package-ID Y Y -- Automatic generation

program-name Y Y -- Spaces^#3

version Y Y -- 000000^#3

generation Y Y -- 0000

host-file-name Y Y Y Value in the settings file

-m managing-host-name Y -- -- --^#4

-Q Y -- -- --^#5

packaging-information-file-name Y -- -- --

-N service-name Y -- -- --

-REBOOT Y -- -- --

-ISVRES response-file-name^#6 Y -- -- --

-ISVADM installation-management-file- name^#7 Y -- -- Default path for the -a option of the pkgadd command

UserName -- Y -- Spaces

Compress -- Y Y Value in the settings file

APbeforeGeneration -- Y -- --

APafterGeneration -- Y -- --

APWatchTimer -- Y -- 300 seconds

LifeofResource -- Y Y Value in the settings file

InstallTiming -- Y -- EXECUTE

Recover^#8 -- Y -- NO

Legend:

Y: Specifiable.

--: Not specifiable or inapplicable.

#1

Mandatory.

#2

Requires a password.

#3

If a package ID is not specified, it is automatically generated.

#4

Specify the host name of the relay system that is directly connected to the managing server if program products are to be registered via at least two relay systems. This item does not need to be specified if program products are registered from the end workstation, the relay system that is directly connected to the managing server, or the UNIX machine that is connected to such a relay system.

#5

Waits for a response from the user.

#6

This item can be specified for only the HP-UX or Solaris version of another company's software.

#7

This item can be specified for only the Solaris version of another company's software.

#8

This item can be specified for only the HP-UX version of another company's software.

(c) Automatic generation of package IDs

When you register another company's software without specifying the package ID, an OS command that acquires software information is executed to generate the package ID automatically. If you also omit specifying the program name and version, the command also automatically generates them.

The OS command used to acquire software information must be placed in a specific directory. Table 2-4 shows the command and the appropriate directory for each OS.

Table 2-4 OS command for acquiring software information and its directory

OS Command Directory for storing the command

HP-UX swlist /usr/sbin

Solaris pkginfo /bin

AIX geninstall /usr/sbin

The package ID, program name, and version are automatically generated from the software short name, software long name, and version information acquired by the OS command. Automatic generation uses the following rules to convert the acquired information:

Package ID

The string WUA- is prefixed.

Periods (.) and underscores (_) are converted to hyphens (-).

Lower-case letters are converted to the corresponding upper-case letters.

If the package ID has more than 44 characters, it is truncated following the 42nd character and two hyphens (--) are appended.

Program name

Periods (.) and underscores (_) are converted to hyphens (-).

Lower-case letters are converted to the corresponding upper-case letters.

If the program name has more than 50 characters, it is truncated following the 48th character and two hyphens (--) are appended.

Version

Periods (.) are deleted.

If the version has fewer than 7 characters, zeros (0) are appended to make the length 7 characters.

If the version has more than 7 characters, it is truncated following the 7th character.

OS	Software format	Software format example
HP-UX	File formats that can be specified in the -s option of the swinstall command	depot
Solaris	File formats that can be specified in the -d option of the pkgadd command	Solaris package format
AIX	File formats that can be specified in the -d option of the geninstall command	bff

Item	Means	Default
rdscm command	Packaging-information file	Settings file
-ISVSOFT^#1	Y	--	--	--
-k password	Y	--	--	--^#2
-d user-resource-path^#1	Y	--	--	--
cabinet-ID^#1	Y	Y	--	--
package-ID	Y	Y	--	Automatic generation
program-name	Y	Y	--	Spaces^#3
version	Y	Y	--	000000^#3
generation	Y	Y	--	0000
host-file-name	Y	Y	Y	Value in the settings file
-m managing-host-name	Y	--	--	--^#4
-Q	Y	--	--	--^#5
packaging-information-file-name	Y	--	--	--
-N service-name	Y	--	--	--
-REBOOT	Y	--	--	--
-ISVRES response-file-name^#6	Y	--	--	--
-ISVADM installation-management-file- name^#7	Y	--	--	Default path for the -a option of the pkgadd command
UserName	--	Y	--	Spaces
Compress	--	Y	Y	Value in the settings file
APbeforeGeneration	--	Y	--	--
APafterGeneration	--	Y	--	--
APWatchTimer	--	Y	--	300 seconds
LifeofResource	--	Y	Y	Value in the settings file
InstallTiming	--	Y	--	EXECUTE
Recover^#8	--	Y	--	NO

OS	Command	Directory for storing the command
HP-UX	swlist	/usr/sbin
Solaris	pkginfo	/bin
AIX	geninstall	/usr/sbin

(3) Registering the user data and user programs

(a) Registration method

Use the rdsft command to register user data and user programs. Use the rdscm command to register shared packages. Before registration, create the following files as required.

Creating the packaging-information file

You can specify attributes such as a package ID and cabinet ID in the command options. To specify detailed attributes, create a packaging-information file. For details on how to create this file, see 2.2.4(1) Creating the packaging-information file.

Creating the user resource path file

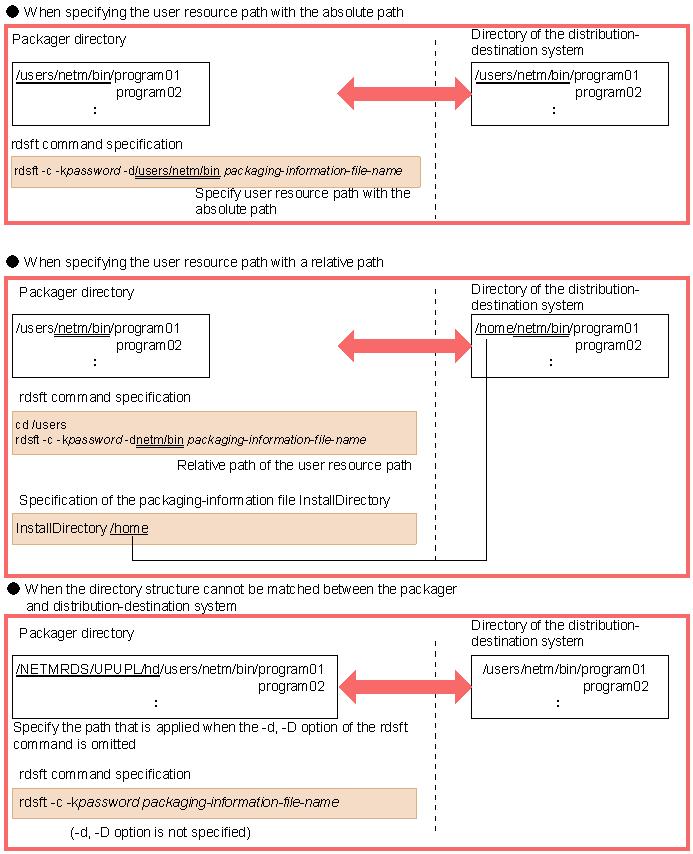

The directories and files for software where user data and user programs are to be registered are called the user resource paths. To register all software in different directories as a single unit of software, specify the user resource paths in a user resource path file.

For details on how to create the user resource path file, see 2.2.4(2) Creating the user resource path file.

Creating the installation script file

To register shared packages, create an installation script file. For details on how to create the installation script file, see 2.2.4(4) Creating the installation script file.

Table 2-5 lists the command options to be specified and the items to be specified in the packaging-information file when you register user data, user programs, and shared packages. For some items, you can set default values in the settings files of the client services.

If an option of the rdsft or rdscm command and the packaging-information file both specify the same item, the specification of the command option takes precedence. If the packaging-information file and the settings file both specify the same item, the specification of the packaging-information file takes precedence.

Table 2-5 Items to be specified when registering user data and user programs

Item Specification method Inheritance of specified items when packages are distributed to Windows clients Default

rdsft or rdscm command Packaging-information file Settings file

-k password S - - - A password is requested.

-d user-resource-path or -D user-resource-path-file-name S - - - A directory under
/NETMRDS/UPUPL/hd^#1

cabinet-ID^#2 S S - I -

package-ID^#2 S S - I -

program-name S S - I Blank

-m managing-host-name S - - - -^#3

-L installation-mode^#4 S - - I B

-Q S - - - A response from the user is waited.

-P installation-script-file-name^#4 S - - - The installation script file is not registered.

host-file-name S S - - Value in the settings file

packaging-information-file-name S - - - /NETMRDS/UPUPL/AC000000^#5

version S S - I 000000

prerequisite-version S S - NI Blank

generation-number S S - I 0000

owner-name - S - NI Blank

Generator - S - NI STANDARD

APbeforeGeneration - S - NI -

APafterGeneration - S - NI -

APWatchTimer - S - NI 300 seconds

Comments - S - NI Blank

InstallDirectory - S - NI / (root directory)

OwnerofInstallDirectory - S - NI User number 0

GroupofInstallDirectory - S - NI Cabinet number 3

ModeofInstallDirectory - S - NI 755

InstallTiming - S - I^#6 EXECUTE

Compress - S S NI NO

LifeofResource - S S I 1 day

Recover - S - NI NO

BackupDataKeep - S - NI 0 days

UAPBackupList - S - NI File with the name of the distributed package^#7

Legend:

S: Specifiable.

-: Not specifiable, inapplicable, or a value used only at registration.

I: Inherited by the Windows machine.

NI: Not inherited by the Windows machine.

#1

For HP-UX, a directory under /var/opt/NETMDMW/UPUPL/hd

#2

Mandatory.

#3

To register user data or user programs via two or more relay systems, specify the host name of the relay system that is directly connected to the managing server. This specification is unnecessary when registering user data or user programs from the end workstation, a relay system that is connected directly to the managing server, or from a UNIX machine that is directly connected to this relay system.

#4

Use the rdscm command to specify.

#5

Assumed if you do not specify the packaging-information file name, user resource path, and user resource path file specifications are omitted. For HP-UX, it will be /var/opt/NETMDMW/UPUPL/AC000000.

#6

In the distribution-destination system of Windows, installation is not executed at system stop.

#7

The backups of the file and the directory to be overwritten are acquired.

(b) Shared package attributes that can be inherited by the distribution-destination system

When the distribution-destination system inherits shared packages, it can inherit the following file attributes.

File name

File update time and date

Name of the user who owns the file

Cabinet ID which owns the file

Access privilege of the user who owns the file (read, write, and execute)

Access privilege of the cabinet who owns the file (read, write, and execute)

Access privilege of the other users and cabinets (read, write, and execute)

(c) Directory configuration of the packager and the distribution-destination system

Figure 2-2 shows the directory configuration of the packager and the distribution-destination system.

Figure 2-2 Directory configuration of the packager and the distribution-destination system

Item	Specification method	Inheritance of specified items when packages are distributed to Windows clients	Default
rdsft or rdscm command	Packaging-information file	Settings file
-k password	S	-	-	-	A password is requested.
-d user-resource-path or -D user-resource-path-file-name	S	-	-	-	A directory under /NETMRDS/UPUPL/hd^#1
cabinet-ID^#2	S	S	-	I	-
package-ID^#2	S	S	-	I	-
program-name	S	S	-	I	Blank
-m managing-host-name	S	-	-	-	-^#3
-L installation-mode^#4	S	-	-	I	B
-Q	S	-	-	-	A response from the user is waited.
-P installation-script-file-name^#4	S	-	-	-	The installation script file is not registered.
host-file-name	S	S	-	-	Value in the settings file
packaging-information-file-name	S	-	-	-	/NETMRDS/UPUPL/AC000000^#5
version	S	S	-	I	000000
prerequisite-version	S	S	-	NI	Blank
generation-number	S	S	-	I	0000
owner-name	-	S	-	NI	Blank
Generator	-	S	-	NI	STANDARD
APbeforeGeneration	-	S	-	NI	-
APafterGeneration	-	S	-	NI	-
APWatchTimer	-	S	-	NI	300 seconds
Comments	-	S	-	NI	Blank
InstallDirectory	-	S	-	NI	/ (root directory)
OwnerofInstallDirectory	-	S	-	NI	User number 0
GroupofInstallDirectory	-	S	-	NI	Cabinet number 3
ModeofInstallDirectory	-	S	-	NI	755
InstallTiming	-	S	-	I^#6	EXECUTE
Compress	-	S	S	NI	NO
LifeofResource	-	S	S	I	1 day
Recover	-	S	-	NI	NO
BackupDataKeep	-	S	-	NI	0 days
UAPBackupList	-	S	-	NI	File with the name of the distributed package^#7

[Contents][Back][Next]

[Trademarks]
