Job Management Partner 1/Asset Information Manager Administrator's Guide
To add a location:
- From the simple search condition, select the location following which a location is to be added.
No location can be added under Trash.
- Click the Add button.
The Add Location dialog box is displayed.
Items identified by a star () are mandatory.
- Location ID
Specifies a unique ID for each location. Only alphanumeric characters are permitted. Note that the alphabetic characters are not case-sensitive. This location ID must be different from that of Trash used to temporarily save the deleted locations. The location ID of Trash is set in the Server Setup dialog box. The default is 99999999.
For details about the settings in the Server Setup dialog box, see 5.3.4(5) Trash location ID for deletions in the Planning and Setup Guide.
- Local name
Specify a name for the location. Do not end the location name with a slash (/). A location that has the same name cannot be created more than once at the same level in the hierarchy.
To cancel, click the Close button.
- Click the Add button.
The location is added to the simple search condition based on the specified information.

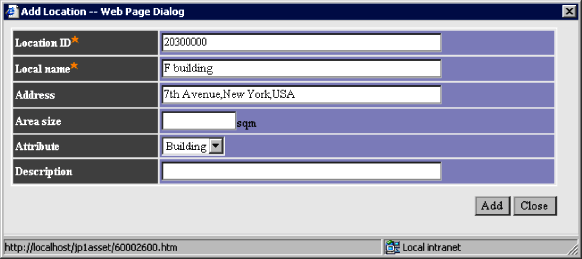

The following figure shows the Add Location dialog box in which information about a location to be registered is specified.
Figure 4-10 Add Location dialog box
