This subsection explains how to define a Table object inserted using Form Designer.
Use Table Designer to define the Table object that you chose from the Object menu of Form Designer and inserted. Table Designer is displayed when you select the Table object in the edit area and click the Table Designer button displayed under the object attribute.
The following figure shows Table Designer.

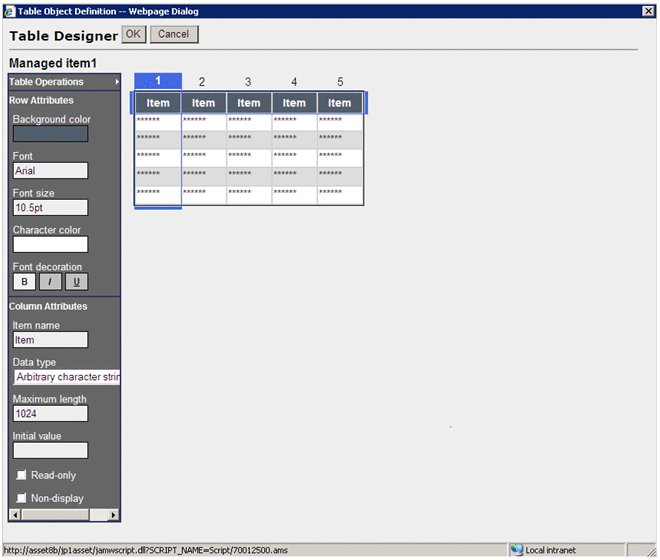

Figure 10-26 Table Designer
In Table Designer, you set the attribute of the items that constitute a table.
Click the OK button to save the Table object being edited and close Table Designer. Click the Cancel button to discard the Table object being edited and close Table Designer.
Click Table Operations to display a menu. Click the desired menu command and define rows and columns for the table. The following menu commands are displayed:
Click Row Attributes to define a row style. Selecting a row or column displays Row Attributes. The following styles can be defined:
Click Column Attributes to define an object attribute for each column. Selecting a row or column displays Column Attributes. The following object attributes can be defined:
Table 10-3 Initial values that can be set
Data type | Initial value that can be set |
---|---|
Group reference | Group of applied user |
User reference | Applied user name |
Date | Applied date |
Time | Applied time |
Other data type | Arbitrary |
Note that some object attributes cannot be set (displayed) depending on the data type. The following table shows the correspondence between data types and object attributes.
Table 10-4 Correspondence between data types and object attributes
Data type | Object attribute | ||||
---|---|---|---|---|---|
Maximum length | Initial value | Reference range | Maximum | Minimum | |
Arbitrary character string | Y | Y | N | N | N |
Alphabet | Y | Y | N | N | N |
Alphanumeric | Y | Y | N | N | N |
Group reference | N | Y | Y | N | N |
Location reference | N | N | N | N | N |
User reference | N | Y | Y | N | N |
Numeric | N | Y | N | Y | Y |
Date (YYYYMMDD) | N | Y | N | N | N |
Date (YYYYMM) | N | Y | N | N | N |
Date (MMDD) | N | Y | N | N | N |
Time (HHMMSS) | N | Y | N | N | N |
Time (HHMM) | N | Y | N | N | N |
