6.2.5 Displaying asset information from JP1/IM

You can view details by displaying the Problem Details dialog box corresponding to the selected JP1 event from the JP1/IM - Manager Event Console window.

To display the Problem Details dialog box:

  1. Select the JP1 event issued by Asset Information Manager in the JP1/IM - Manager Event Console window.
  2. Display the event details window.
  3. Click the Monitor button.
    The Problem Details dialog box is displayed.

The following figure shows the flow for displaying the Problem Details dialog box from the Event Console window.

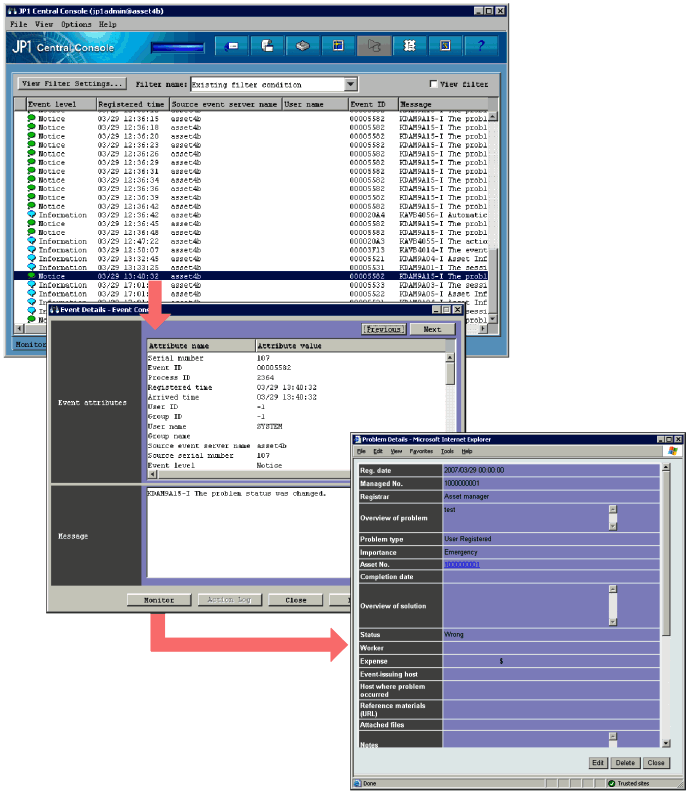

Figure 6-6 Flow for displaying the Problem Details dialog box

[Figure]

For information about operating the Event Console window, see the manual Job Management Partner 1/Integrated Management - Manager Reference.
